Steps
1. Slide and remove the SSD support bracket from the support bracket slot.
2. Depending on the type of solid-state drive (M.2 2230/ M.2 2242/ M.2 2280), align and insert the SSD support bracket into
the support bracket slot.
3. Install the solid-state drive.
Installing M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

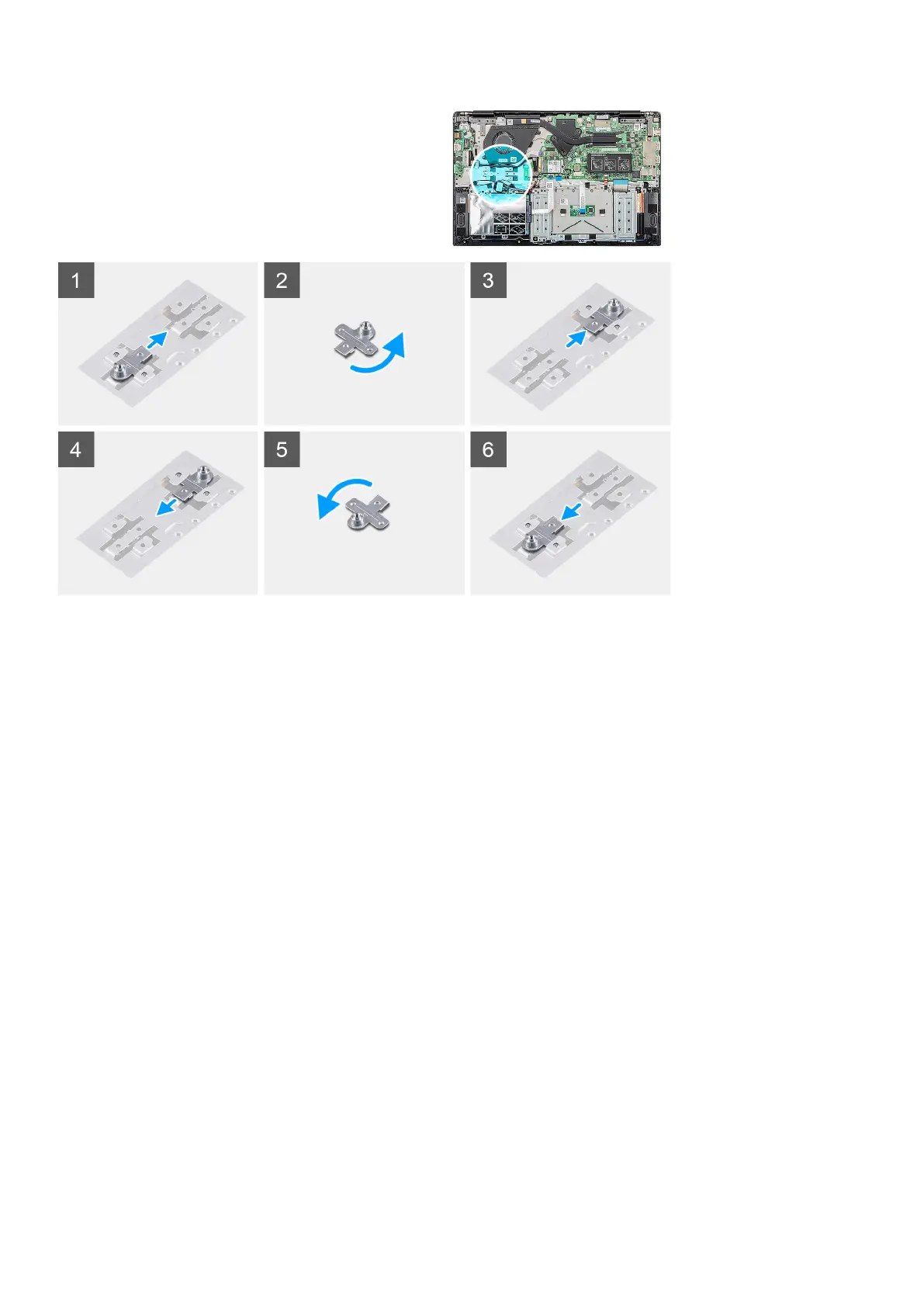

The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the installation
procedure.
Removing and installing components
23
