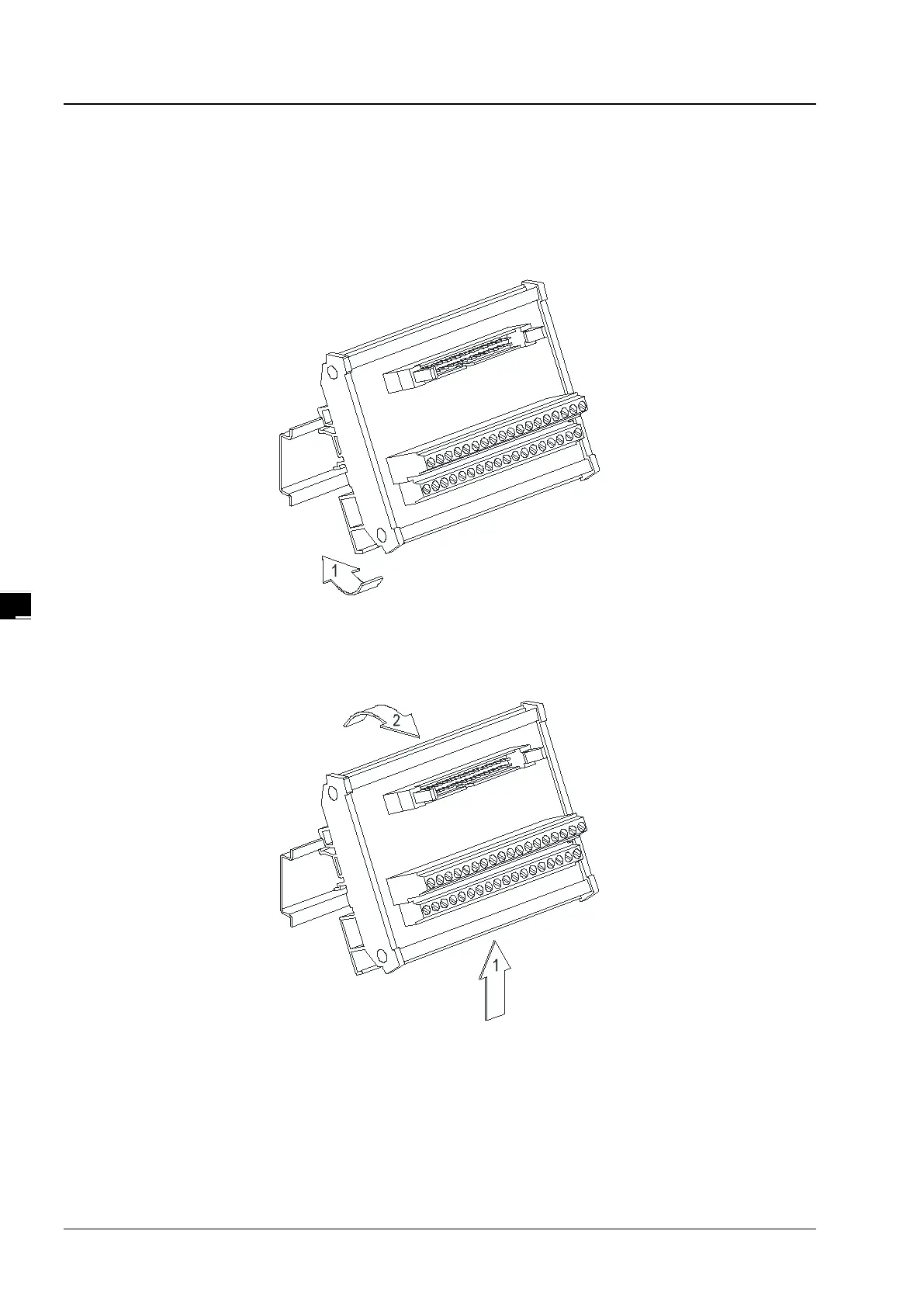

4.3.5 Installing an External Terminal Module
 Installation
1. One side of an external terminal module has to be fixed first.
2. Press the terminal module in the direction indicated by arrow 1, and make sure that the groove is combined with
the DIN rail.
 Removal
1. Push the terminal module in the direction indicated by arrow 1.
2. Pull the terminal module in the direction indicated by arrow 2.
4.3.6 Connecting Communication Cables
Plug a communication cable in the port on a Motion CPU module, and make sure that the connector of the cable is joined
to the port properly. RS-232 (USB), RS-485 (terminals on the backplane), CN1 and RJ45 cables could be used.
