Delta AH Motion Series User Manual

AH Motion – Hardware Manual
2-4
_2
2.1.2. AH500 Series Module Configuration
The AH Motion CPU rack consists of a motion backplane with a power supply module and a motion CPU. You can mount
additional AH500 series moudles to the right for different applications. The available modules include digital input/output
modules, analog input/output modules, network modules, and motion control modules.

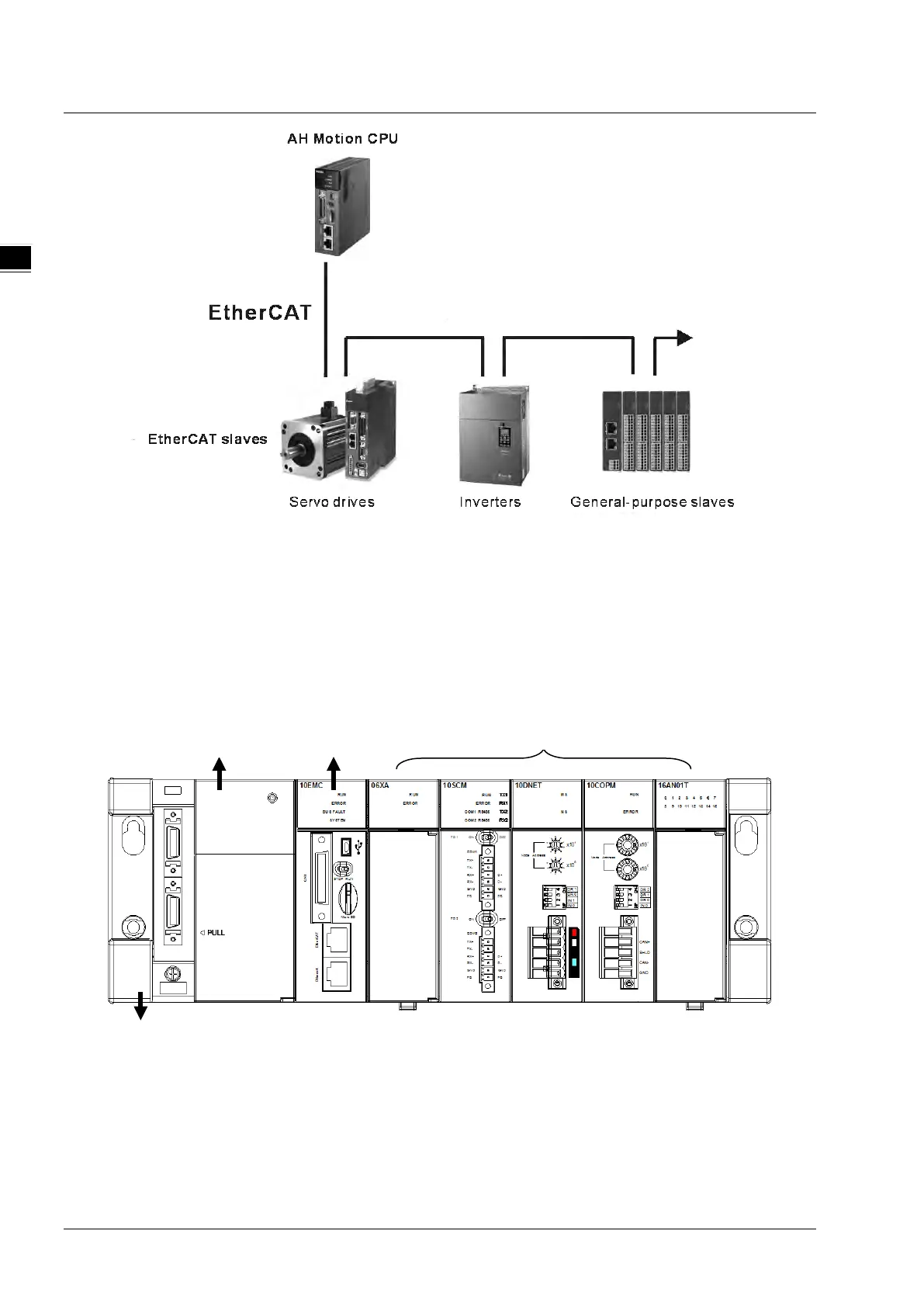

 AH Motion CPU Rack
A CPU module, a power supply module, and I/O modules are installed on a motion backplane.
AH500 series modules
AH Motion backplane
Powre supply module
AH Motion CPU
