Delta AH Motion Series User Manual

Chapter 3 Product Specifications
3-35
3_
Terminal Description
Response
characteristic
Rated input
Current
Voltage
terminals for counter 3 and counter 5.
 High-speed capture: The terminals can function
as trigger signals for high-speed captures.
 Interrupt inputs
Y0.8, Y0.9, Y0.10,
and Y0.11
1. The high-speed pulse output temrinals are transistors
whose collectors are open collectors.
2. The function of the terminals:
 High-speed comparison: The terminals can
function as high-speed comparison output
temrinals.
200 kHz 15 mA 24 V

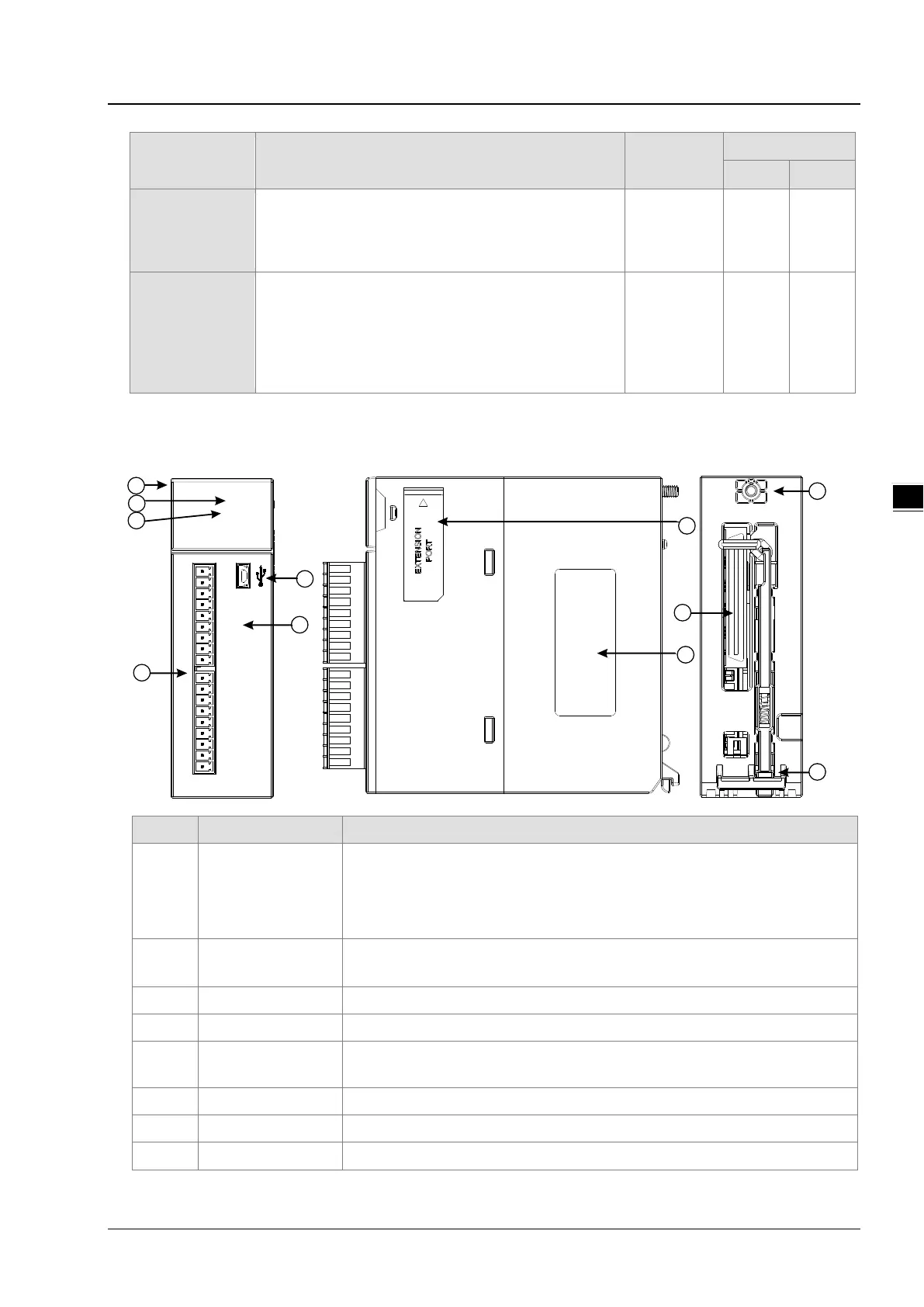

3.5.2 Profiles and Dimensions
 AH02HC-5A
1
4
8
7
5
2
3
6
9
11
10
02HC
ERROR
RUN
C0
Y0.8
Y0.9
C1
X0.8+
X0.8
-
X0.9+
X0.9
-
X0.10+
X0.10
-
X0.11+
X0.11
-
X0.0+
X0.0
-
X0.1
-
X0.1+
¡
¡
Number
Name
Description
1 Model name Model name of the module
2
RUN LED indicator
(green)
Operating status of the module
ON: The module is running.
OFF: The module stops running.
3
ERROR LED
indicator (red)
Error status of the module
Blinking: The module is abnormal.
4
USB port
Providing the mini USB communication interface
5 Terminals Input/Output terminals
6
Arrangement of the
input/output terminals
Arrangement of the terminals
7
Extension port
Updating the firmware
8
Label
Nameplate
9
Set screw
Fixing the module
