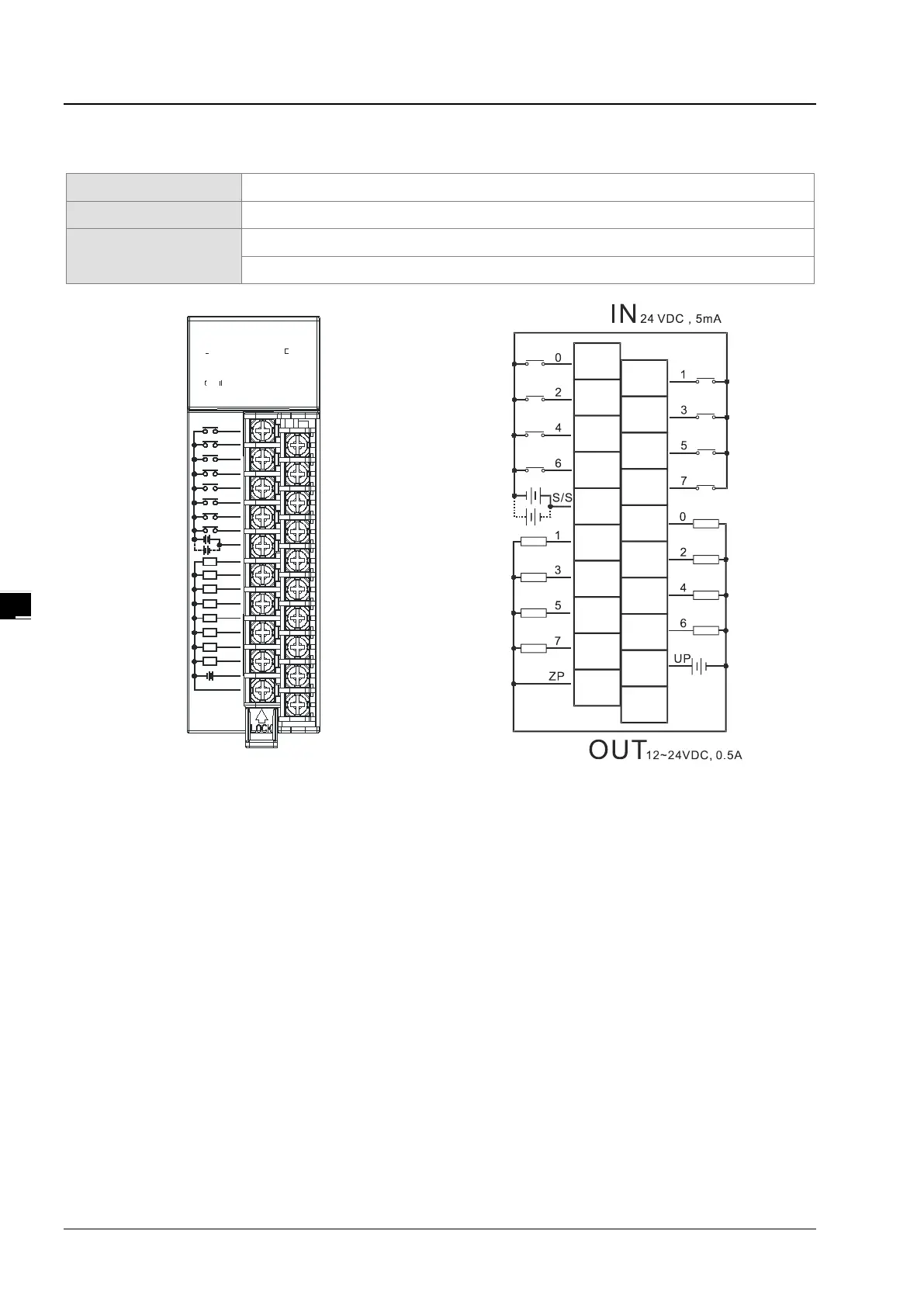

4.8.9 Wiring AH16AP11P-5A
Input form
Direct current (sinking or sourcing)
Input current
24 VDC, 5 mA
Output type
Transistor-P (sourcing)
Voltage specifications
12~24 VDC, 0.5 A
1
3
2
0
S/S
5
6
L
L
L
L
4
7
UP
ZP
L
L
L
L
24VDC 5mA
24VDC 0.5A
0
7
6
5
4
3
2
1
0
1 32 64
5 7
16AP11P
0 2 31 64
5 7
