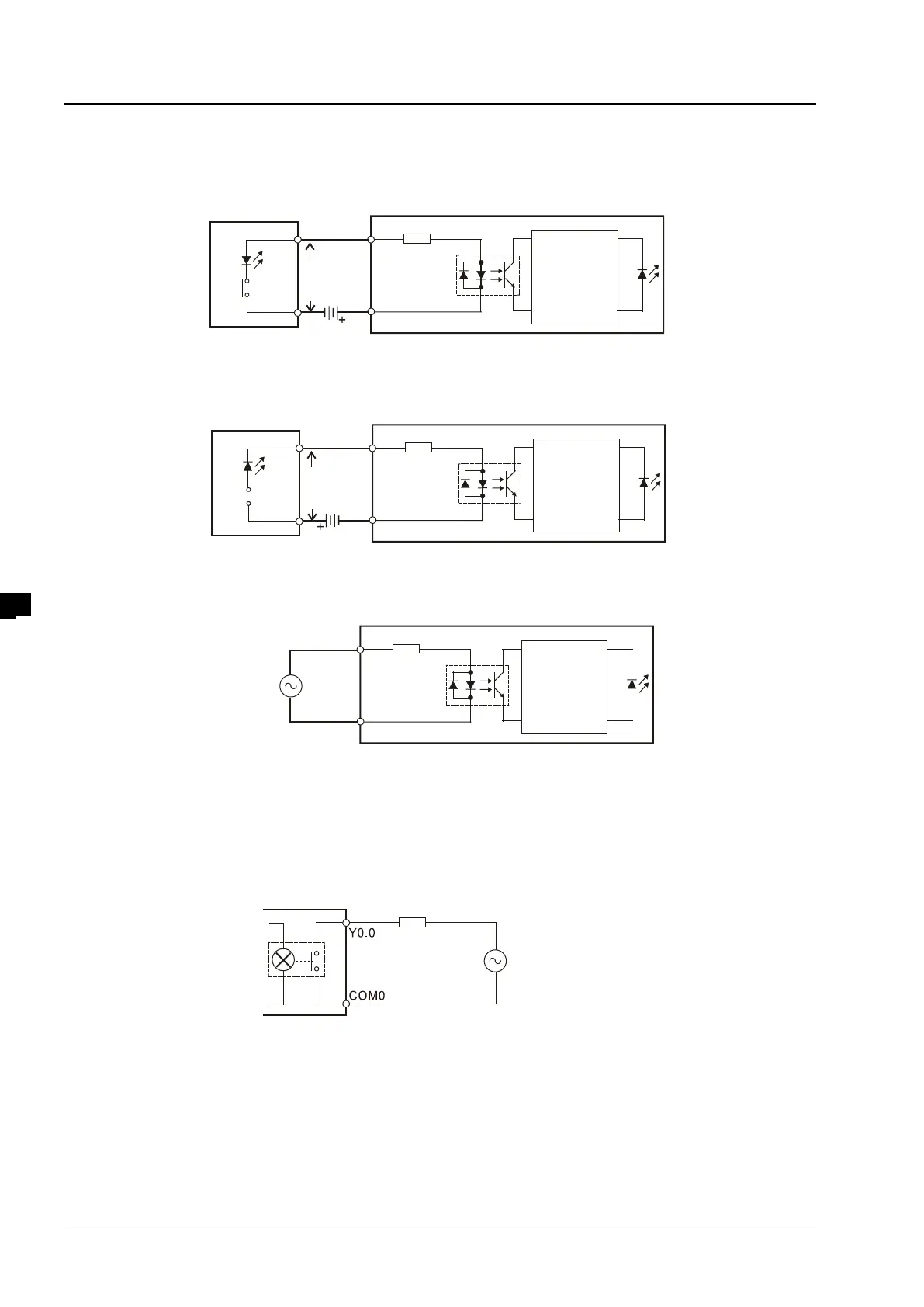

Optoelectronic Switch
 NPN(Sink)
Above
15 V DC
Optoelectronic switch
Internal
circuit
S/S
X0.0
I/O
24VDC
 PNP(Source)
Above
15 V DC
Optoelectronic switch
Internal
circuit
S/S
X0.0
I/O
24VDC
Voltage Input (120~240 VAC)
120/
240VAC
Internal
circuit
COM
X0.0
I/O
4.9.2 Wiring Digital Output Terminals
Output Circuits
There are three types of output units. They are relay outputs, transistor outputs, and TRIAC outputs.
1. Relay output
Load through which the
alternating current flows
AC power supply
I/O relay output
