Delta AH Motion Series User Manual

Chapter 3 Product Specifications
3-19
3_
3.3 AH Motion Backplane
3.3.1 General Specifications
 The specifications for the motion backplane
Model
Specifications
AHBP05M2-5A
Number of I/O slots
5
Applicable power supply module
AHPS05-5A, AHPS15-5A
Applicable input/output module
The AH500 series input/output modules can be installed.

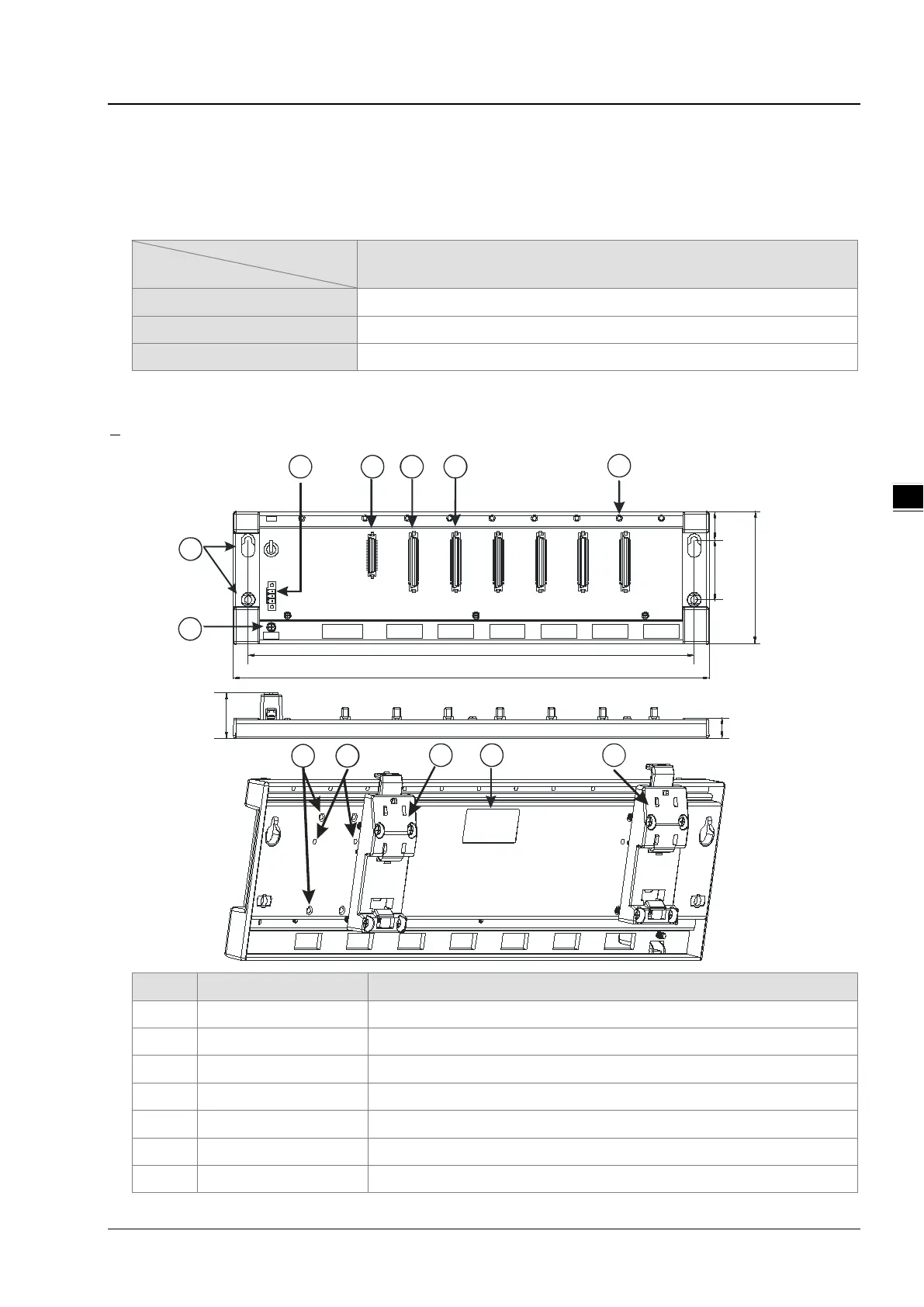

3.3.2 Profile and Dimensions
 Motion backplane: AHBP05M2-5A
1
4
5
110
49.5
23.6
16.7
37.7
328
303
2
8
9
10
8
3
7
1
6
Number
Name
Description
1
Mounting hole
Fixing the backplane
2
Connector
Connecting the backplane and a motion CPU module
3
Communication port
RS-485 communication port.
4
Connector
Connecting the backplane and a power supply module.
5
Connector
Connecting the backplane and an input/output module.
6 Label Model name and serial number
7
Screw hole for grounding
Screw hole for grounding
