Delta AH Motion Series User Manual

AH Motion – Hardware Manual
3-22
_3

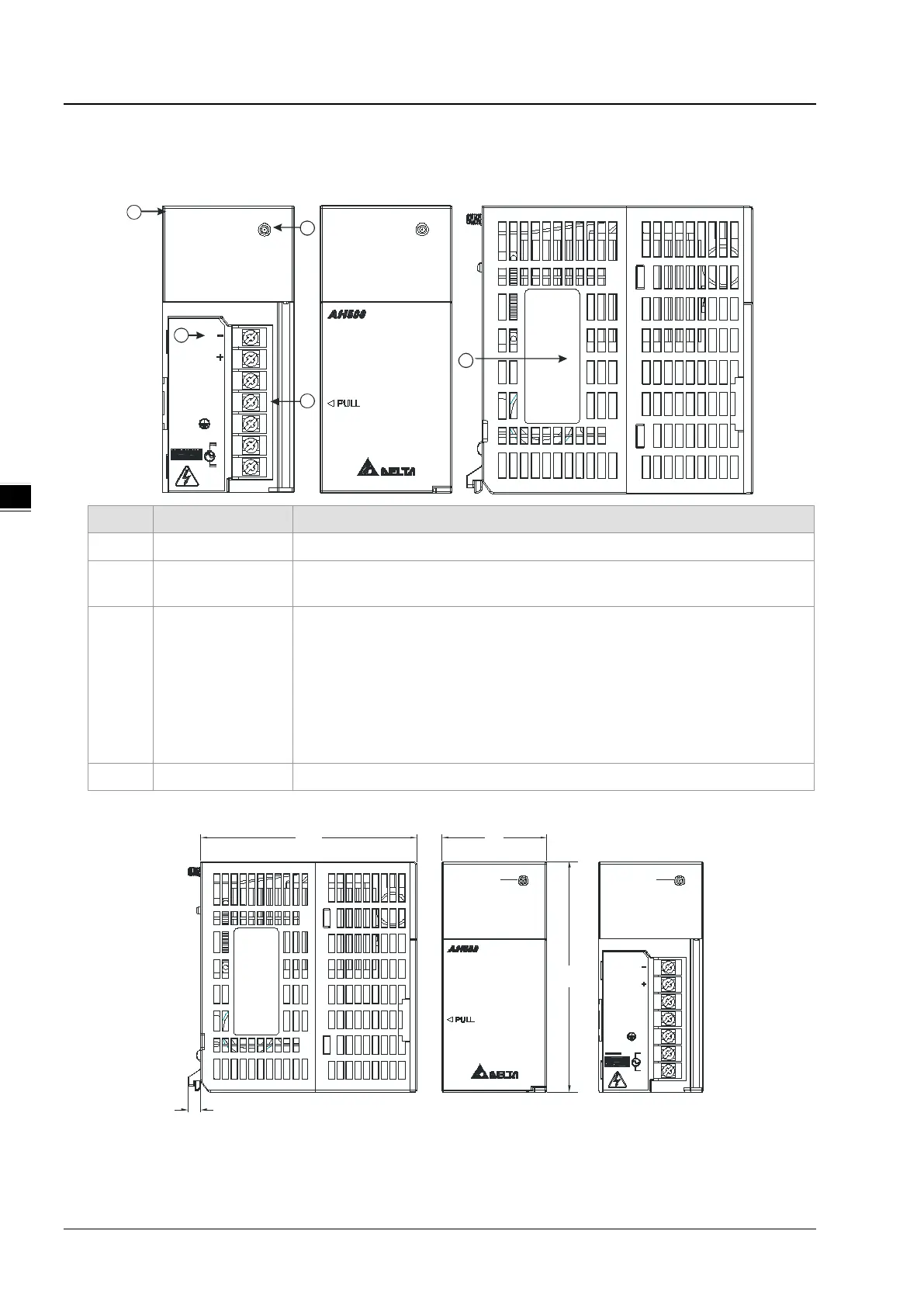

3.4.2 Profile and Dimensions
 AHPS05-5A
PS05
POWER
PS05
POWER
NC
FG
INPUT
VS
VS
LG
N
L
1
2
4
3
5
Number
Name
Description
1
Model name
Model name of the power supply module
2
POWER LED
indicator (green)
Indicating the status of the power supply
3
Arrangement of the
terminals
VS-: It is connected to the negative 24 VDC power supply.
VS+: It is connected to the positive 24 VDC power supply.
NC: No connection
FG: Functional ground
LG: Line ground
L/N: AC power input
4 Terminal Terminal for wiring
5
Label
Nameplate
Dimensions:
PS05 PS05
NC
FG
VS
VS
LG
N
L
103
110
50
6
Dimensions are in mm.
