Delta AH Motion Series User Manual

AH Motion – Hardware Manual
4-98
_4
*1. Please use a shielded cable as an analog input cable, and isolate the shielded cable from other power cables.
*2. If current is connected, the connection between Vn+ and In+ needs to be a short circuit. (n= 0 ~7.)
*3. If ripple voltage results in interference with the wiring, please connect a 0.1~0.47 μF and 25 V capacitor.
*4. Please connect the ground in the shielded cable to the terminal SG.
*5. Once the module is installed on a backplane, the module’s terminal SG and the backplane’s terminal will be a
short circuit. In this case, please connect the backplane’s terminal to the ground terminal .

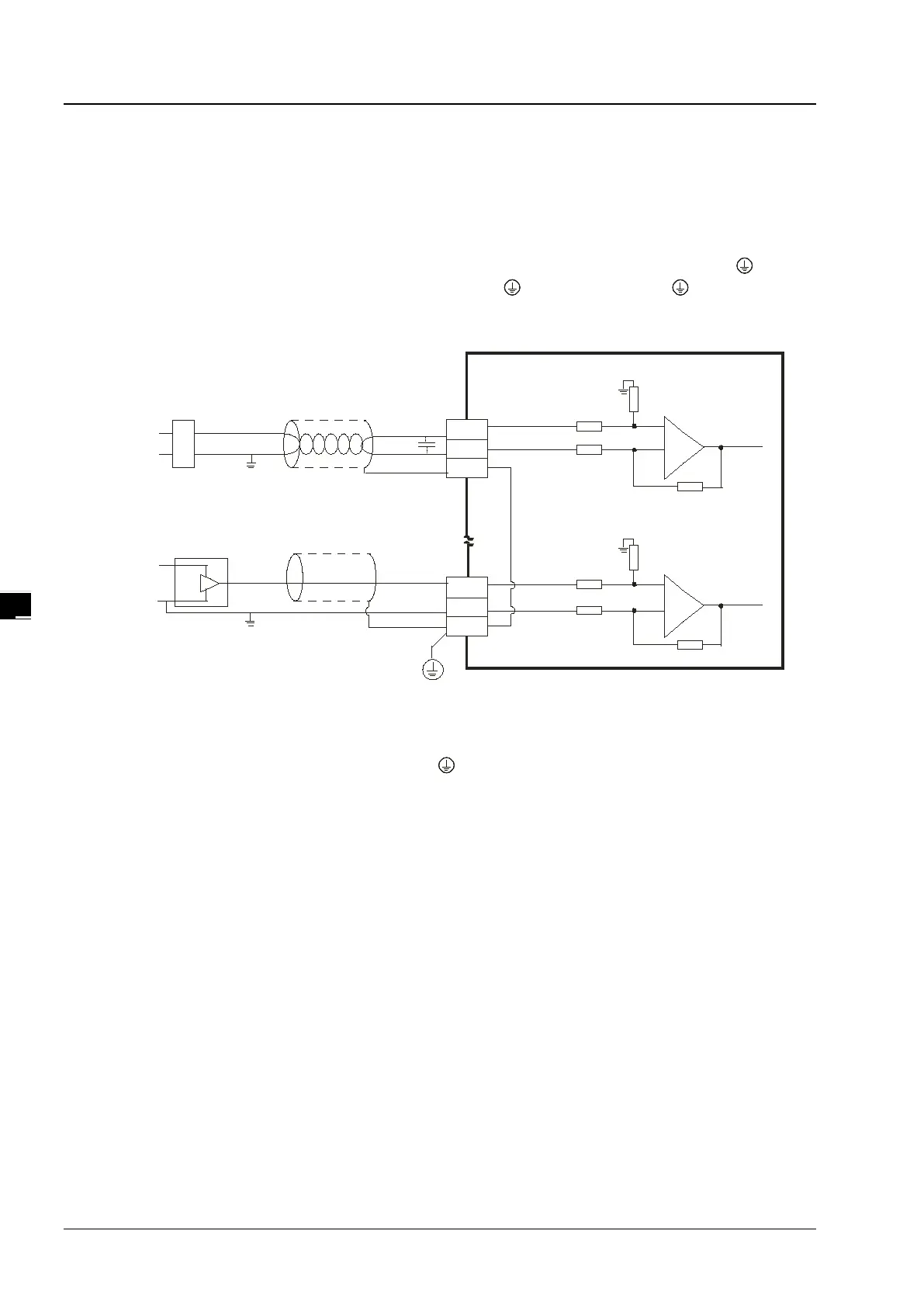

4.10.2 Wiring AH08AD-5B
Shielded cable
*1
V0+
V0-
*2
CH0
1M
AG
1M
SLD
V7+
V7-
CH7
1M
AG
1M
SLD
CH0
*3
-10V~+10V
+
-
+24V
0V
CH7
Shielded cable *1
+24V
+
-
Position transducer or
proportioning valve
-10V~+10V
Position transducer or
proportioning valve
4-wire connection:
voltage input
3-wire connection:
voltage input
0V
*1. Please use a shielded cable as an analog input cable, and isolate the shielded cable from other power cables.
*2. If ripple voltage results in interference with the wiring, please connect a 0.1~0.47 μF and 25 V capacitor.
*3. Please connect the terminal SLD to the ground terminal .
