Delta AH Motion Series User Manual

Chapter 4 Installation and Wiring
4-101
4_

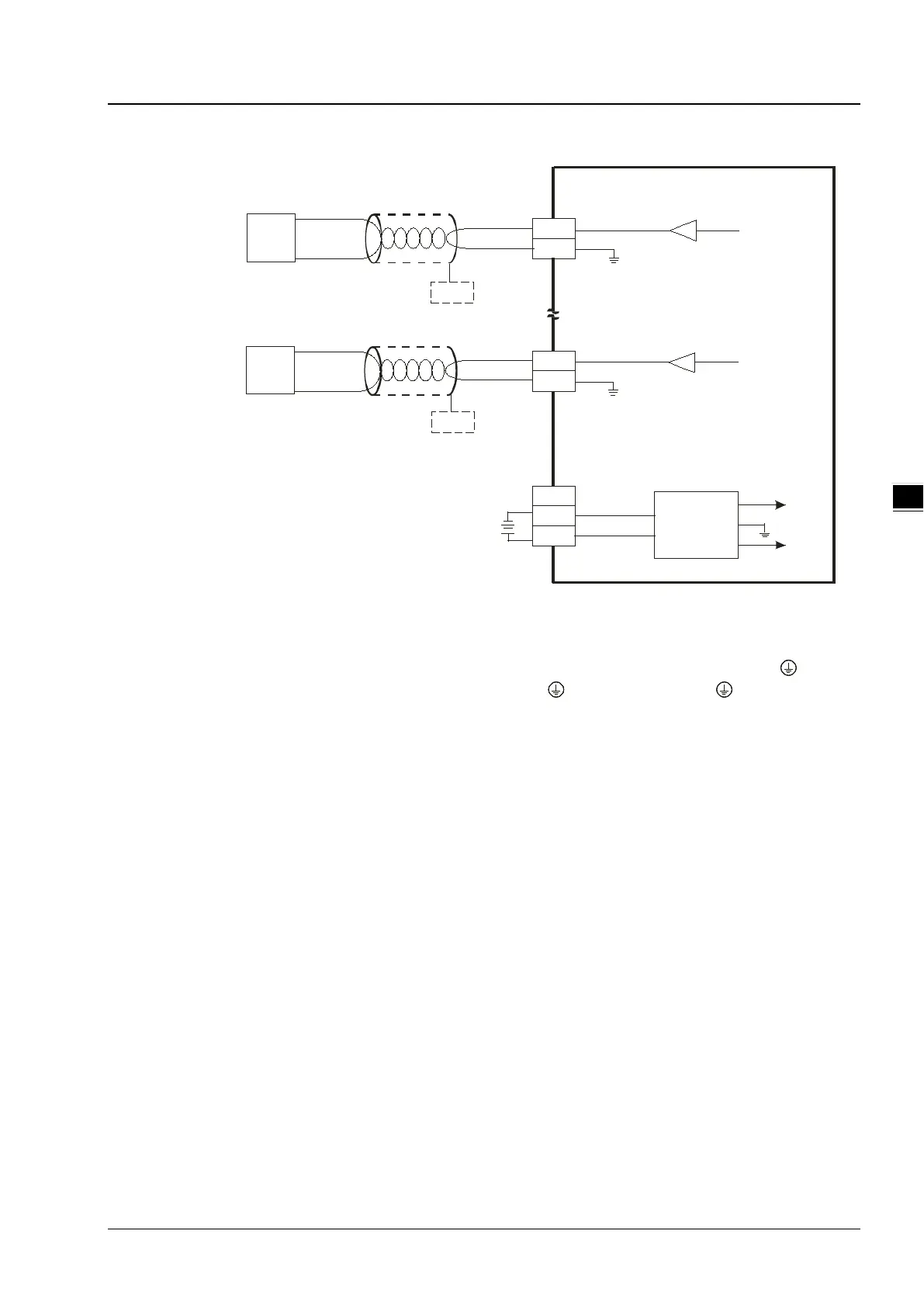

4.10.6 Wiring AH08DA-5C
IO0
AG
CH0
0mA~20mA
CH0
AG
ZP
UP
24VDC
DC/DC
+15V
-15V
AG
SG
CH7
0mA~20mA
CH7
AG
IO7
AG
*2
SG
*2
SG
*3
AC motor drive,
recorder,
proportioning valve...
AC motor drive,
recorder,
proportioning valve...
converter
Shielded cable*1
Current output
Shielded cable*1
Current output
*1. Please use a shielded cable as an analog output cable, and isolate the shielded cable from other power cables.
*2. Please connect the ground in the shielded cable to the terminal SG.
*3. Once the module is installed on a backplane, the module’s terminal SG and the backplane’s terminal
will be a
short circuit. In this case, please connect the backplane’s terminal to the ground terminal .
