Domino Ax Series User Manual

INSTALLATION
3-12 EPT019297 Issue 1 November 2016
TouchPanel Connectivity
The TouchPanel Type 3 and 4 are connected to the TouchPanel connector on the rear of the
Ax350i/Ax550i printer. The TouchPanel will then display the user interface relating to that printer
when the printer is turned on.
CAUTION: To reduce the risk of damaging cables or equipment, securely route the
TouchPanel cable away from moving equipment and other hazards.
TouchPanel
Connector

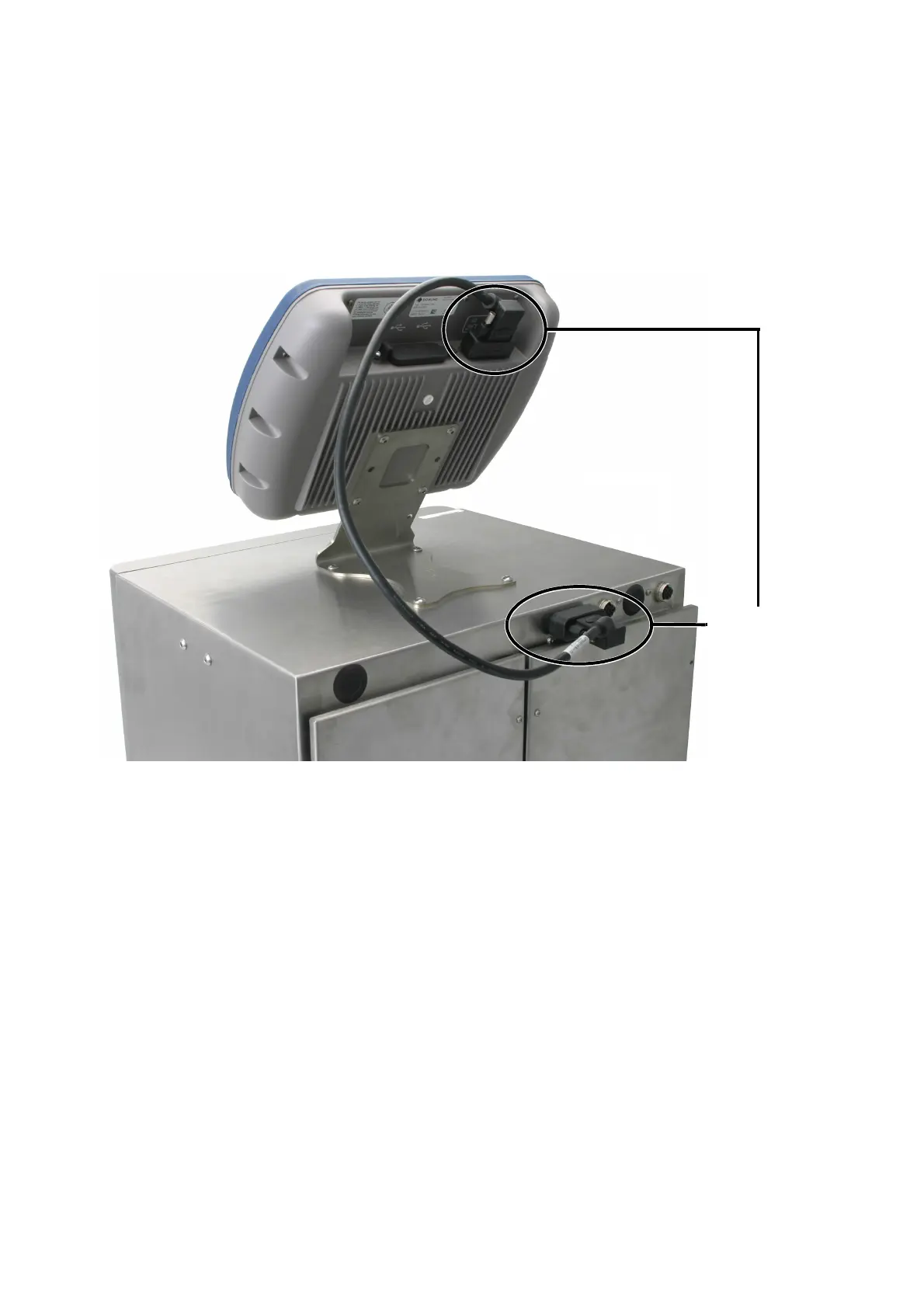

TouchPanel Connection
