dynabook TECRA A40-J Series Maintenance Manual

Maintenance Manual (960-945) 4-25
Replacement Procedures
3. Remove the Speaker from the Cover Assembly.

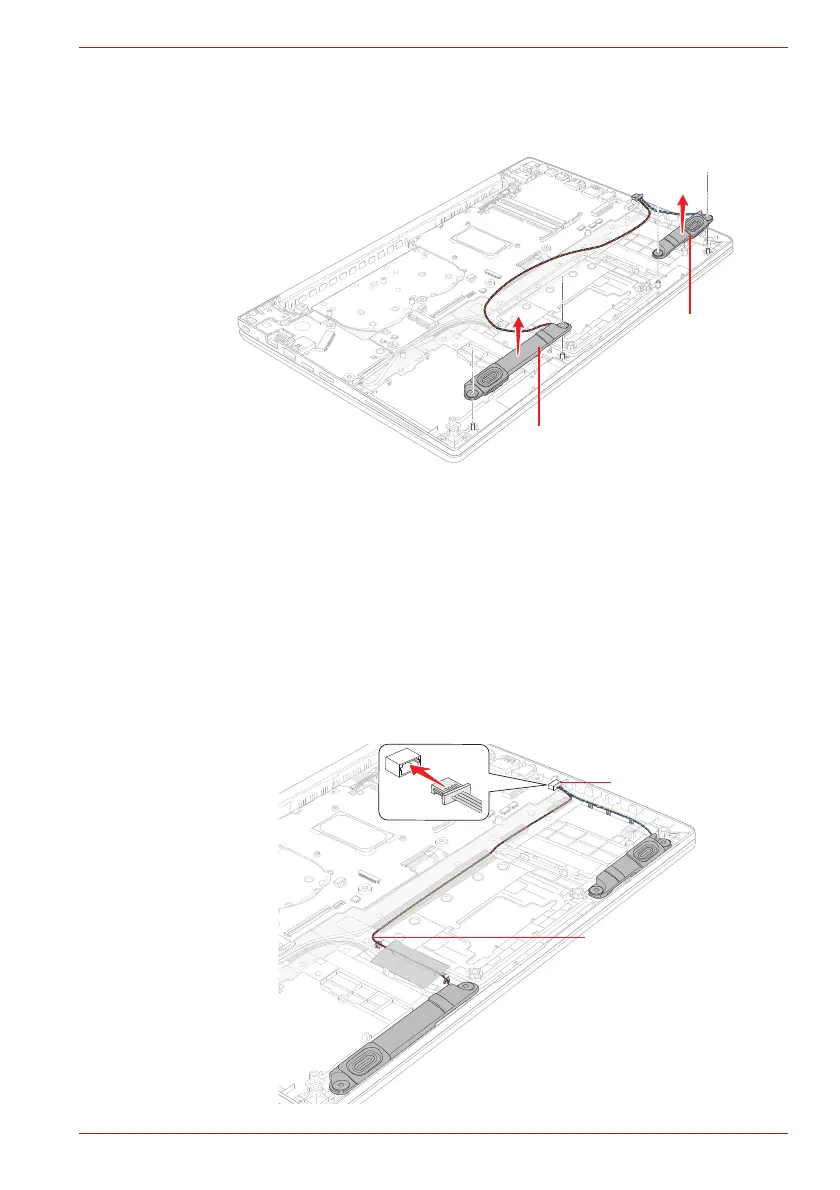

Figure 4-27 Removing the Speaker (2)
4.21.2 Installing the Speaker
To install the Speaker, follow the steps below.
1. Set the speakers to the Cover Assembly in place.
2. Arrange the Speaker harness under the guides as shown below.
3. Connect the Speaker harness to the connector CN6290 on the system
board.
4. Arrange the rest of Speaker harness as shown below, and fix it with the
stick stapes.
Figure 4-28 Installing the Speaker
Speaker
Speaker
Speaker Harness
CN6290
