Maintenance Manual (960-945) 4-11
Replacement Procedures
3. Turn the computer, and open the display.
4.12 Battery pack
4.12.1 Removing the Battery pack
To remove the battery pack, follow the steps below and refer to Figure 4-7
and Figure 4-8.
1. Disconnect the BATTERY HARNESS from the connector CN8021 on
the SYSTEM board.
2. Remove the following screws and the battery pack.

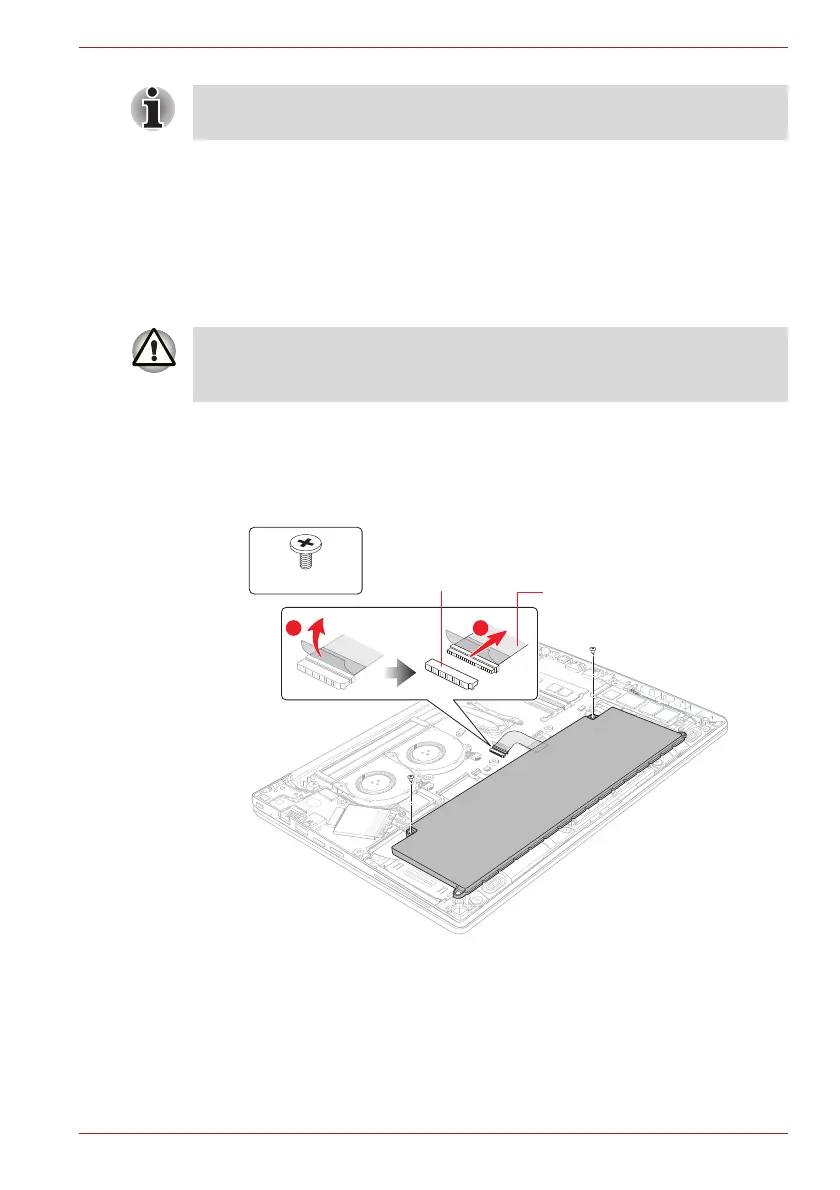

Figure 4-7 Releasing the battery pack (1)
3. Disconnect the BATTERY HARNESS from the connector on the battery
pack.
When securing the Base Assembly, be sure to drive the screws in the
order of the number on Figure 4-4.
Take care not to short circuit the terminals when removing the battery
pack. Similarly, do not drop, knock, scratch, disassemble, twist, or bend
the battery pack.
S2x4CT
Battery Harness
CN8021
1
2
To Next Page
