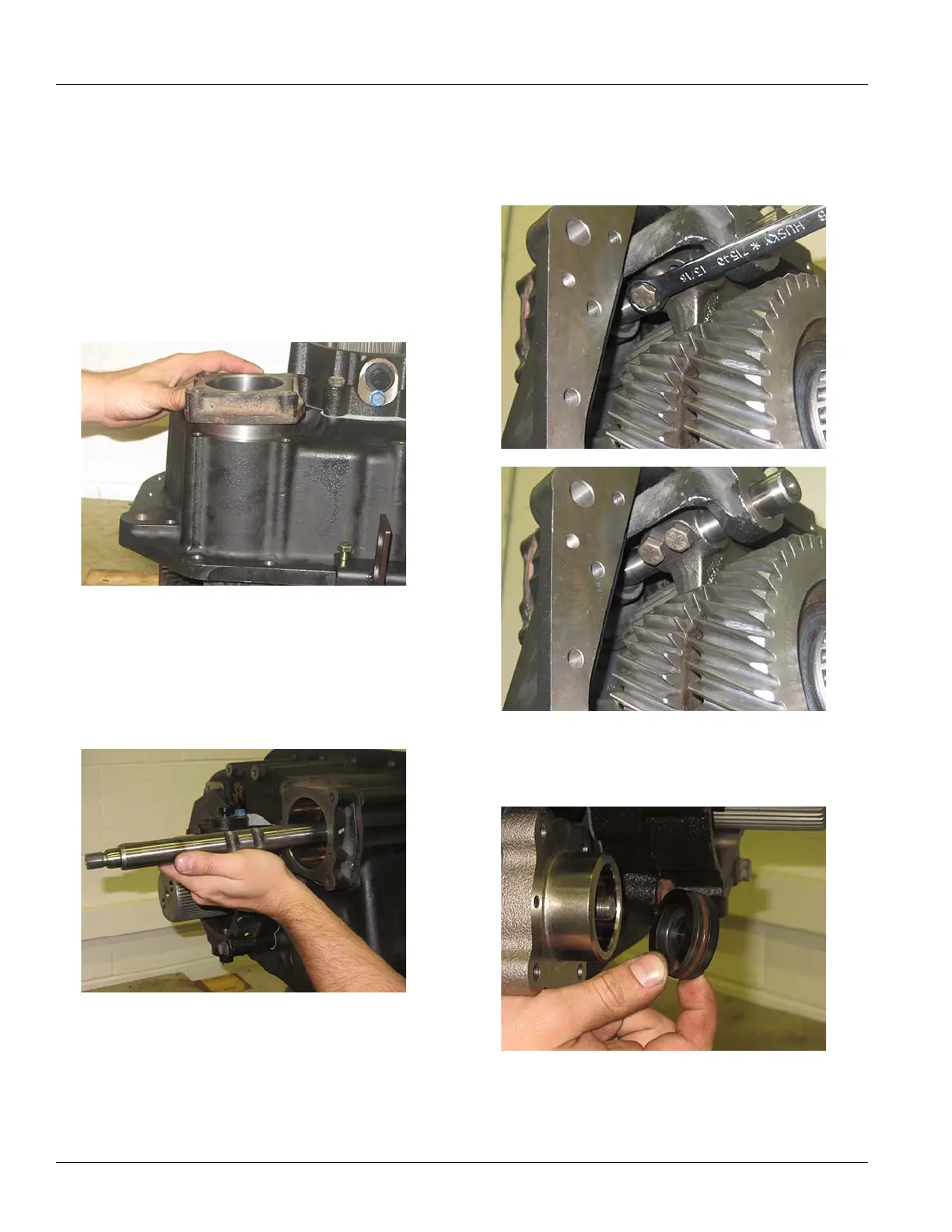

MHP/MXP/VHP/VXP Auxiliary Countershaft Installation | Service Procedures TRSM0940
Range Cylinder and Piston Installation
1. To assist in the installation of the Range Cylinder, place
the Auxiliary section in a vice.
2. Position
a new gasket on the range Cylinder Mounting
Surface of the Auxiliary Case.
3. Install the Range Cylinde
r through the Range Cylinder
Bore on the Auxiliary Case housing. Position the Range
Yoke Fork inside the open section of the cylinder.
4. Install
Range Yoke Bar from the rear of the Auxiliary
case.
Note: E
nsure that the Yoke Bar passes through the eye
of the Yoke fork.
5. Align the 2 groves on the Yoke
Bar and install the 2
retaining bolts through the bores on the Range Yoke
Fork.
6. In
stall the O-ring on the ID and OD of the piston.
