TRSM0940 Service Procedures | Range Cylinder LAS/VAS Model Rebuild – In Chassis
Range Cylinder LAS/VAS Model Rebuild – In Chassis
Special Instructions
None
Special Tools
None

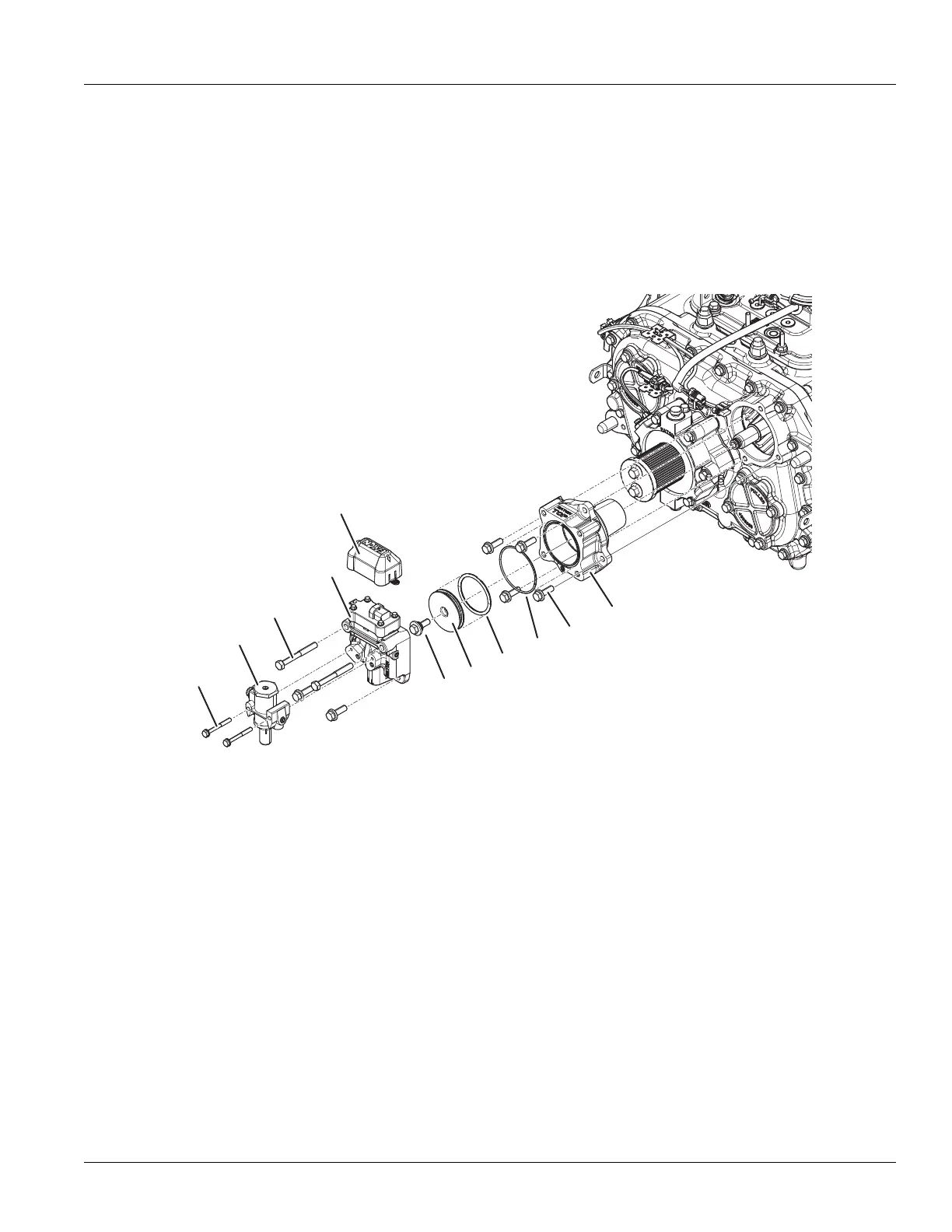

Component Identification
1. Air Filter/Regulator Bolts (x2)
2. Air Filter/Regulator
3. Range Cylinder Cover Bolts (x4)
4. Range Cylinder Cover and Range Solenoid Valve
5. Range Solenoid Valve Cover
6. Range Cylinder Piston Bolt
7. Range Cylinder Piston
8. Range Cylinder Piston O-ring
9. Range Cylinder O-ring
10. Range Cylinder Bolts (x4)
11. Range Cylinder
2
3
1
4
5
6
7
8
9
10
11
