Torque Specifications | Appendix TRSM0940

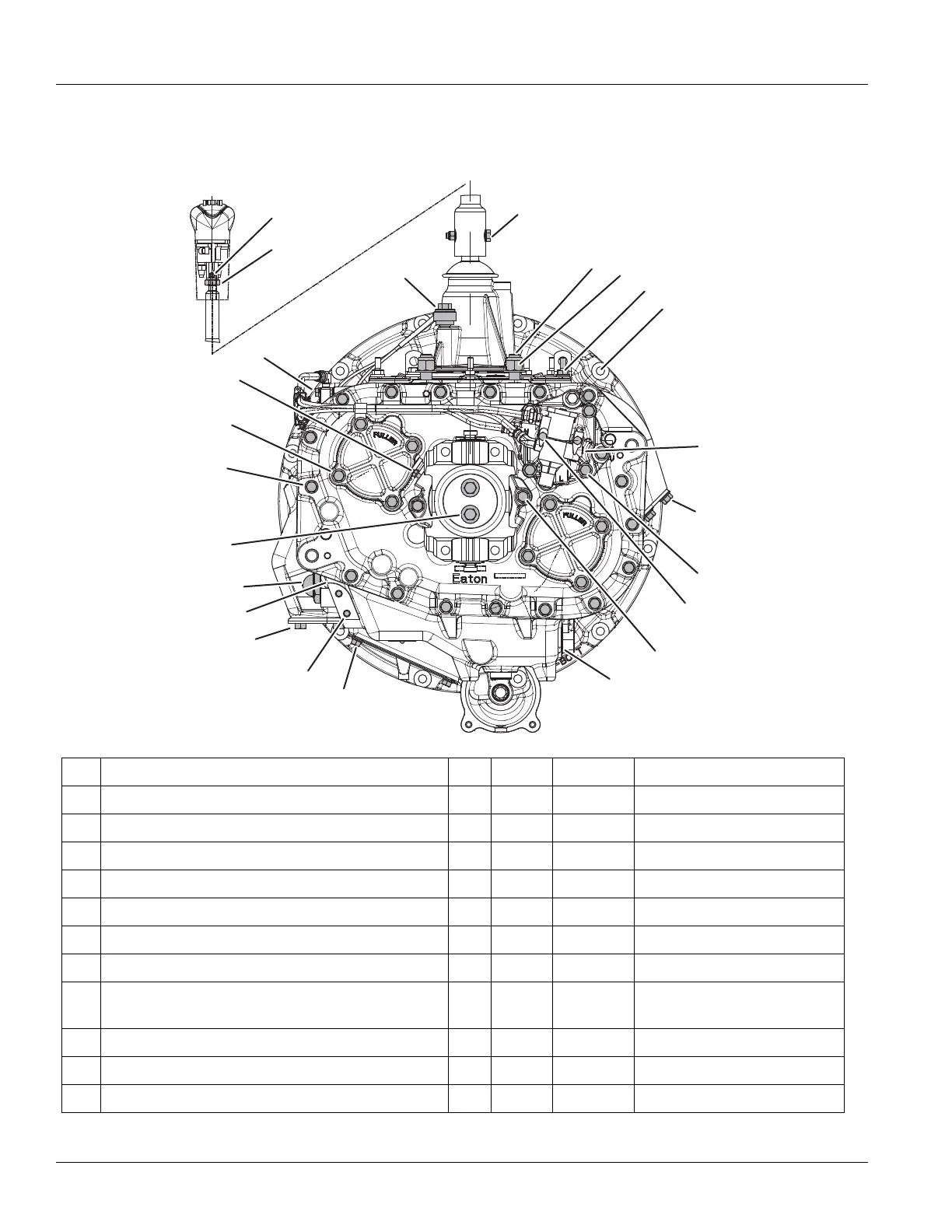

Torque Specifications LAS/VAS
Description Qty. Size TPI Torque
1. Skirt Attachment Screw 1 #8 32 18–24 lb-in (2–2.7 N•m)
2. Master Valve Jam Nut 1 0.50" 13 20–25 lb-ft (27–34 N•m)
3. Air Breather 1 0.125" 18 NPTF 25–30 lb-in (2.8–3.3 N•m)
4. Shift Shoulder Bolt and Nut 1 0.3125" 18 10–12 lb-ft (4–16 N•m)
5. Support Studs 2 0.625" 11 80 lb-ft (81 N•m)
6. Support Stud Nuts 2 0.625" 18 140–150 lb-ft (190–203 N•m)
7. Double Ended Stud 0.375" 16 35–45 lb-ft (48–61 N•m)
8. Clutch Housing to OEM Flywheel Housing Interface See OEM for torque specifica-
tion
9. Range/Filter Regulator Plugs 3 0.125" 27 PTF 84–120 lb-in (9.5–13.6 N•m)
10. 6-Bolt PTO Cover Cap Screws 6 0.375" 16 40–45 lb-ft (54–61 N•m)
11. Range Shift Cylinder Cover Cap Screws 4 0.375" 16 30–35 lb-ft (41–47 N•m)
1
4
5
6
7
8
9
10
11
12
13
14
16
15
19
17
18
20
21
22
23
24
3
2
