VCS/VMS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940
VCS/VMS Auxiliary Section Assembly and Installation
Special Instructions
Make sure the magnetic plugs are installed in the auxiliary
housing

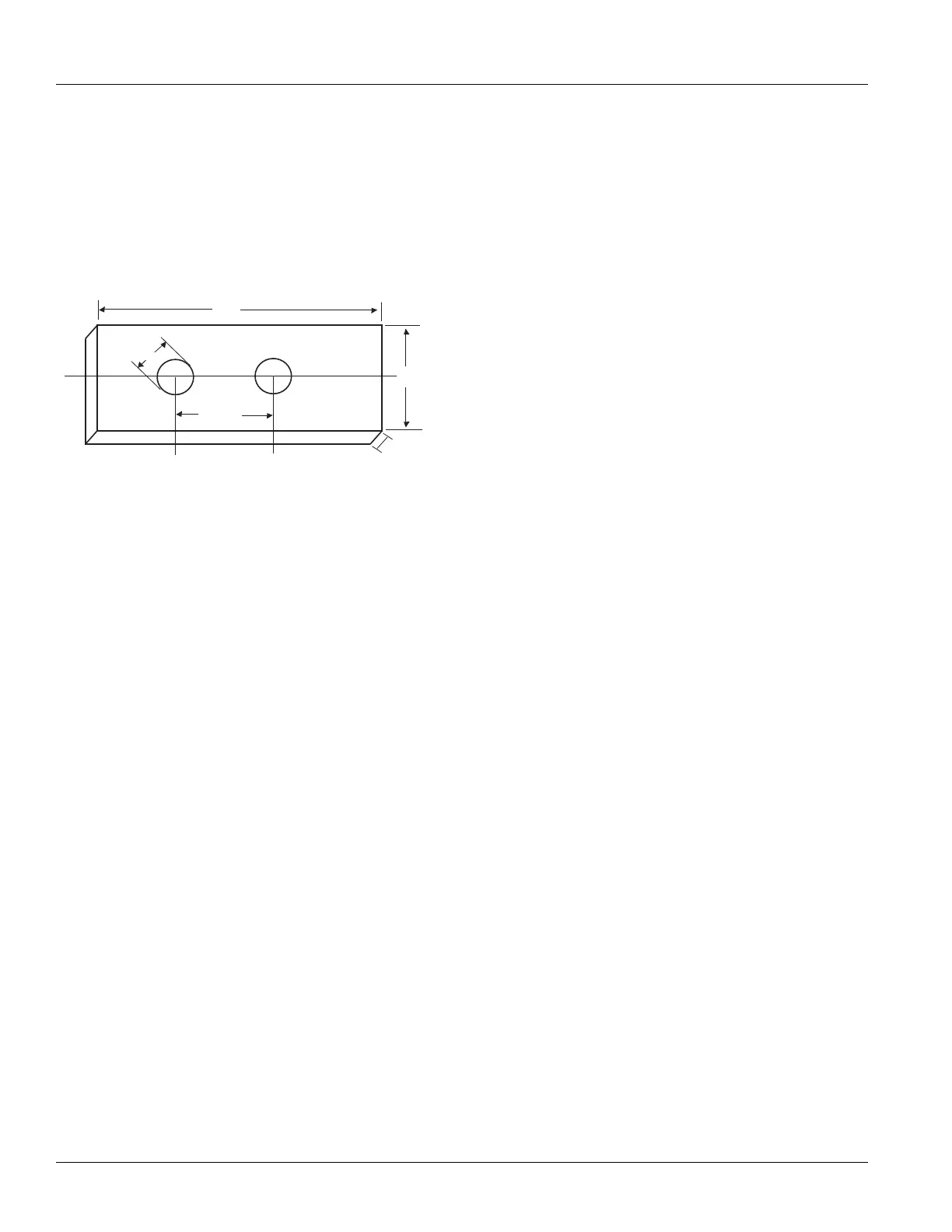

To assist in the assembly of the Auxilia
ry Section, you can
make an Auxiliary section fixture out of a 2” by 12” piece of
wood.
This fixture is designed to ease the assembly of the auxil-
iary gearing. Set the Auxiliary Countershaft front bearings in
the 3” holes.
Set the assembled Auxiliary Mainshaft between the
coun
tershafts with the timing marks aligned.
Special Tools
• Bearing Drivers
•Maul
• PVC Pipe
• RR1002TR Auxiliary Countershaft Support Straps
