TRSM0940 Service Procedures | Shift Bar Housing Disassembly and Assembly

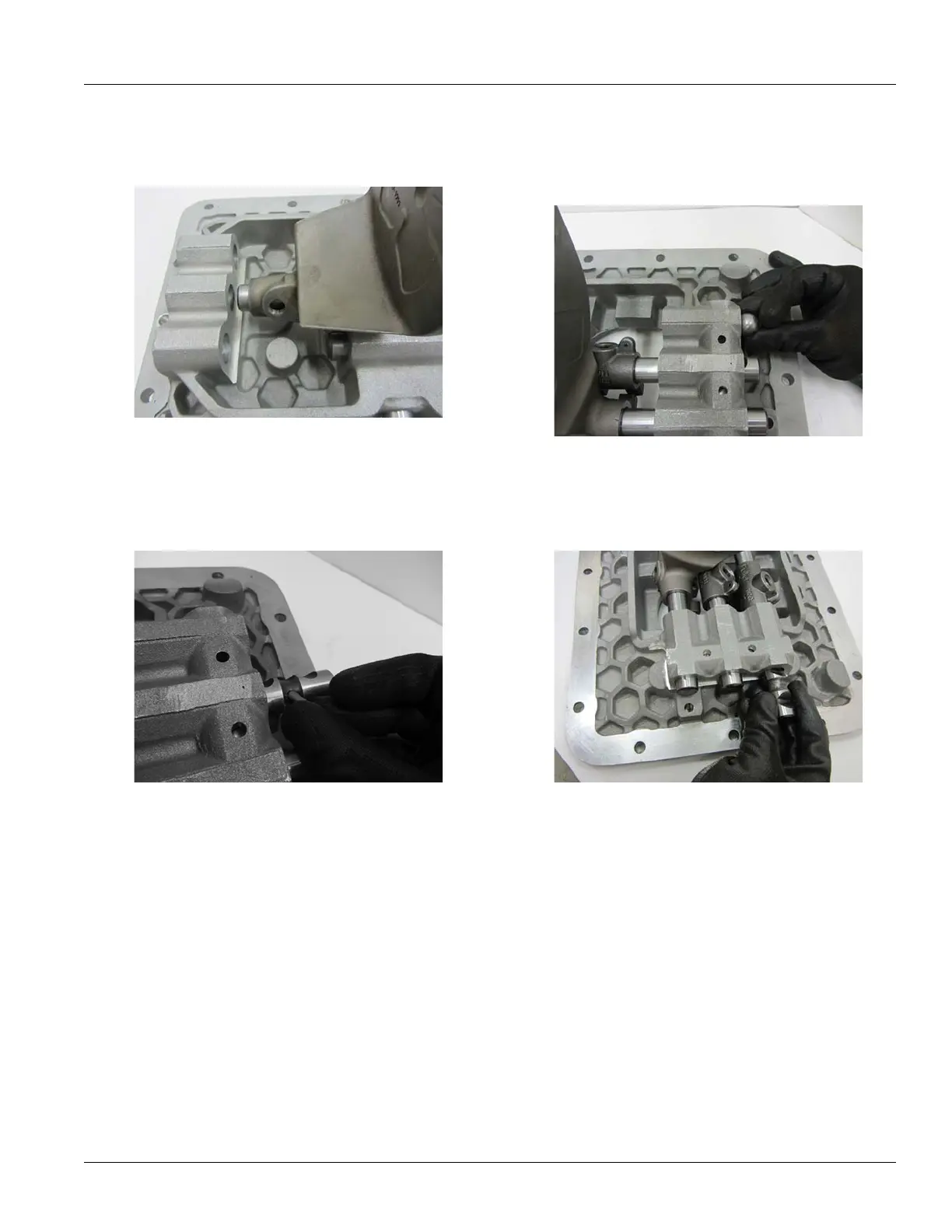

7. Position the yoke on the bar between the front and cen-
ter bosses, long hub to the housing front.
8. Just before inserting the
notched end of the rear boss
bar, install the small interlock pin vertically in the Neu-
tral notch bore.
9. Install
the block and yoke Sock screws, tighten and
lock wire securely.
10. In
stall the second 3/4” interlock ball in the rear boss
top bore. This ball rides between the 2nd-3rd and the
4th-5th Shift Bars.
11. Install
the 4th-5th Gear Shift Bar in the housing boss
upper bore.
12. Position
the shift block on the bar between the front
and center bosses, long hub to the housing rear.
To Next Page
