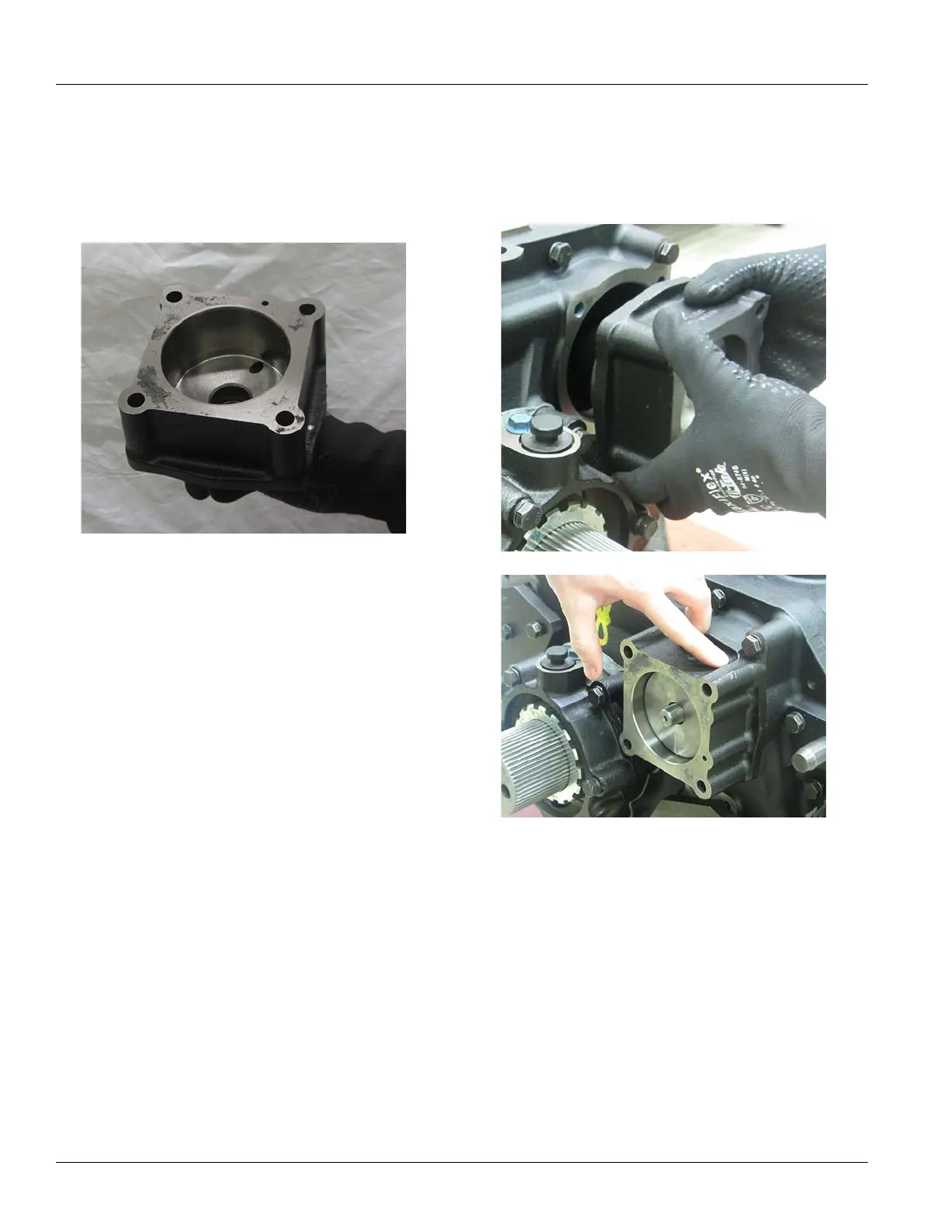

Range Cylinder LAS/VAS Model Rebuild – In Chassis | Service Procedures TRSM0940
Range Cylinder Assembly
1. Install a new gasket on the Range Cylinder to seal
against the Auxiliary Case. Clean off any remaining
debris from the old gasket.
2. Install
the Range Cylinder in the bore. Make sure the
cylinder is positioned so that the concave corner is in
the top right. This allows for proper access to the bolt
that secures the Auxiliary Case to the Main Case.
