SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 190
Confidential
3.4.7.3 DUCT FAN ASSY
1. Remove the PRINTER COVER. (p72)
2. Remove the RIGHT HOUSING PLATE. (p74)
3. Remove the RIGHT COVER ASSY. (p88)
4. Remove the LEFT HOUSING PLATE. (p73)
5. Remove the LEFT COVER ASSY. (p86)
6. Remove the REAR COVER SUB ASSY. (p77)
7. Remove the REAR COVER. (p79)
8. Remove the FILTER. (p76)
9. Remove the two screws, and remove the Fan Holder Assy.
A) Silver M3x6 Cup S-tite screw: 2 pcs

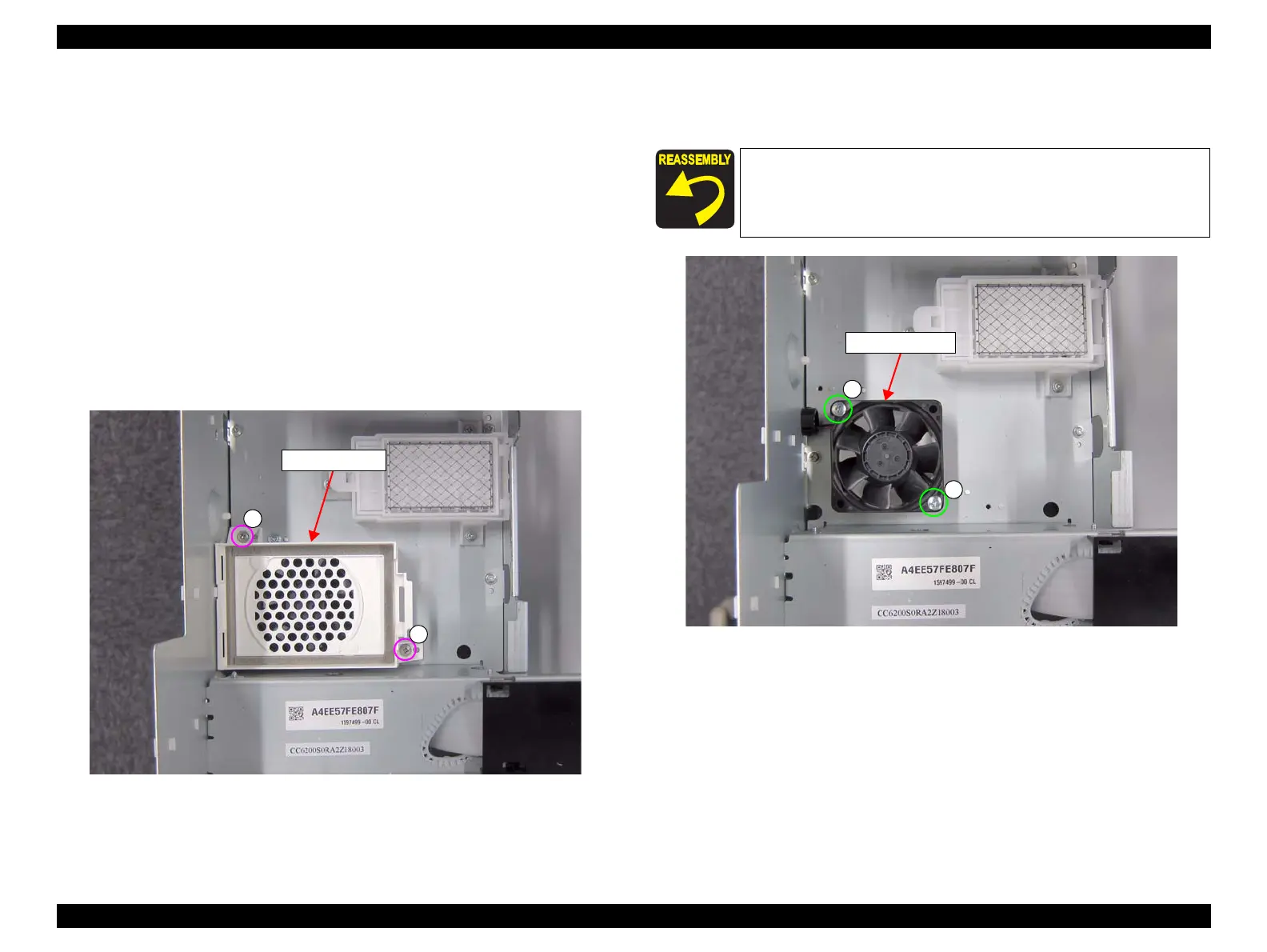

Figure 3-156. Removing the Fan Holder Assy
10. Remove the two screws, and remove the DUCT FAN ASSY.
B) Silver M4x30 Bind machine screw: 2 pcs
Figure 3-157. Removing the DUCT FAN ASSY
Fan Holder Assy
A
A
Install the DUCT FAN ASSY so that the label comes downward.
B
B
DUCT FAN ASSY
