F AC inlet #1/AC inlet #2/AC inlet #3
Connect the power cables supplied with the printer to #1 and #2. Be sure to connect both cables.
Connect the power cable supplied with the ink unit to #3. #3 is not available for the SC-S80600 Series/SC-S60600
Series/SC-S40600 Series.
G Optional port
Not available for the SC-S80600 Series/SC-S60600 Series/SC-S40600 Series. Connect the connection cable sup‐
plied with the ink unit.
H LAN port
Connects the LAN cable. Use a shielded twisted pair cable (category 5 or higher).
I Data lamp
The data lamp lights or flashes to indicate the network connection status and whether the printer is receiving
data.
On : Connected.
Flashing : Connected. Receiving data.
J Status lamp
The color indicates the network's communication speed.
Red : 100Base-TX
Green : 1000Base-T
K USB port
Connects the USB cable.

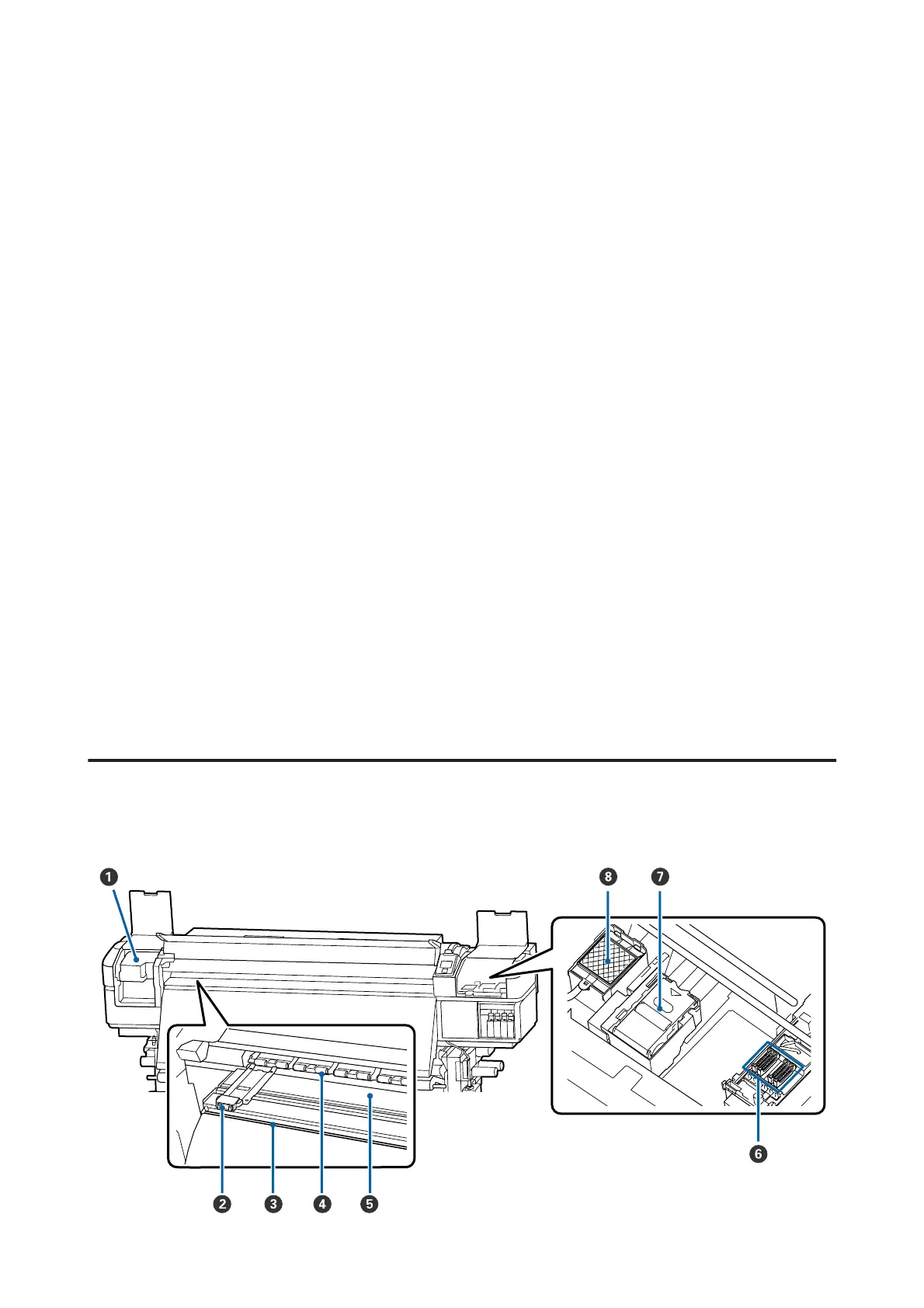

Inside
Dirt on any of the following parts may reduce print quality. Regularly clean or exchange these parts as described in the
chapters listed in the reference sections below.
SC-S80600 Series/SC-S80600L Series/SC-S60600 Series/SC-S60600L Series/SC-S40600 Series User's Guide
Introduction
10
