Chapter 1 Product Overview
1

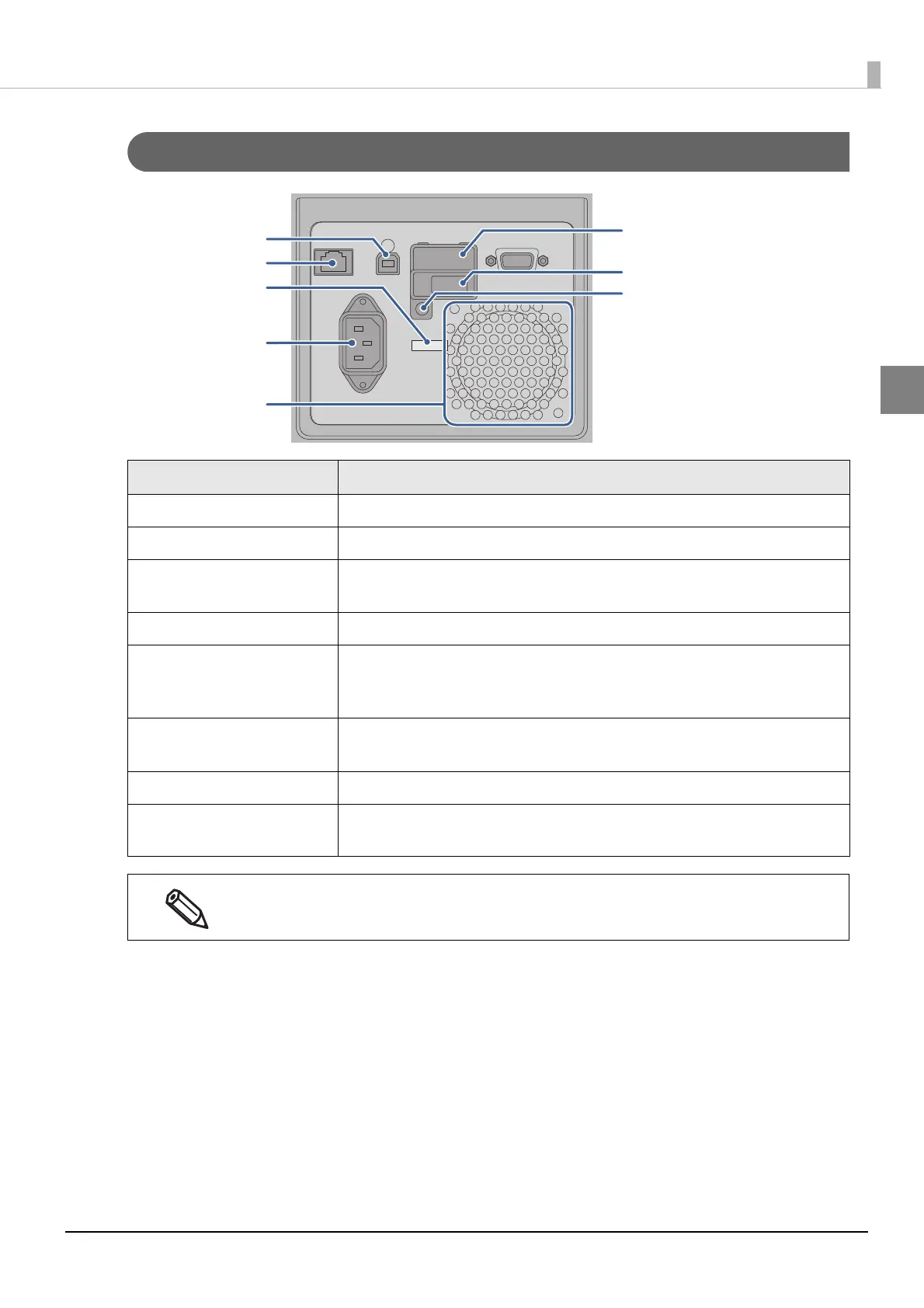

Rear Side
Name Description
USB Connector For connecting a USB cable.
Ethernet Connector For connecting a LAN cable.
Wire Saddle Pass the USB cable through this saddle to prevent disconnection of the
USB cable.
AC Inlet For connecting a power cable.
Air Vent Exhausts heat generated in the product to prevent an internal
temperature rise. Allow a clearance of 10 cm {3.94”} or more from the air
vent to ensure ventilation when installing the product.
Dip Switch Cover mounting
screw
Remove the screw to open the Dip Switch Cover.
Dip Switch Used when changing the function of the Power button.
Dip Switch Cover When operating the Dip Switch, remove the Dip Switch Cover Mounting
Screw and open the cover.
When setting the Power button operation to "Power switch disabled (Reset operation)", make
sure the printer is not operating when turning the power OFF.
USB Connector
Ethernet Connector
Wire Saddle
AC Inlet
Air Vent
Dip Switch Cover
Dip Switch
Dip Switch Cover mounting screw
To Next Page
