Operation Manual
Version: 12/01
29
er900L Operation Manual
Art-Nr: 475.043
Ergometer
Type er900L
6.6 Ergometric Protocol

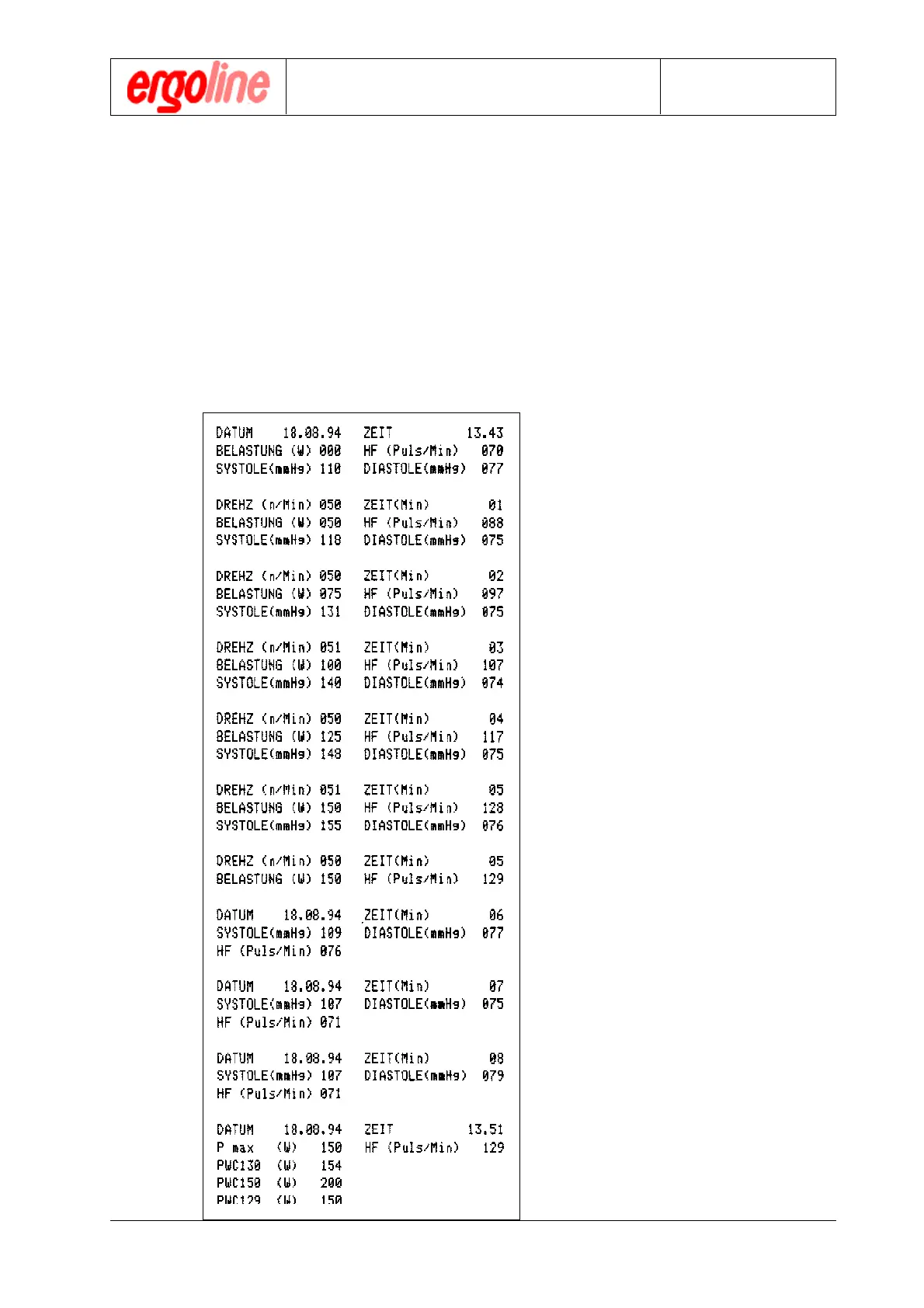

An ergometric protocol is recorded during the ergometric session. The protocol is either
produced by the internal printer or by an ECG. Picture below shows such a protocol as
documented by the internal printer. Program parameters were:
heart rate max. = 180, systole max. > 200, diastole max. > 130,
initial load Po = 50 watt, maximum load Pmax. = 999 watt,
blood pressure measurement interval = 01 min.,
load interval = 01 min., load change per interval = 25 watt.
The PWC values to be ascertained were predifined for heart rates between 130 and 150
beats per minute. The values in this protocol are not representative of a patient as they were
generated with a simulator.
quiescent blood pressure
blood pressure measurements
for individual load increments
termination of the load program
with termination protocol
blood pressure measurements in
the recuperation phase
end of ergometry with conclud-
ing protocol
}
}
Ergometry process
