RIP Configuration Example
Summit 200 Series Switch Installation and User Guide 219
RIP Configuration Example
Figure 38 illustrates a switch that has two VLANs defined as follows:
• Finance, which contains ports 2 and 4 and has the IP address 192.207.35.1
• Personnel, which contains ports 3 and 5 and has the IP address 192.207.36.1

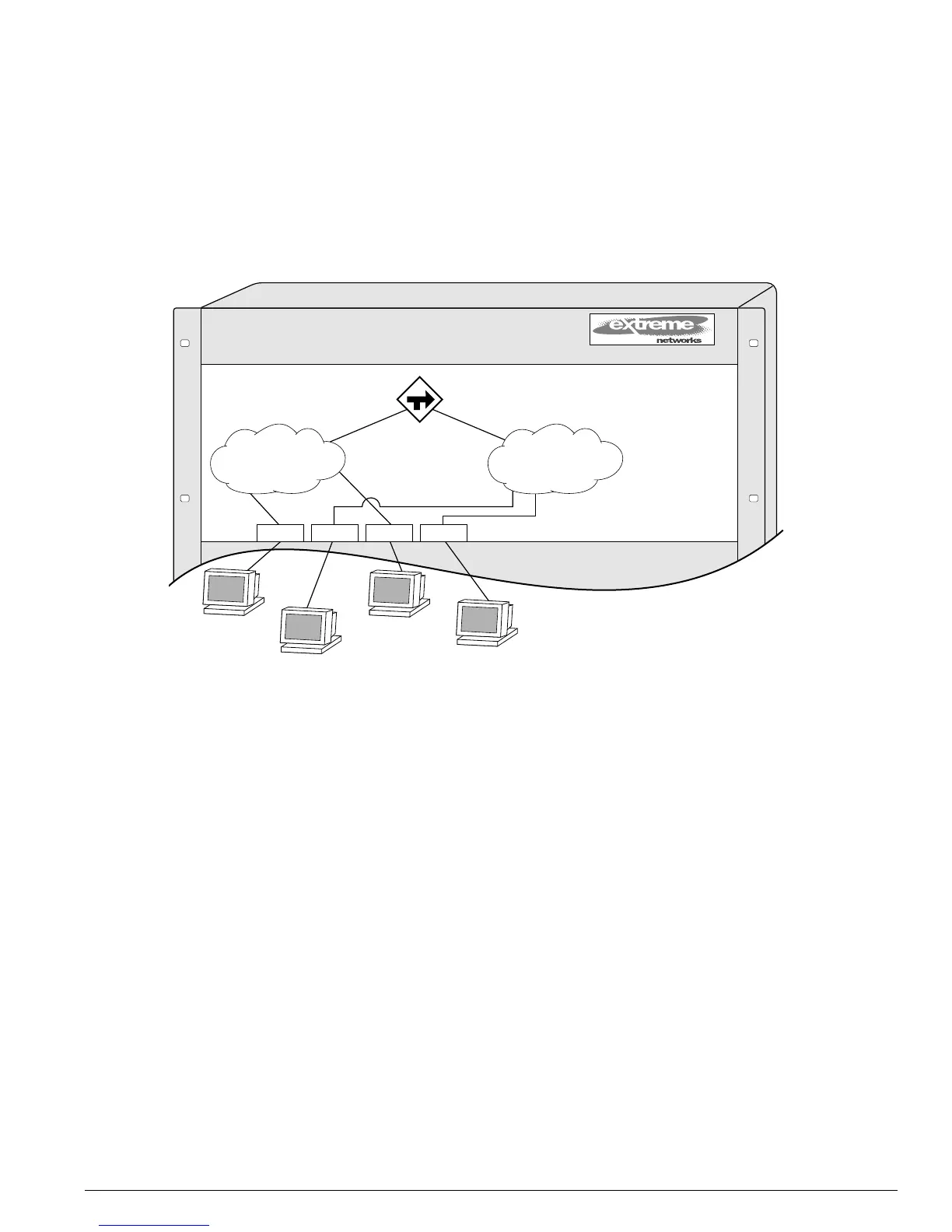

Figure 38: RIP configuration example
In this configuration, all IP traffic from stations connected to ports 2 and 4 have access to the router by
way of the VLAN Finance. Ports 3 and 5 reach the router by way of the VLAN Personnel.
The example in Figure 38 is configured as follows:
create vlan Finance
create vlan Personnel
config Finance add port 2,4
config Personnel add port 3,5
config Finance ipaddress 192.207.35.1
config Personnel ipaddress 192.207.36.1
enable ipforwarding
config rip add vlan all
enable rip
