254 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200

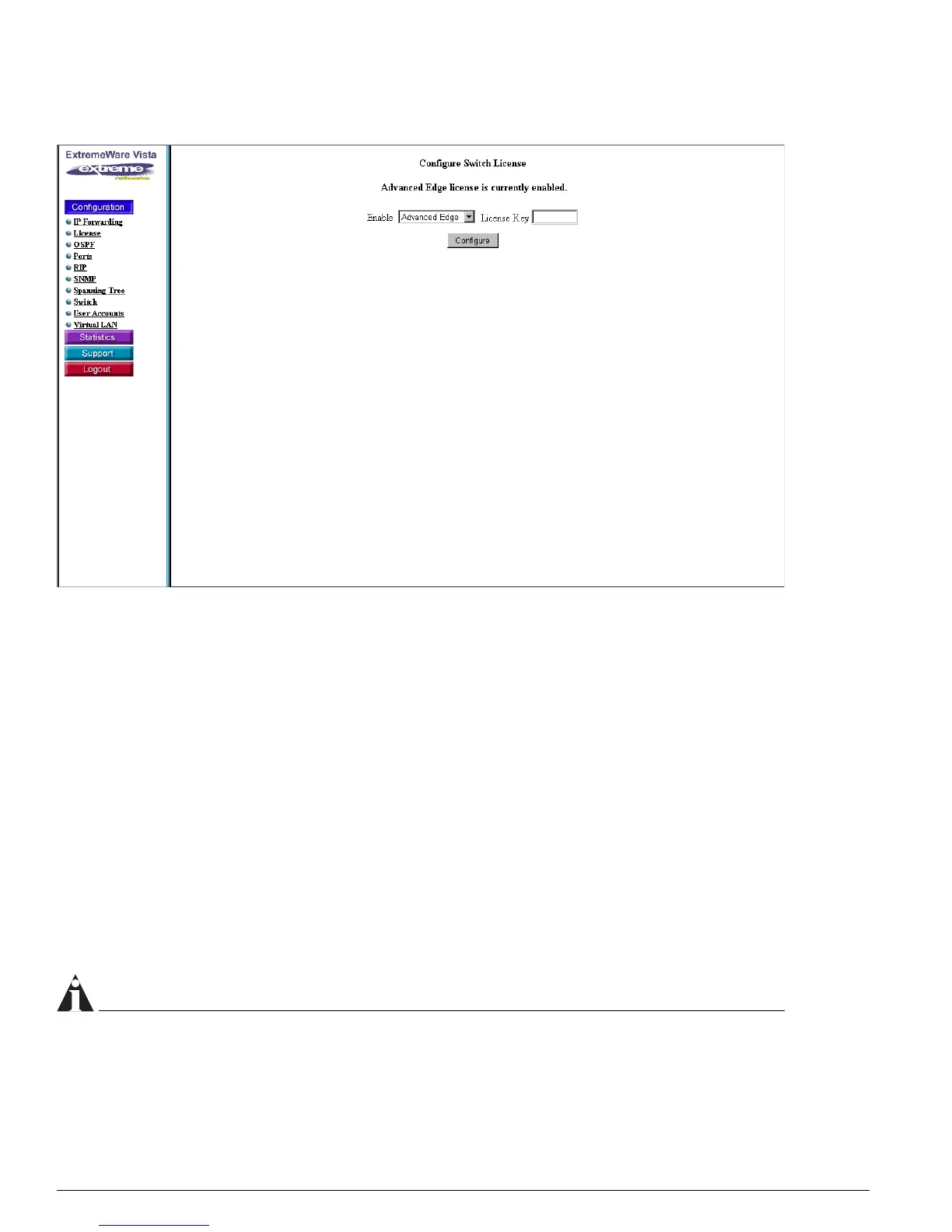

Figure 46: License Window
OSPF
The OSPF configuration window allows you to perform a wide-range of OSPF configuration tasks. The
window is divided into six functional areas:
1 Configure global OSPF parameters including enabling or disabling of the exporting of RIP, static,
and direct (interface) routes to OSPF
2 Create or delete an OSPF area
3 Configure a range of IP addresses in an OSPF area
4 Configure an OSPF area
5 Configure an IP interface for OSPF
6 Configure OSPF authentication
Configure Global OSPF Parameters
Use the global parameters to set up OSPF throughout the switch. See the top portion of Figure 47 for an
example of the global parameters window.
NOTE
Before you can make global changes to OSPF, you must first disable OSPF Export Static and OSPF
Export RIP.
From this portion of the window, you can:
