276 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200
FDB
This window allows you to review the contents of the FDB table. It also gives summary information
about the contents of the view and allows you tailor the view by various parameters.
The view of the FDB, as shown in Figure 69, consists of the following entries:
MAC Destination—MAC address of the device
VLAN—VLAN name and tag
Flags—Identifier for static (s) or dynamic (d)
Port List—The destination port or ports for the MAC address

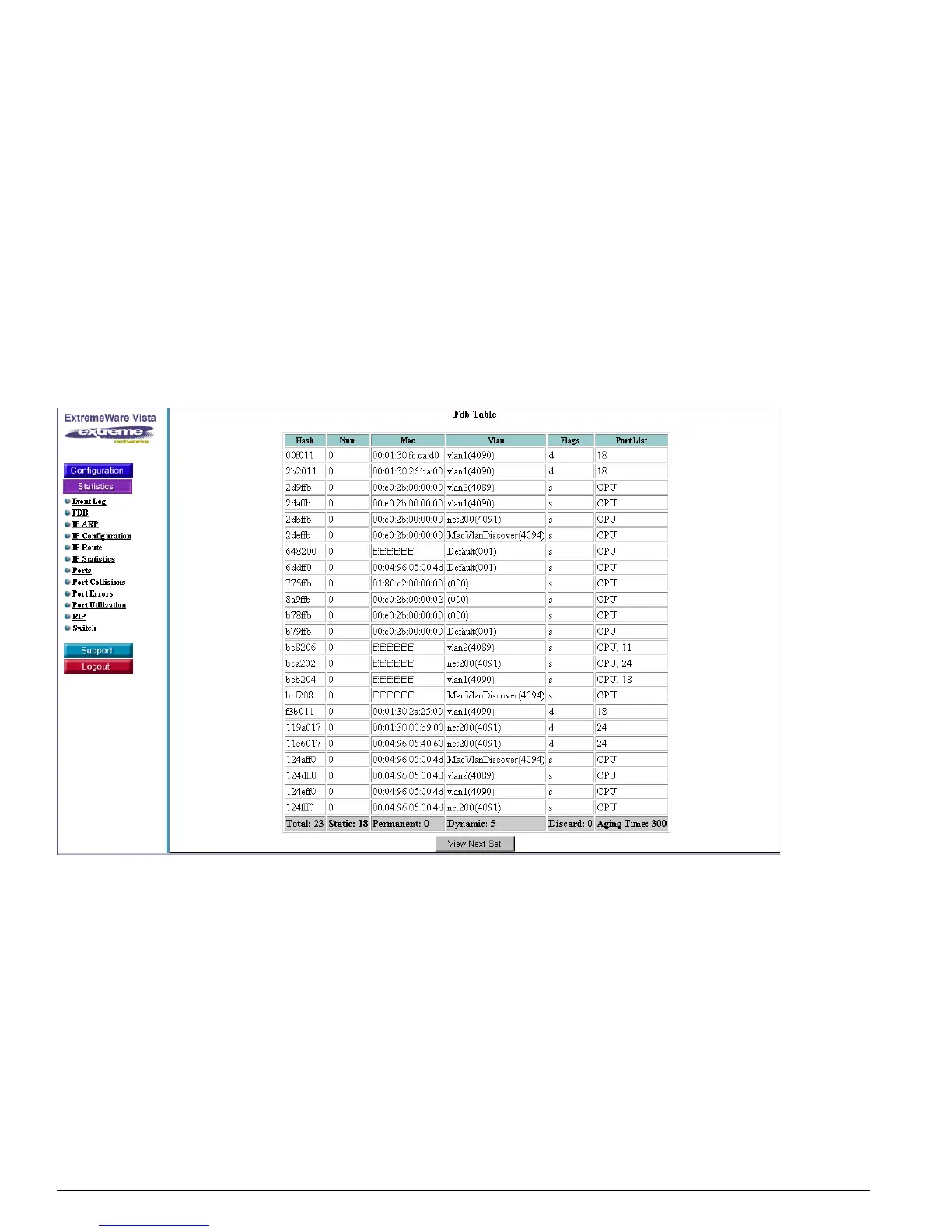

Figure 69: FDB (1 of 2)
Summary information is located at the bottom of the view. The summary information contains the:
To ta l—Total number of entries in this database view
Static—Number of static entries in this view
Permanent—Number of permanent entries in this view
Dynamic—Number of dynamic entries in this view
Discarded—Number of entries discarded
Aging Time—The current time setting for removing entries from the FDB
