252 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200
• RIP on page 263
• SNMP on page 266
• Spanning Tree on page 267
• Switch on page 271
• User Accounts on page 271
• Virtual LAN on page 272

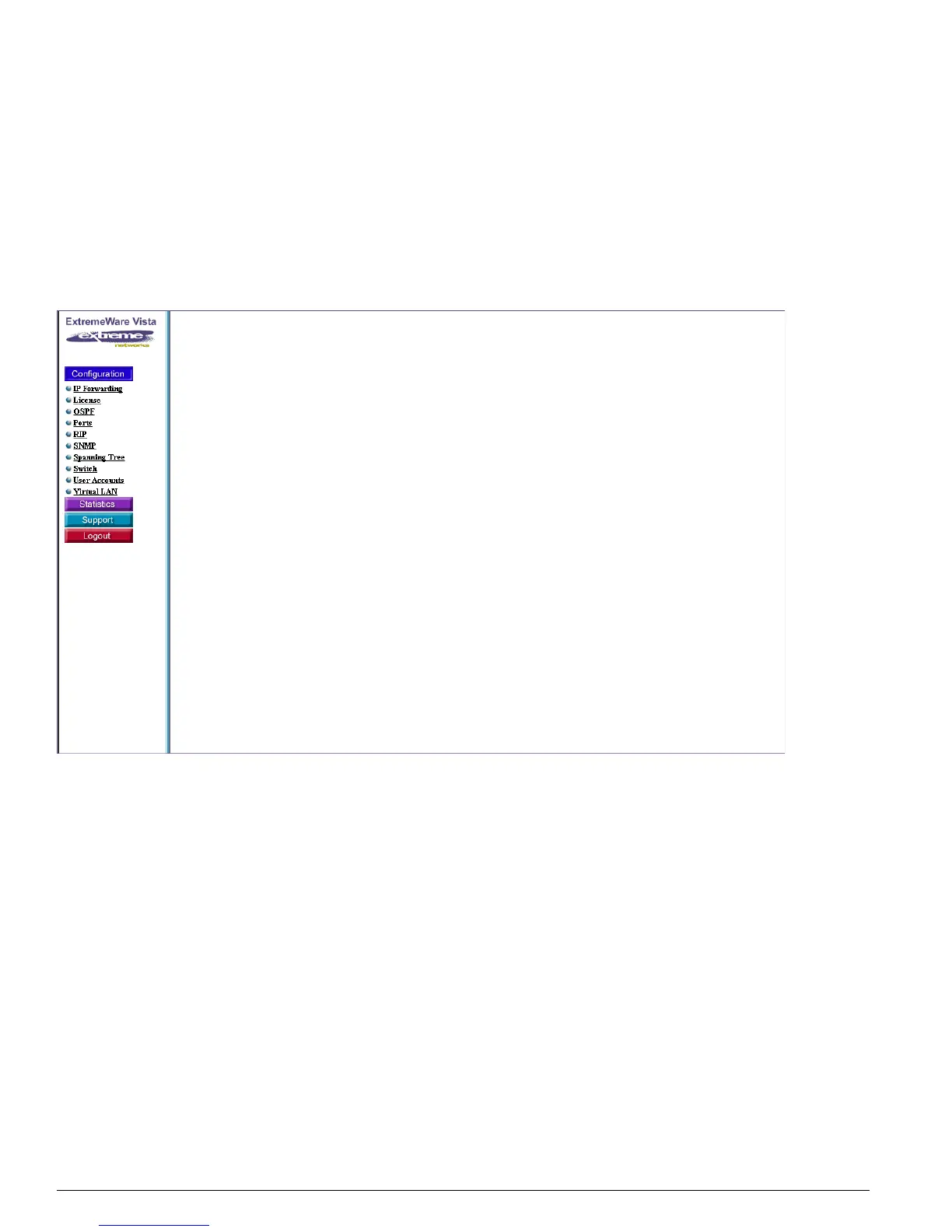

Figure 44: Configuration Submenu Links
IP Forwarding
From this window, you can enable or disable the IP unicast forwarding across VLANs. For an example
of this window, see Figure 45. In the top of the window is a table that shows each existing IP interface
configuration. The configuration box that follows allows you to use the pull-down menu to enable or
disable forwarding on those existing VLANs. Before submitting a change, users must select the
appropriate value for all fields.
The configuration box has the following selectable fields:
VLAN name
Unicast Forwarding—Either enable or disable
Broadcast Forwarding—Either enable or disable
Multicast Forwarding—Enable, disable, or don’t change
For more information on forwarding of IP packets, see:
