284 Summit 200 Series Switch Installation and User Guide

Using ExtremeWare Vista on the Summit 200

Link State

Received Packet Count

Transmitted Packet Count

Received Byte Count

Transmitted Byte Count

Collisions

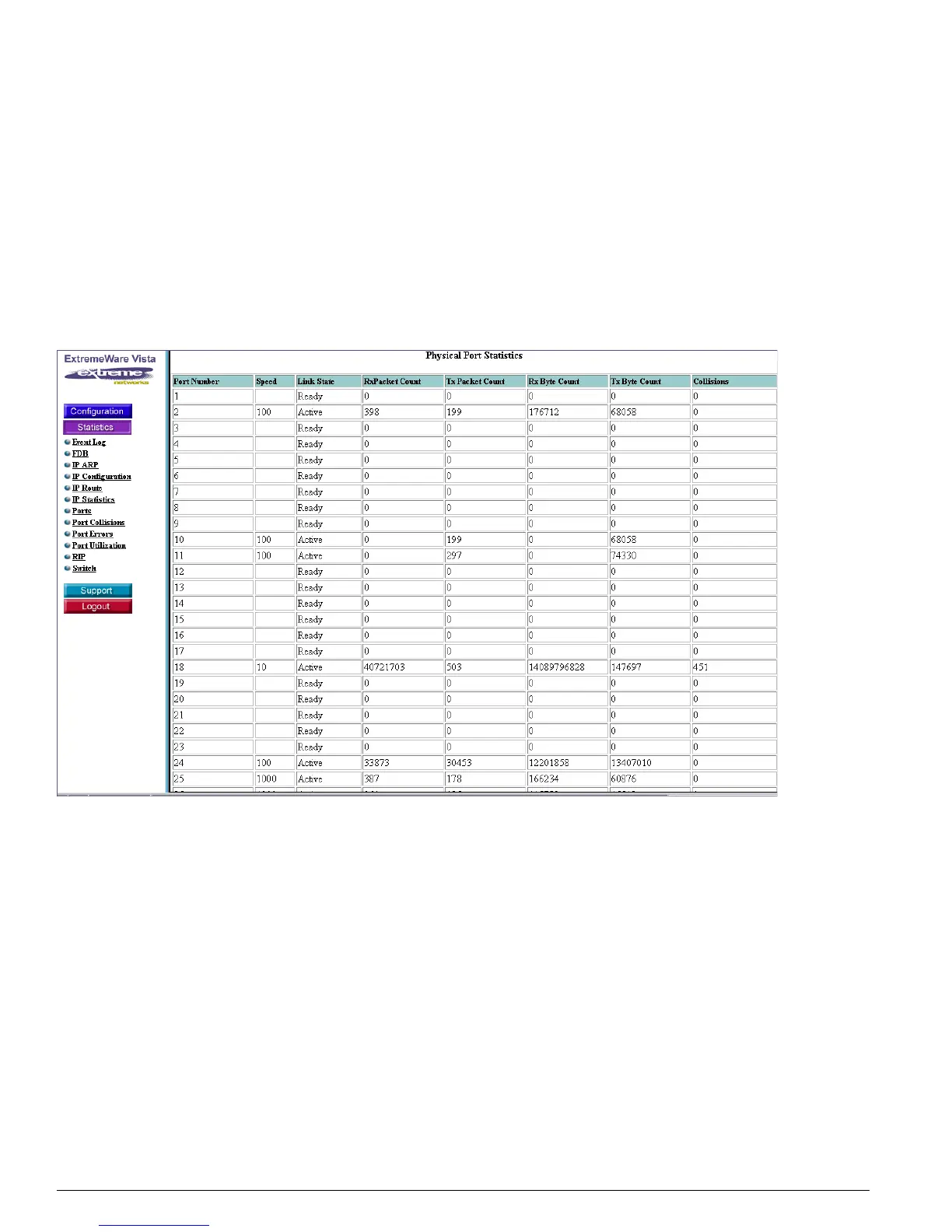

Figure 76: Physical Port Statistics

Port Collisions

This window provides information about Ethernet collisions that occur when the port is operating in

half-duplex mode. An example of this window is shown in Figure 77.
