288 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200
Bad Routes

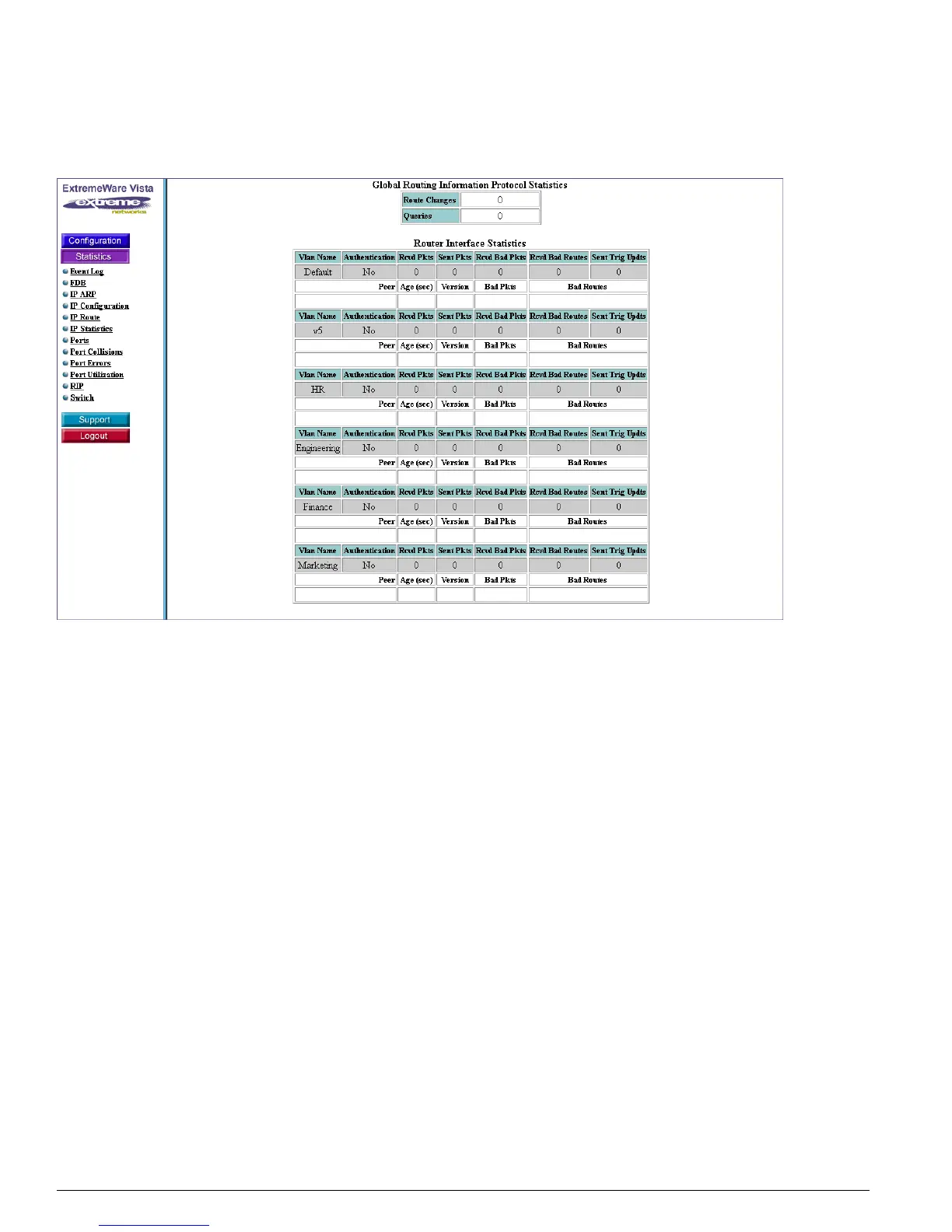

Figure 80: RIP Statistics
Switch
Use this window to locate hardware status information. As shown in Figure 81, the Hardware Status
table provides data about the following areas:
System Name—Summit 200-24 or Summit 200-48
MAC Address—MAC address of the device
Software Image Selected—Primary or secondary image and version number of the image
Software Image Booted—Actual image running
Configuration Selected—Either primary or secondary
Configuration Booted—Either primary or secondary
Primary Configuration—File size, date and time of the download
Secondary Configuration—File size, date and time of the download
Fans—Status of the internal cooling fans
Switch Temperature—Either normal or over, for over-temperature
