278 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200

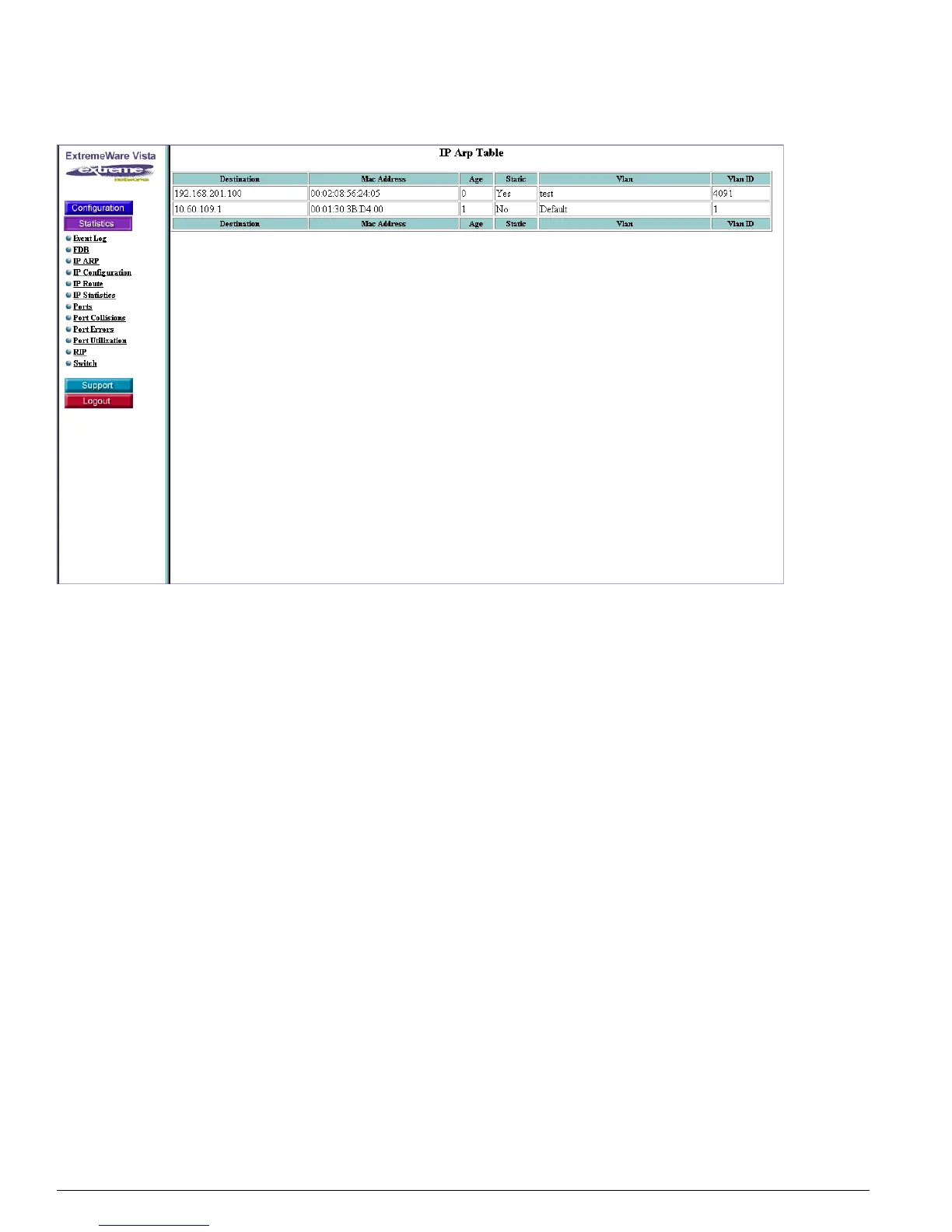

Figure 71: IP ARP Table
IP Configuration
In this window you can review two different tables containing IP configuration information. The Global
IP Configuration Statistics table provides IP settings and summary statistics for the entire switch. The
Router Interface table provides details on each VLAN. Both tables are shown in Figure 72.
Global IP Configuration Statistics
This table contains the following fields:
IP Routing—Indicates whether IP forwarding is either enabled or disabled on the switch. The default
setting for IP forwarding is disabled.
Ipmc Routing— Indicates whether IP multicast forwarding is enabled or disabled on the switch. This
setting is either enabled or disabled.
Use Redirects—Indicates whether the switch can modify the route table information when an ICMP
redirect message is received. This option applies to the switch when it is not configured for routing.
This setting is either enabled or disabled; the default setting is disabled.
IGMP—Internet Group Management Protocol (IGMP) allows network hosts to report the multicast
group membership to the switch. This setting is either enabled or disabled.
RIP—Routing Information Protocol (RIP) is either enabled or disabled.
IRDP—ICMP Router Discovery Protocol (IRDP) shows the generation of ICMP router advertisement
messages on one or all VLANs. The setting is either enabled or disabled; the default setting is enabled.
