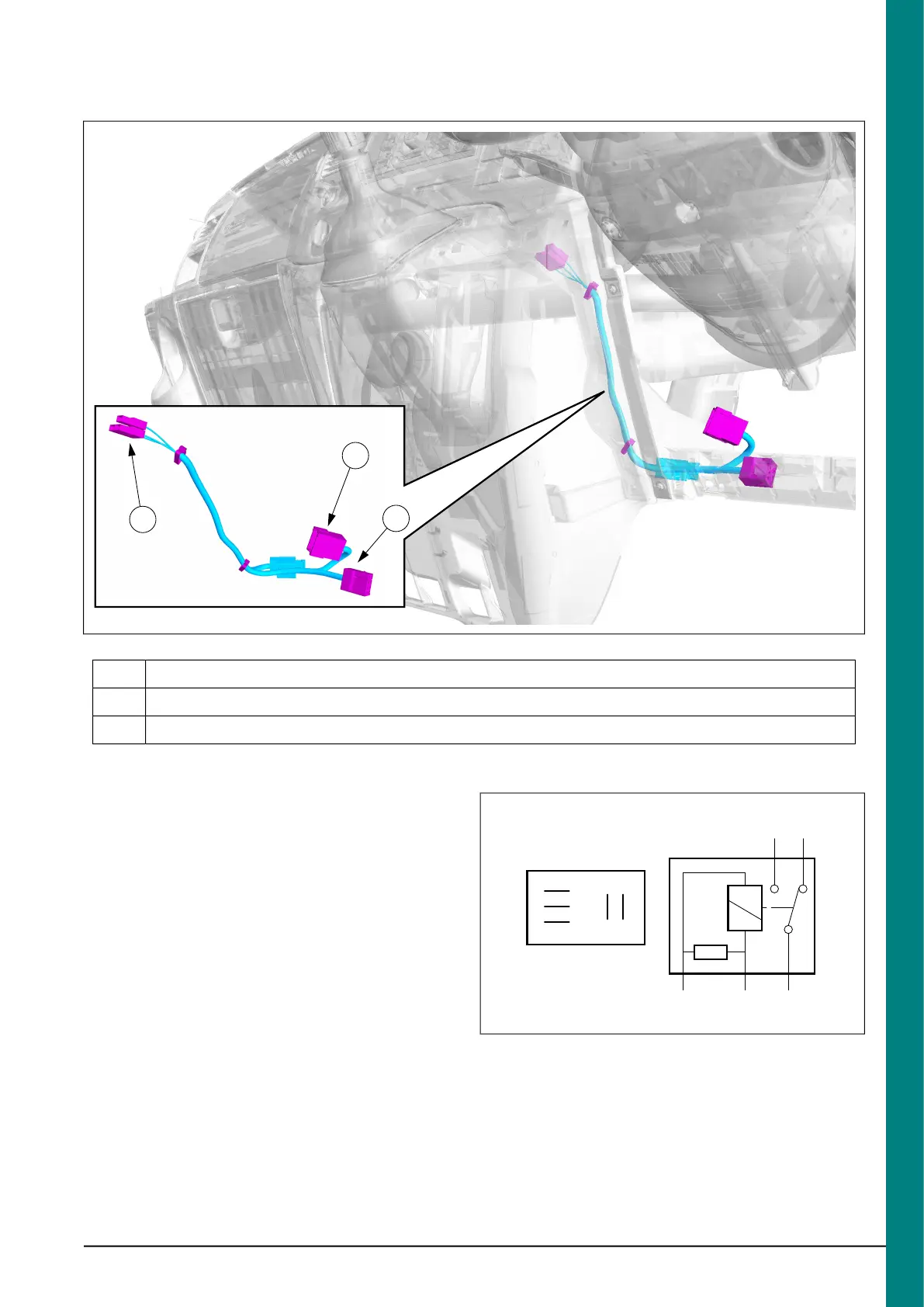

Heater Jumper for Ignition, Instrument Panel Illumination and Air Conditioning On
Signals - Later Installation
E88306
1
2
3
DescriptionItem
Ignition, Instrument Panel Illumination and Air Conditioning On Signals1
C4 - Connection to Heating, Ventilation and Air Conditioning Harness (18B518)2
C5 - Connection to Instrument Panel Harness (14K024)3
4.13.6 Relays and Switches
Relays
Single pole relays must be used under the
conditions:
•
Single pole, 2-way (change over) is used to
switch from one circuit to another please refer
to Relay Figures E75017-E75021 for typical
relay circuit diagrams.
•
Relays can be installed inside the vehicle or
inside the Special Vehicle Option Auxiliary Fuse
Box.
•
The Ford standard relays have a nominal
current of 300mA (max) at 25°C. Relays with
greater loads should not be used.
•
For maximum switching currents please refer
to Relay Figures E75017-E75021.
Micro Relay
E75017
1
4
2
5 3
1 2 3
5 4
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
127
