5.5 Seats
5.5.1 Rear Seat Fixings Positions
- Kombi
CAUTION: Do not install seats in the
rear cargo area of a Van.
the following figure shows the second and third
row seat fixing in the floor. These holes and
positions are independent of the wheelbase.
Refer to: 5.6 Glass, Frames and Mechanisms
(page 211).

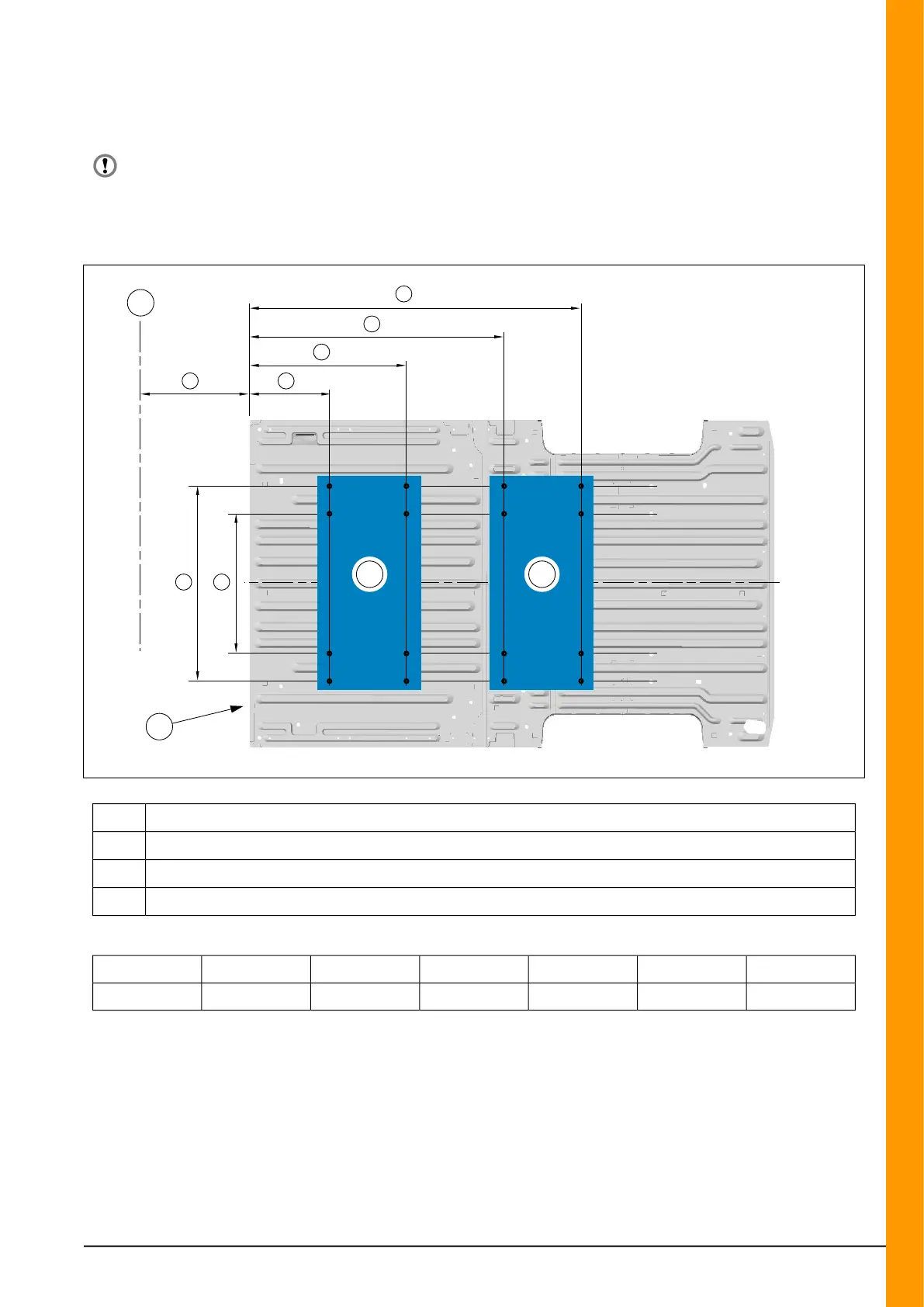

Rear Floor Seat Fixing Positions
DescriptionItem
Front Axle Center Line1
Floor Height Step on Front wheel Drive Vehicles2
Second Row Seat3
Third Row Seat4
Rear Floor Seat Fixing Position Dimensions (mm)
GFEDCBA
7521048434131284913721787
Cab Van Floor
NOTE: Cab Van Floor Models are currently only
available for use in Motor Caravan applications
Rear seats, if assembled at a Vehicle Converter
/ Modifier, need to be tested according to ECE
R14, 77/541/EEC and ECE R17 by them. It is
recommended to fix the seat frame at three
locations as shown in the following Figure
E74532 which shows the typical design principle
for Cab Van Floor seat frame fixings on top and
underneath the floor. Fixings should be carried
out as U-type bracket clinching the cross beam.
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
5 Body and Paint
209
