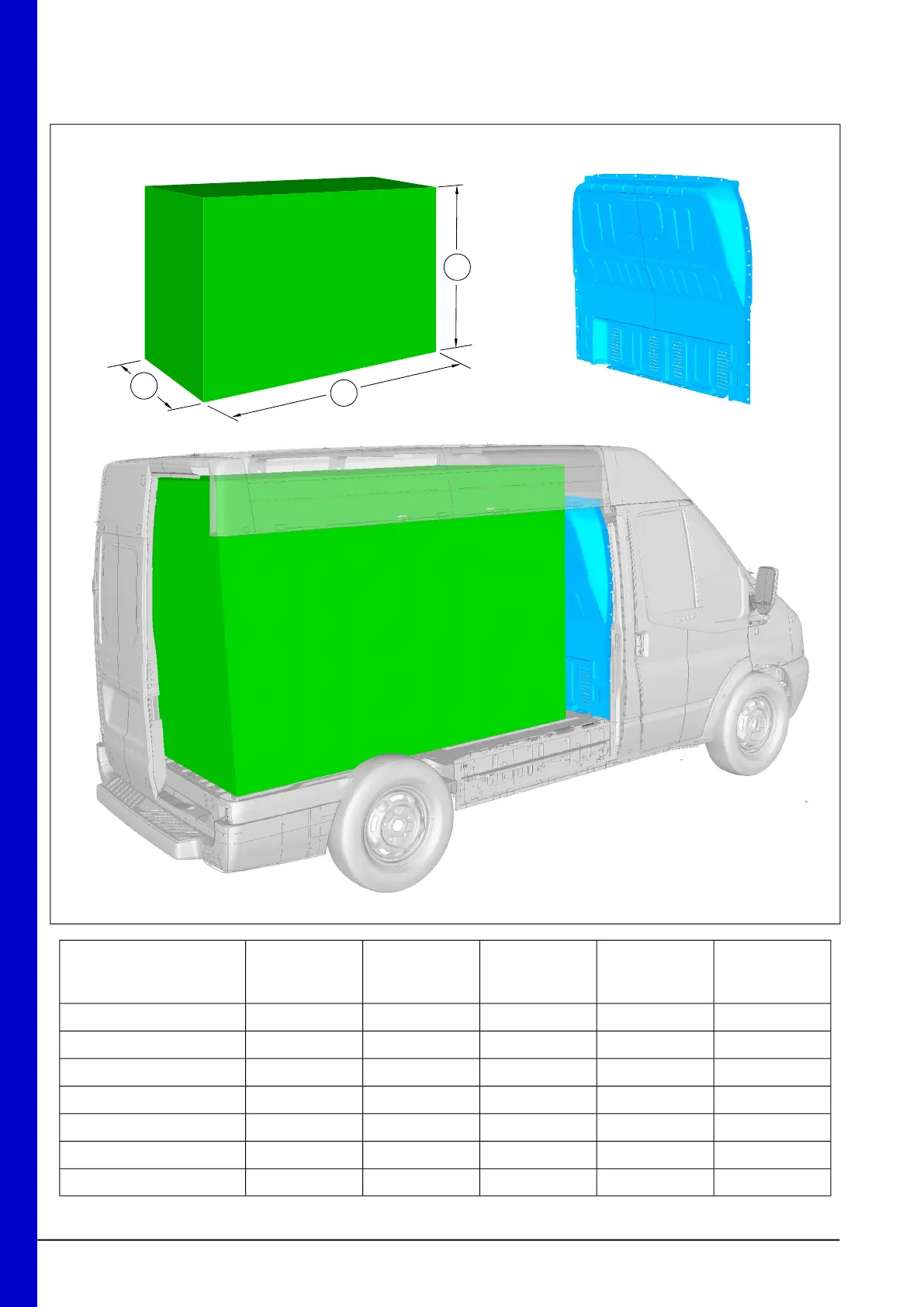

1.14.5 Recommended Main Load Area Dimensions for Bulkhead with
Full Depression
E74206
C
B
A
Height 'C'
(mm) High
Floor
Height 'C'
(mm) Low
Floor
Width 'B'
(mm)
Length 'A'
(mm)
RoofWheelbase
1230133013802280LowShort Wheelbase
1550165012502230MediumShort Wheelbase
1550165012402600MediumMedium Wheelbase
1750185012302560HighMedium Wheelbase
1550165012403050MediumLong Wheelbase
1750185012303010HighLong Wheelbase
1750185012303730HighExtended Frame
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
