Ford 2006 Transit Body and Equipment Mounting Section User Manual

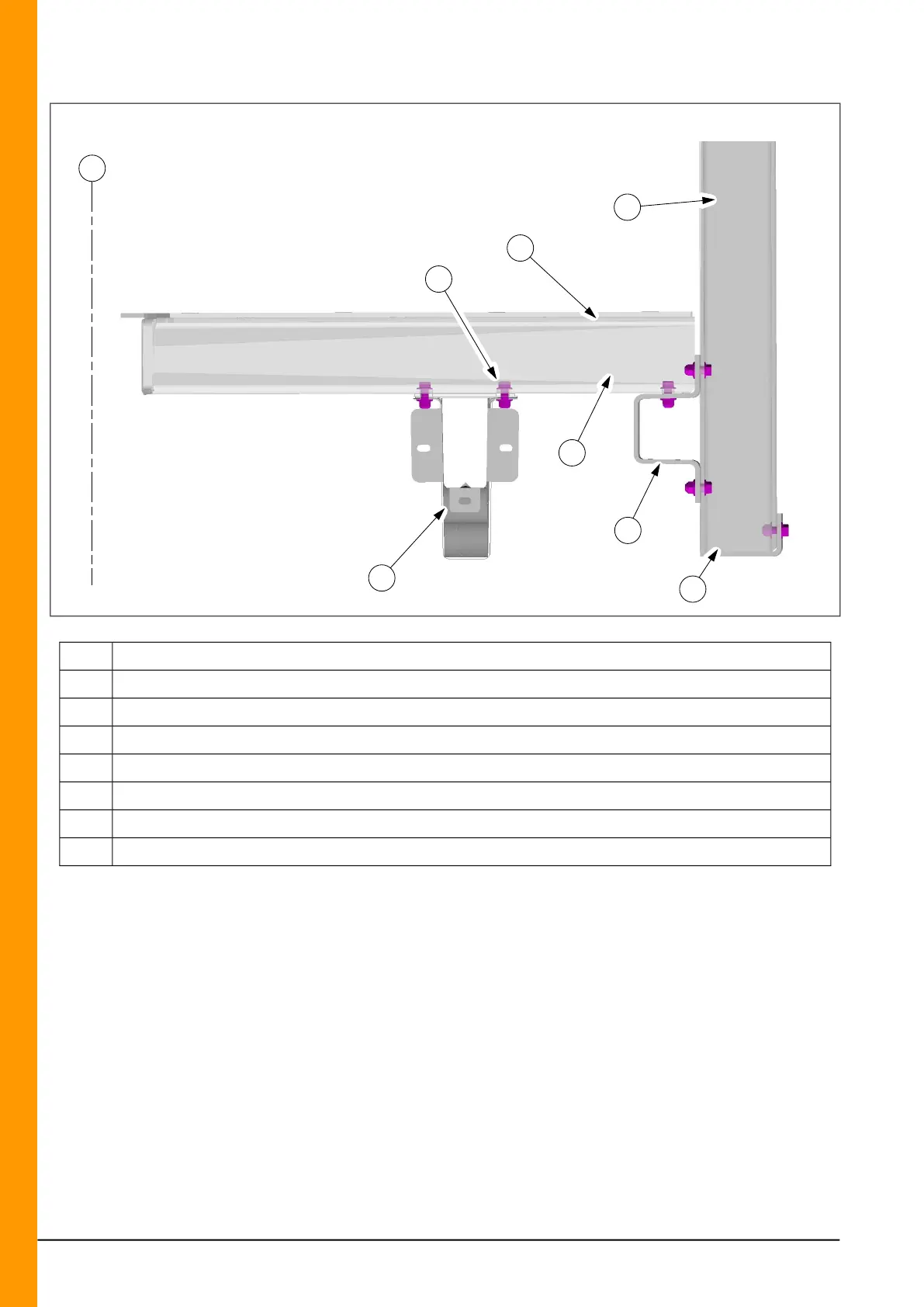

Typical Design Principle of a Self-Supporting Body Structure
E74576
1
2
3
4
5
6
7
8
DescriptionItem
Use all standard locations with 2x M10 fixings1
Floor Panel2
Body side frames3
Floor cross members4
Continuous floor U-profile frame5
Longitudinal L-profile6
Chassis frame rail of base vehicle7
Vehicle center line of base vehicle8
Also see.
Refer to: 5.1 Body (page 175).
5.11.2 Self-Supporting Body
Structure
Bodies and structures can be judged as
self-supporting providing they maintain the
following rules:
•
Cross members are used at each chassis
mounting point, please refer to Figures.
E74576, E74860, E74861, E74862 and E74803
•
Each cross member has a suitably engineered
connection to the body side wall (3) or to the
continuous floor frame (5), see Fig. E74576.
•
The body side wall or the continuous floor
frame supports any overhang beyond the
chassis frame, whether on standard frame or
extended frame.
Alternatively, the self-supporting body structure
can also be designed as shown in Fig. E74577.
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
5 Body and Paint
224
