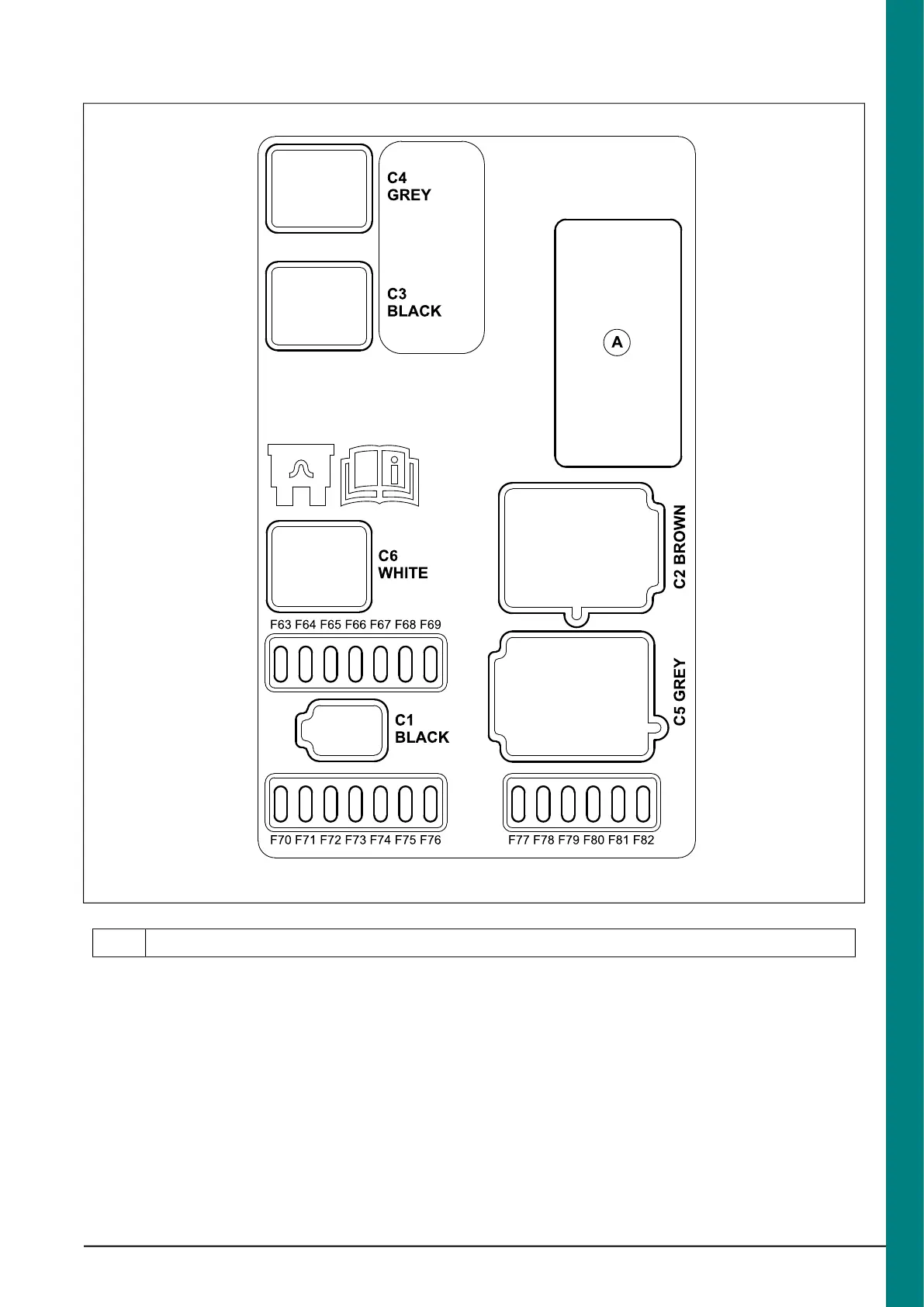

Central Junction Box - as viewed in-car position
DescriptionItem
Part labelA
4.1.3 Circuit Diagram
When designing electrical circuits, or making
alterations, the following must be considered:
•
Current rating of wiring, see following
specification chart (Current Rating of Wire
Sizes)
•
Any voltage drop in the circuit should not
lower the terminal voltage at consumption
point to below 95% of battery voltage.
•
Do not cut into the original loom.
•
Additional earth returns should be included to
support new equipment.
•
A supplementary circuit diagram and
accompanying instructions should be added
to the Owner’s Information or a separate
Manual supplied with the vehicle for each
unique component.
NOTE: For further information please contact
your local National Sales Company
representative, or Local Ford Dealer.
