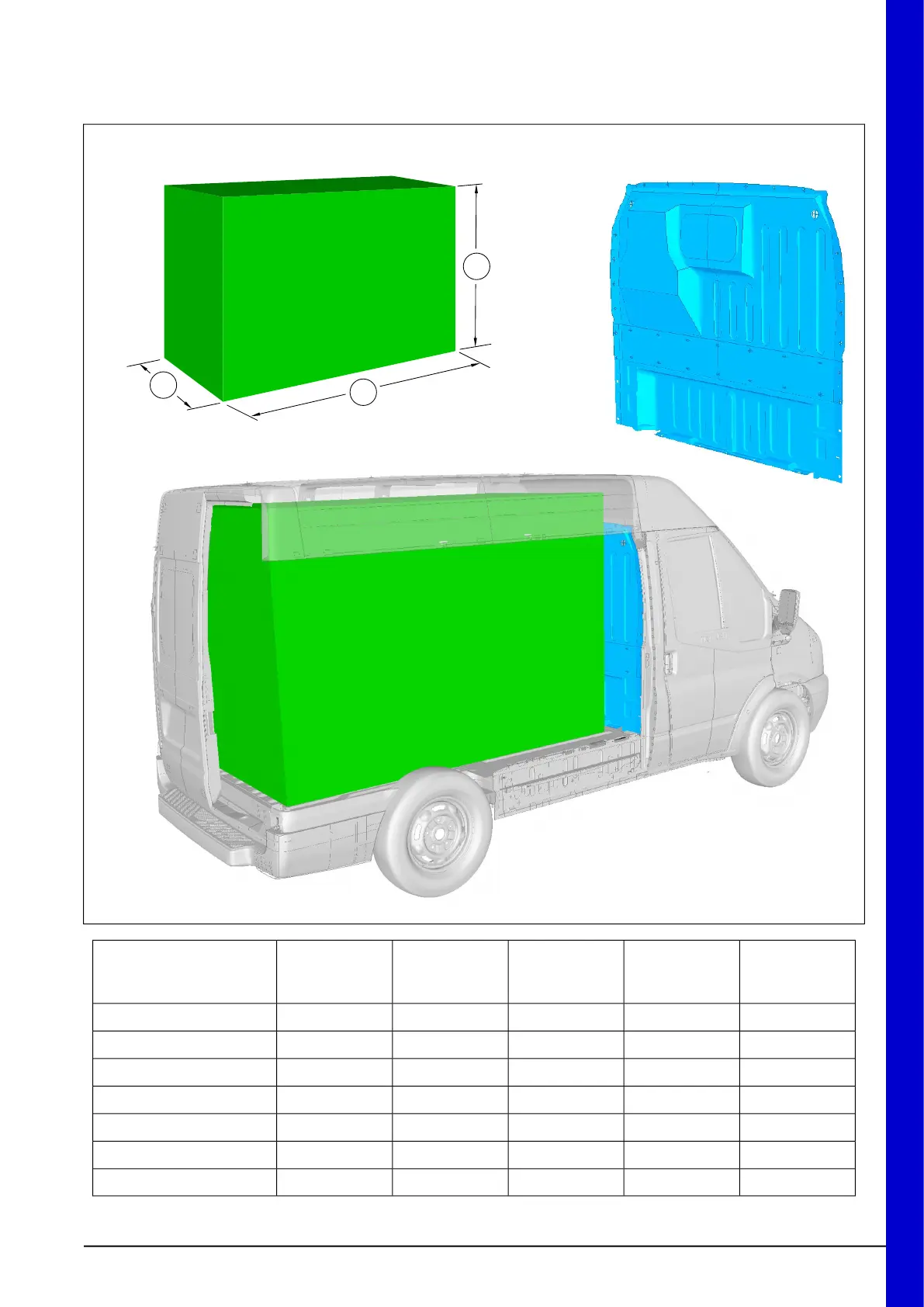

1.14.4 Recommended Main Load Area Dimensions for Bulkhead with
Depression Driver Side
E74204
C
B
A
Height 'C'
(mm) High
Floor
Height 'C'
(mm) Low
Floor
Width 'B'
(mm)
Length 'A'
(mm)
RoofWheelbase
1230133013802230LowShort Wheelbase
1550165012502280MediumShort Wheelbase
1550165012402650MediumMedium Wheelbase
1750185012302610HighMedium Wheelbase
1550165012403100MediumLong Wheelbase
1750185012303060HighLong Wheelbase
1750185012303780HighExtended Frame
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
