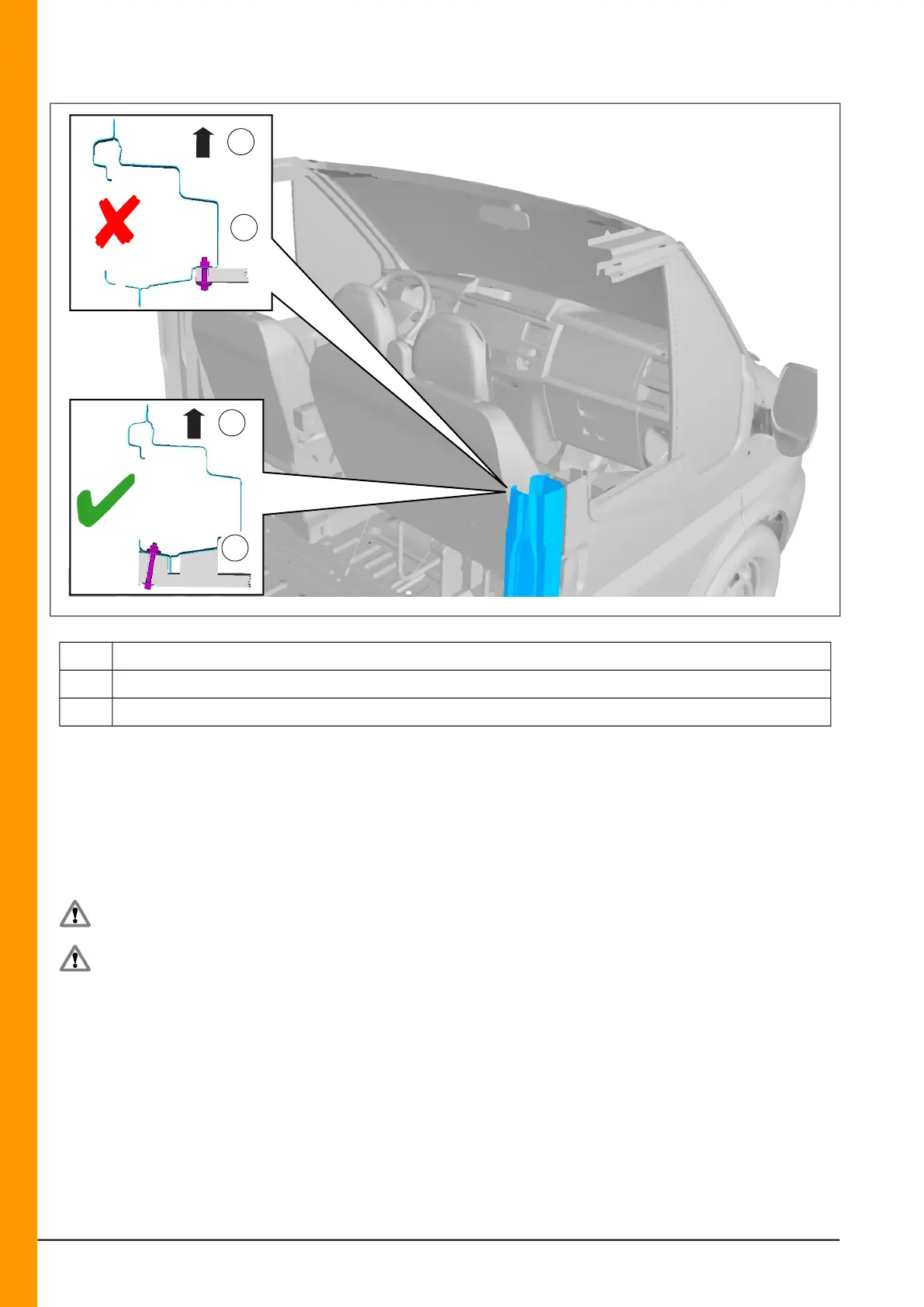

Design Principle of fixing the Box to the 'B'-Pillar
DescriptionItem
Forward Direction1
Not Recommended Fixing of Box to 'B'-pillar2
Recommended Design Principle of Fixing the Box to 'B'-Pillar3
5.1.6 Hydraulic Lifting Equipment
for Van, Bus, Kombi and Chassis
Cab
General
WARNINGS:
Do not to cut away any structural
member.
Equipped vehicles must be designed
to be stable under “worst case”
operating conditions with support
legs extended (if fitted).
The vehicle converter / modifier is responsible
for:
•
Fitting decals, advising on the safe use of the
equipment
•
Route electrical and hydraulics separately and
away from original Ford equipment
•
Route electrical and hydraulics separately and
away from original Ford equipment
•
Use suitable clip to fix on vehicle body and sub
frame
•
Offer master switch in the cab to isolate the
hole system
Chassis Cab.
Refer to: 5.11 Frame and Body Mounting (page
222).
(Frame Drilling and Tube reinforcing)
Cranes and Platforms
It is recommended to mount Cranes and aerial
platforms on a full length sub-frame by using all
load compartment tie downs for Van, Bus and
Kombi as shown in Figure E75874 and all
reinforced holes on longitudinal rail for Chassis
Cabs as shown in Figure E75880.
