4.14.6 Ground Points

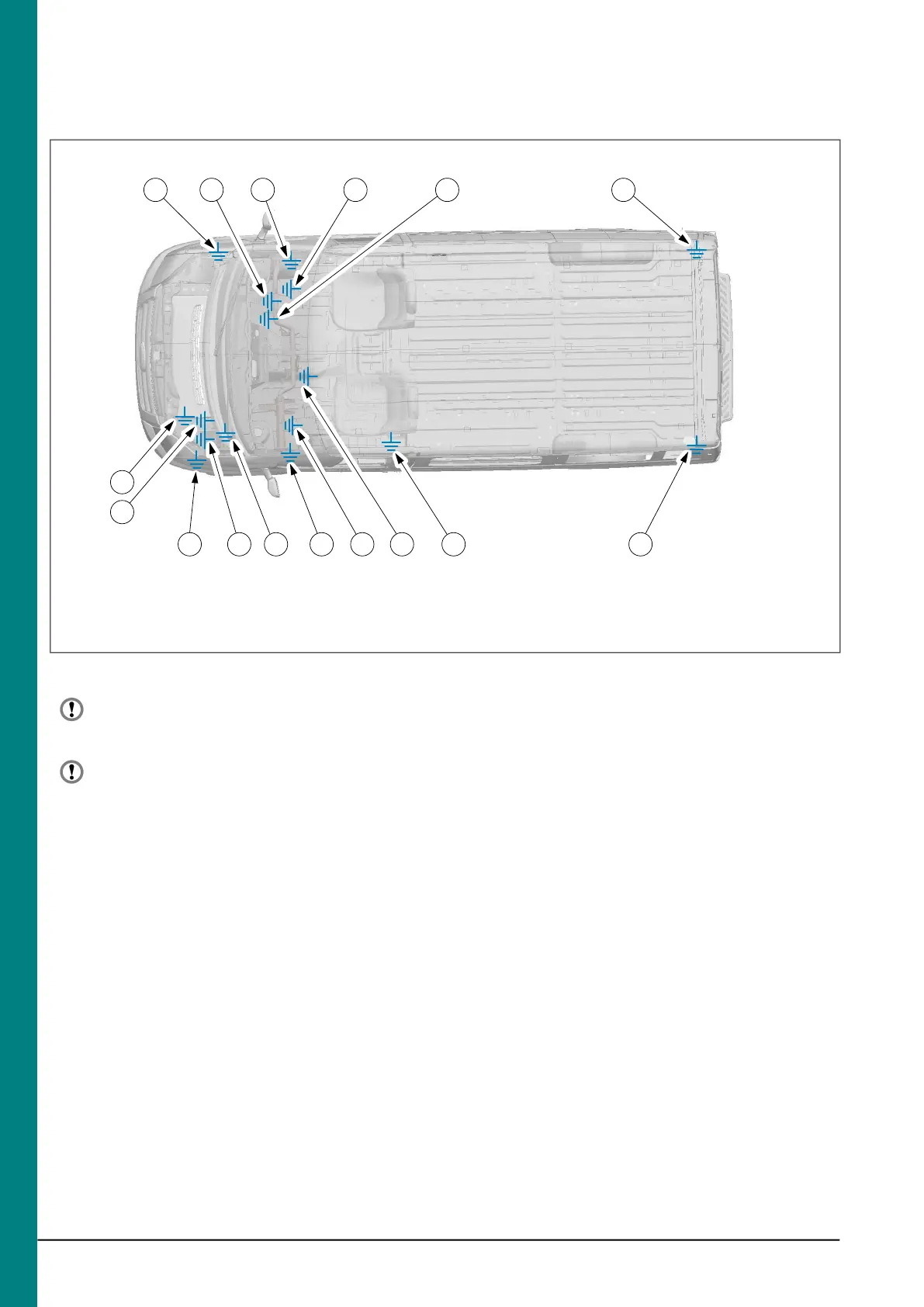

Van, Bus, Kombi Ground Points
E75015
31 13 38 15 12 51
8 49141633292021
19
22
CAUTIONS:
Only use the ground points indicated.
Using alternative points may affect
the vehicle integrity.
Make sure that all ground points are
tightened to the correct torque.
Ground wires should be brought back to the Ford
ground points provided, please refer to the
following figures. For very high current users, it is
recommended that the ground connection is
made directly to the ground point close to the
battery ground point.
Abbreviations used in tables
•
LHS - Left Hand Side
•
RHS - Right Hand Side
•
ABS - Anti-Lock Brake System, TCS - Traction
Control System, IVD- Interactive Vehicle
Dynamics System (ESP - Electronic Stability
Program)
•
Misc - Miscellaneous
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
140
