Fronius Primo GEN24 3.0 Plus User Manual

16

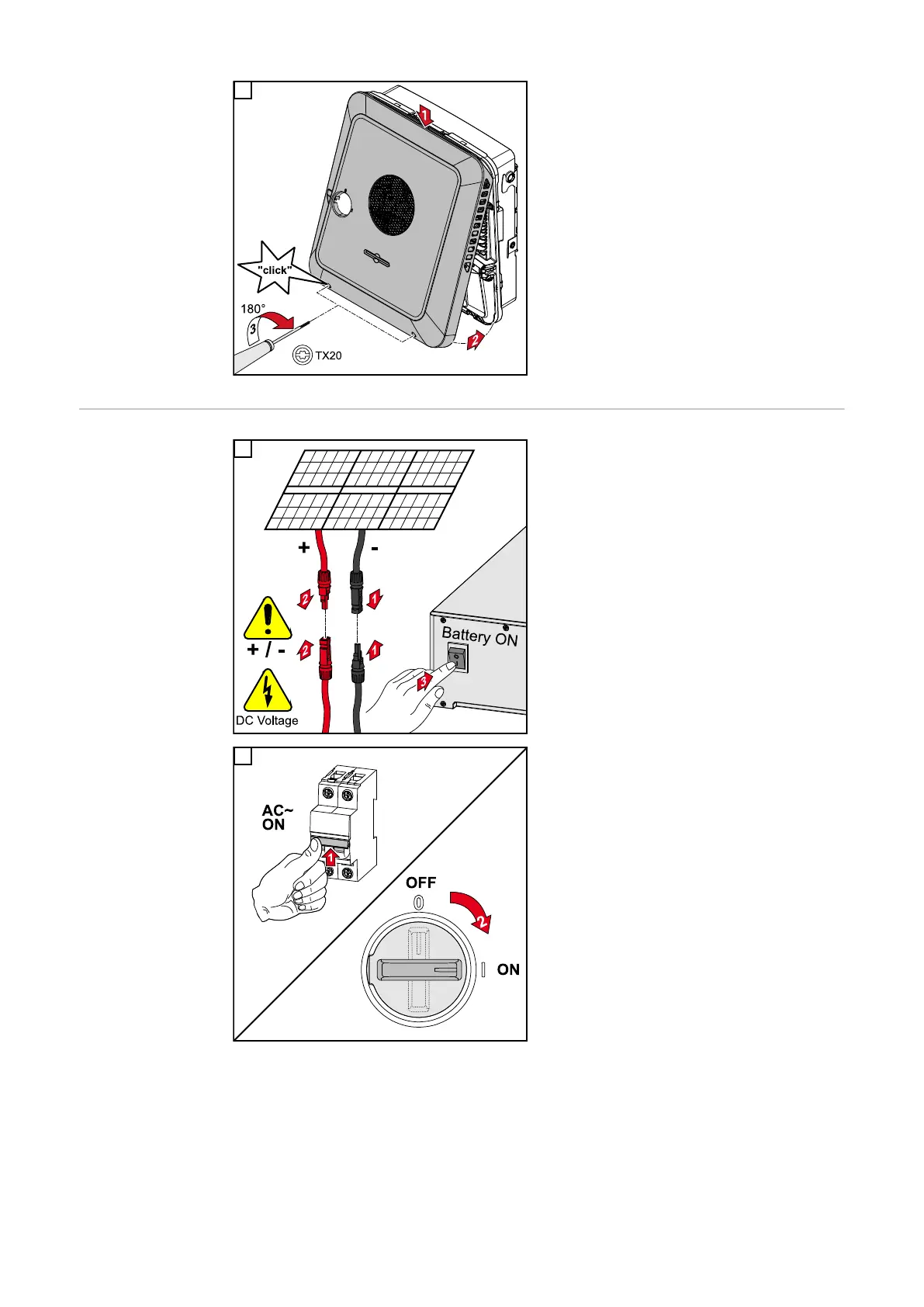

Clip the housing cover onto the inverter
from above.
Press on the lower part of the housing
cover and tighten the two screws by rotat-
ing them 180° to the right using a screw-
driver (TX20).
Commissioning
the inverter
1
Connect the solar module strings (+/-).
Switch on the battery connected to the
inverter.
2
Switch on the automatic circuit breaker.
Set the DC disconnector to the "On" switch
position.
128

Fronius Primo GEN24 3.0 Plus Specifications

General

Max. input current	12 A
Max. input voltage	1000 V
Protection class	IP66
Max. output current	13 A
THD	< 3%
Max. input current (DC)	12 A
Number of MPP trackers	2
Max. DC short-circuit current	18 A
AC Output Frequency	50/60 Hz
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC nominal voltage	230 V
Operating Temperature Range	-25 to +60 °C
Cooling	Active cooling
Maximum Input Power	4, 500 W
Warranty	5 years
