Fronius Primo GEN24 3.0 Plus User Manual

Indication of
energy saving
mode
During energy saving mode:
- Operating LED for the inverter lights up orange (see Button functions and LED
status indicator on page 87).
- The website of the inverter can be reached.
- All the available data is saved and transmitted to Solar.web.
- The real-time data can be seen on Solar.web.

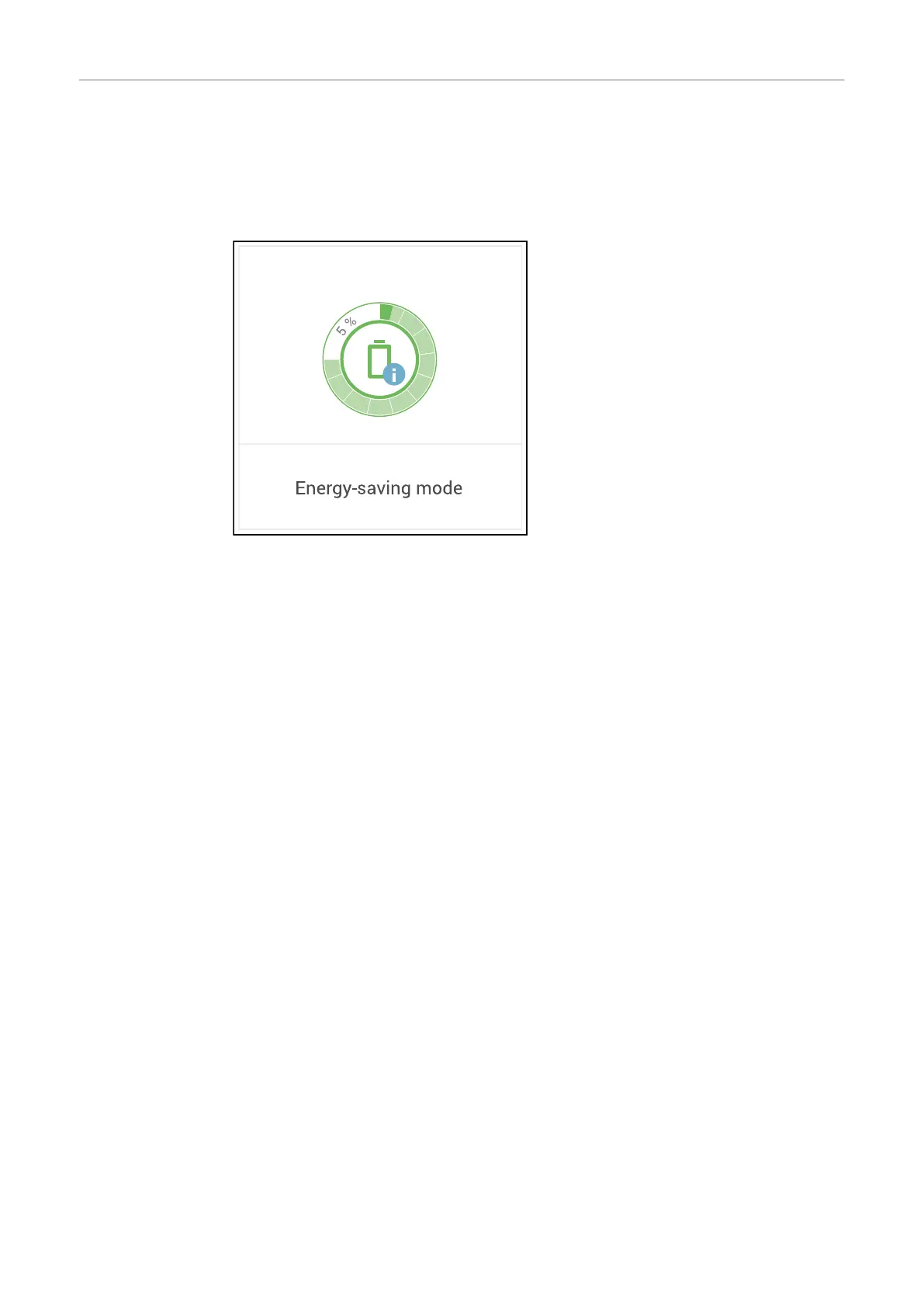

Energy saving mode is shown on the web-
site of the inverter and in Solar.web by an
"i" beside the battery symbol in the system
overview.
22

Fronius Primo GEN24 3.0 Plus Specifications

General

Max. input current	12 A
Max. input voltage	1000 V
Protection class	IP66
Max. output current	13 A
THD	< 3%
Max. input current (DC)	12 A
Number of MPP trackers	2
Max. DC short-circuit current	18 A
AC Output Frequency	50/60 Hz
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC nominal voltage	230 V
Operating Temperature Range	-25 to +60 °C
Cooling	Active cooling
Maximum Input Power	4, 500 W
Warranty	5 years
