Fronius Primo GEN24 3.0 Plus User Manual

Explanation of
symbols for the
installation posi-
tion

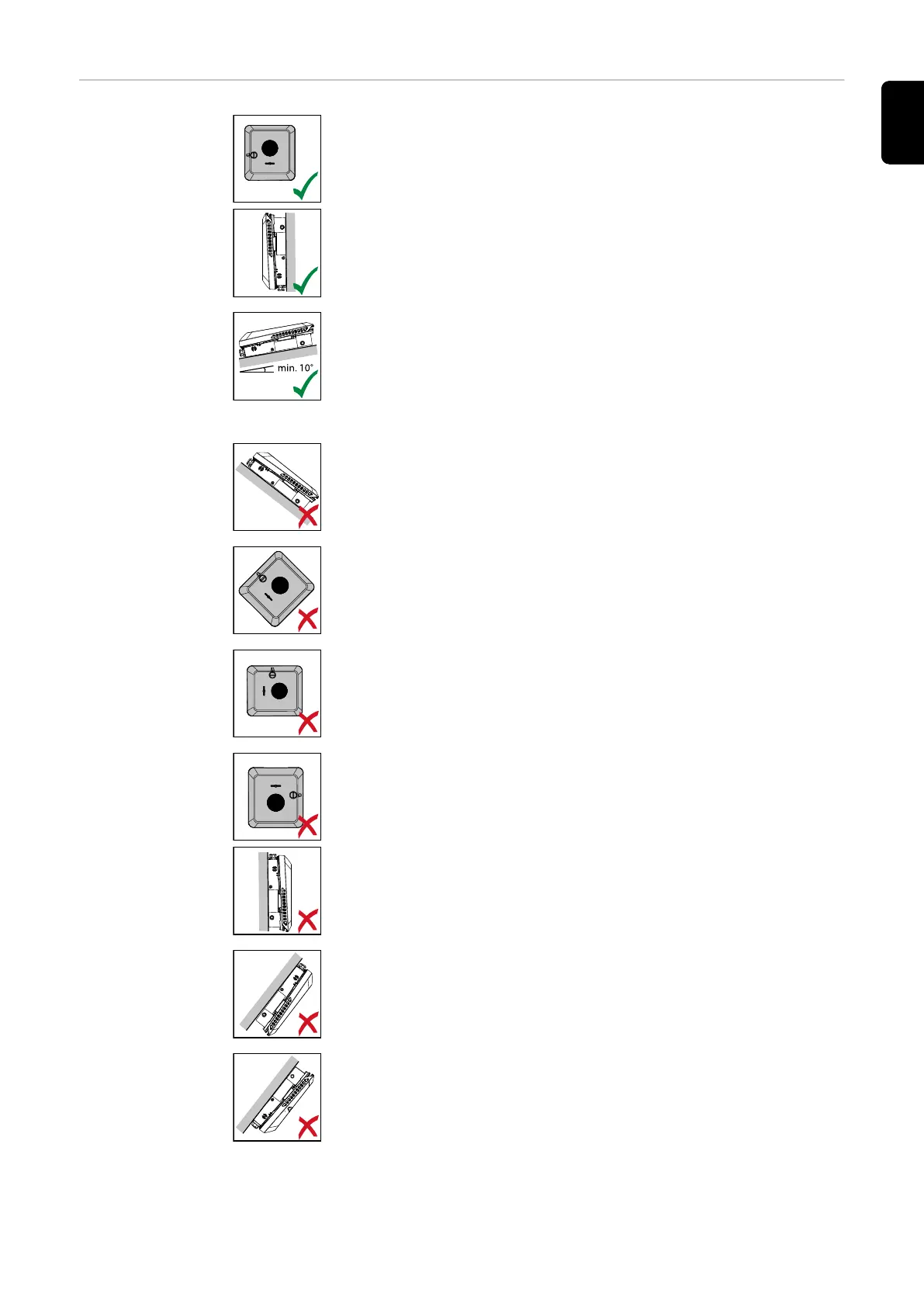

The inverter is suitable for vertical installation on a vertical wall or
column.
The inverter is suitable for installation on a sloping surface (min. slope
to underside 10°).
Do not install the inverter on a sloping surface with its connection
sockets at the top.
Do not install the inverter at an angle on a vertical wall or column.
Do not install the inverter horizontally on a vertical wall or pillar.
Do not install the inverter on a vertical wall or pillar with its connection
sockets facing upwards.
Do not install the inverter overhanging with the connection sockets at
the top.
Do not install the inverter overhanging with the connection sockets at
the bottom.
49
EN

Fronius Primo GEN24 3.0 Plus Specifications

General

Max. input current	12 A
Max. input voltage	1000 V
Protection class	IP66
Max. output current	13 A
THD	< 3%
Max. input current (DC)	12 A
Number of MPP trackers	2
Max. DC short-circuit current	18 A
AC Output Frequency	50/60 Hz
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC nominal voltage	230 V
Operating Temperature Range	-25 to +60 °C
Cooling	Active cooling
Maximum Input Power	4, 500 W
Warranty	5 years
