Fronius Primo GEN24 3.0 Plus User Manual

Routing data
communication
cables
IMPORTANT!
If data communication cables are wired into the inverter, observe the following points:
- Depending on the number and cross section of the wired data communication
cables, remove the corresponding blanking plugs from the sealing insert and insert
the data communication cables.
- Make sure that you insert the corresponding blanking plugs into any free openings
on the sealing insert.
IMPORTANT!
Should the blanking plugs be missing or improperly fitted, then protection class IP66 can-
not be guaranteed.

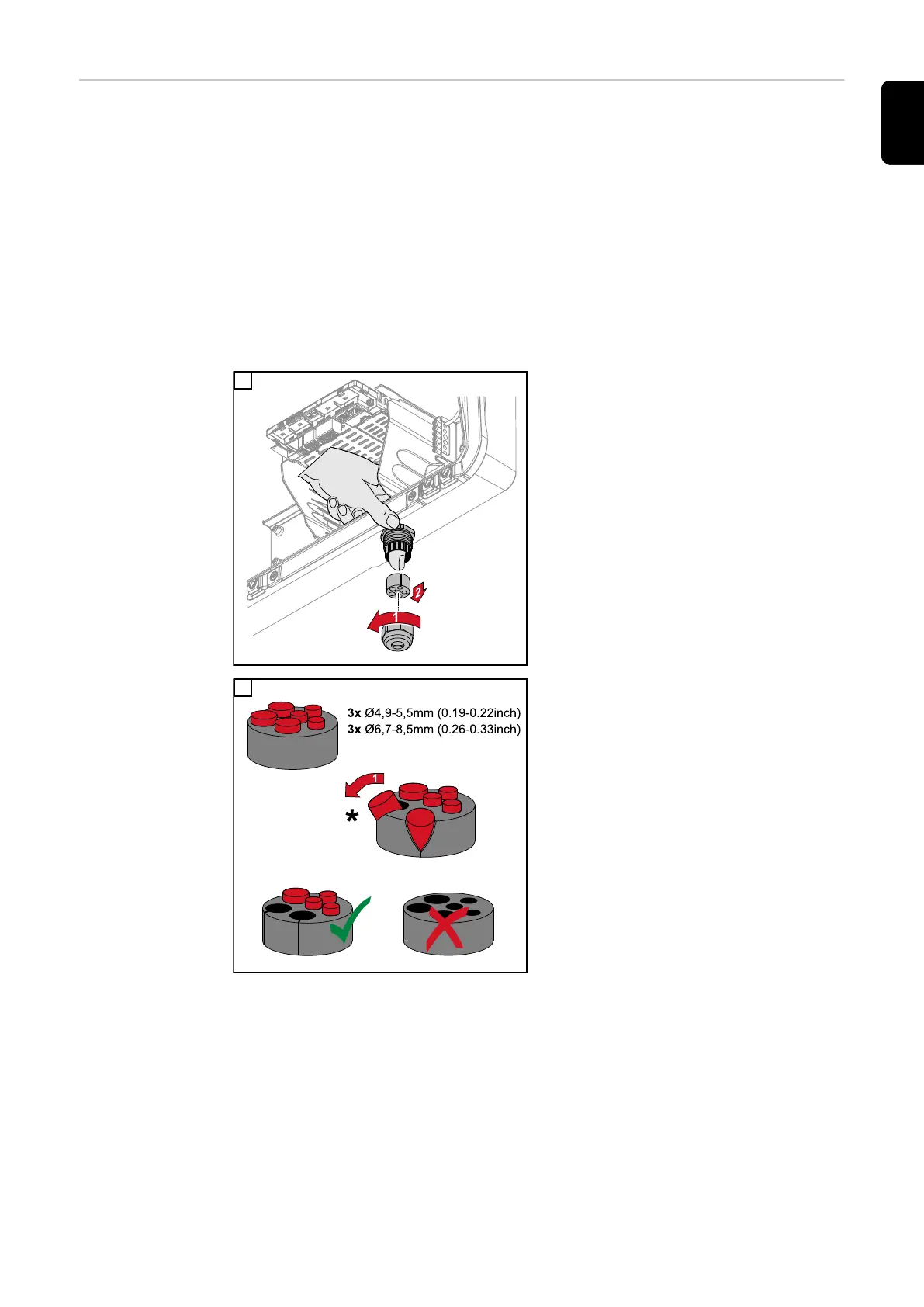

1
Undo the strain-relief device union nut and
push out the sealing ring and the blanking
plug from the inside of the device.
2
Open up the sealing ring at the location
where the blanking plug is to be removed.
* Liberate the blanking plug by moving it
sideways.
81
EN

Fronius Primo GEN24 3.0 Plus Specifications

General

Max. input current	12 A
Max. input voltage	1000 V
Protection class	IP66
Max. output current	13 A
THD	< 3%
Max. input current (DC)	12 A
Number of MPP trackers	2
Max. DC short-circuit current	18 A
AC Output Frequency	50/60 Hz
AC nominal output	3000 W
Max. apparent AC power	3000 VA
AC nominal voltage	230 V
Operating Temperature Range	-25 to +60 °C
Cooling	Active cooling
Maximum Input Power	4, 500 W
Warranty	5 years
