Fuji Xerox DocuCentre-V 6080 User Manual

15 Problem Solving
560
Problem Solving
15
Paper Jams in the Transfer Module
The following describes how to clear paper jams in the transfer module.
Paper Jams at the Handle [2b]................................................................................................................................................. 560
Paper Jams at the Handle [2d] and the Knob [2c].............................................................................................................. 561
Paper Jams at the Handle [2e]................................................................................................................................................. 562
Paper Jams at the Handle [2f] and the Knob [2g] .............................................................................................................. 563

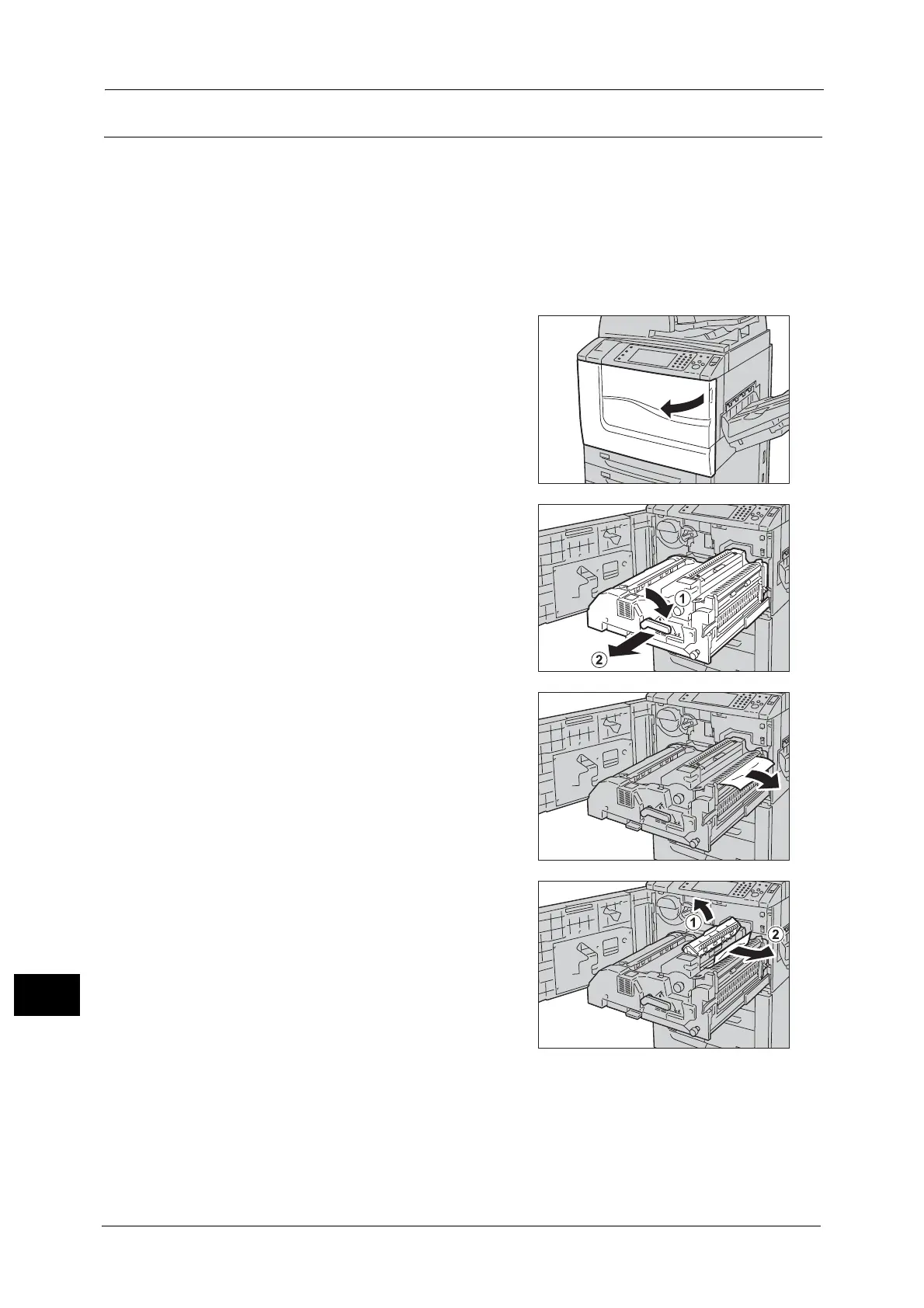

Paper Jams at the Handle [2b]
1 Make sure that the machine is not in operating,
and open the front cover.
Important • Before pulling out the transfer module, check
the touch screen to make sure that no paper
remains in the covers of the machine, Tray 5
(Bypass), the output tray, HCF (A4 1 Tray)
(optional), HCF (A4 2 Tray) (optional), and a
finisher (optional). Paper may be torn if
paper remains in these locations.
2 Turn the green Handle [2] at the center of the
transfer module to the right until it is in the
horizontal position and then pull the transfer
module out to the end.
3 Remove the visible jammed paper.
Note • If paper is torn, check for any torn pieces of
paper in the unit.
4 Move the Handle [2b] to the left and remove
the jammed paper.
5 Return the Handle [2b] to the original position.
