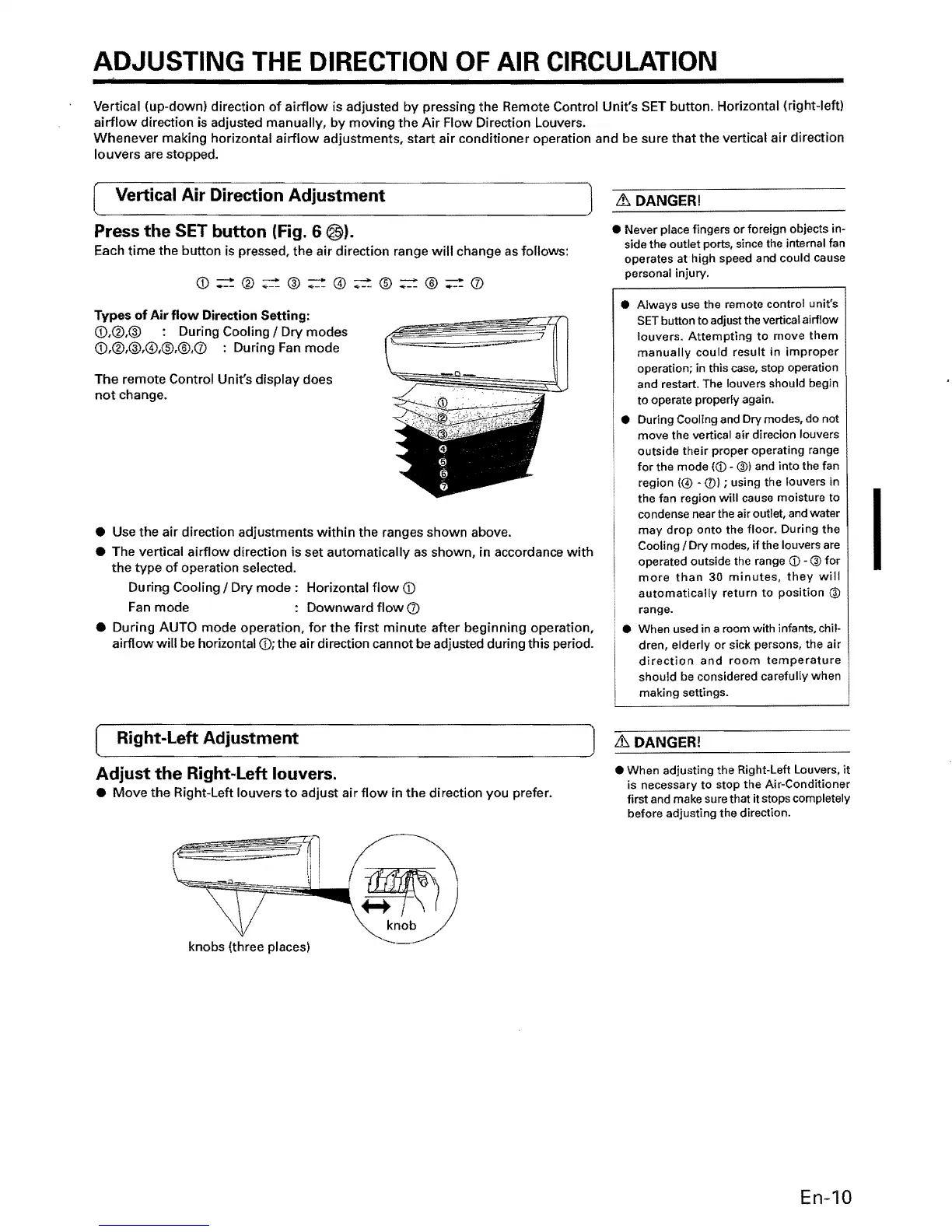

ADJUSTING
THE DIRECTION OF AIR CIRCULATION
Vertical (up-down) direction
of
airflow is adjusted
by
pressing the Remote Control Unit's
SET
button. Horizontal (right-left)
airflow direction is adjusted manually, by moving the
Air
Flow Direction Louvers.
Whenever making horizontal
airflow
adjustments, start air conditioner operation and be sure that the vertical air direction
louvers
are
stopped.
Vertical Air Direction Adjustment
DANGER!
Press the SET button (Fig. 6
®).
• Never place fingers
or
foreign objects in-
Each time the button
is
pressed, the air direction range
will
change
as
follows:
Types
of
Air
flow
Direction Setting:
(j),(V,@ : During Cooling I Dry modes
(j),(V,@,G),@),®,Q) : During
Fan
mode
The remote Control Unit's display does
not
change.
•
Use
the air direction adjustments
within
the ranges shown above.
• The vertical airflow direction is set automatically
as
shown, in accordance
with
the type
of
operation selected.
During Cooling / Dry
mode:
Horizontal
flow
(j)
Fan
mode
: Downward
flow
Q)
• During AUTO mode operation,
for
the
first
minute after beginning operation,
airflow will
be
horizontal
CD;
the air direction cannot
be
adjusted during this period.
side the outlet ports, since the internal fan
operates at high speed and could cause
personal injury.
• Always use the remote control unit's
SET
button
to
adjust the vertical airflow
louvers.
Attempting
to
move
them
manually
could
result
in
improper
operation; in this
case,
stop operation
and restart. The louvers should begin
to
operate properly again.
• During Cooling and Dry modes, do not
move the vertical
air
direcion louvers
outside
their
proper
operating range
for
the mode
(CD
-
®l
and
into
the fan
region
(® - (i)) ; using the louvers in
the fan region
will
cause moisture to
condense near the air outlet,
and
water
may
drop
onto
the
floor.
During the
Cooling
I Dry modes,
if
the louvers
are
operated outside the range
CD
®
for
I
more
than
30
minutes,
they
will
automatically
return
to
position
@
range.
• When used in a room with infants, chil-
dren,
elderly
or
sick persons, the
air
direction
and
room
temperature
should
be considered carefully when
making settings.
Right-Left Adjustment
DANGER!
• When adjusting the Right-Left Louvers.
it
Adjust
the
Right-Left louvers.
is necessary to stop the Air-Conditioner
• Move the Right-Left louvers
to
adjust air
flow
in the direction you prefer.
first and make sure that it stops completely
before adjusting the direction.
knobs (three places)
En-10
To Next Page
