Fujitsu ASU9CQ User Manual

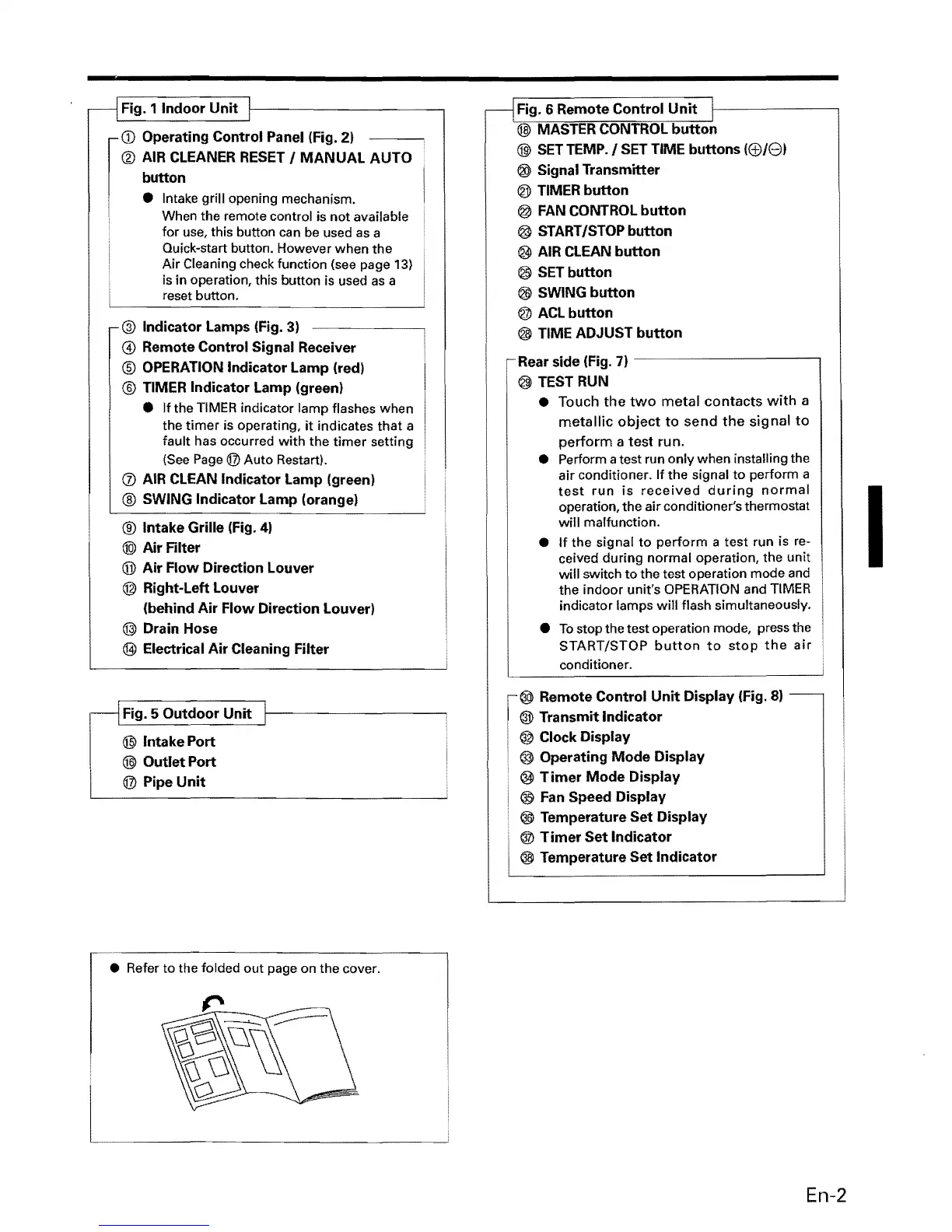

Fig. 1 Indoor Unit
CD Operating Control Panel (Fig. 2,
ev AIR CLEANER RESET I MANUAL AUTO
button
• Intake grill opening mechanism.
• When the remote control is
not available
for use, this button can be used as a
Quick-start button. However when the
'
Air Cleaning check function
(see page 13)
is in operation, this button is used as a
reset button.
@ Indicator Lamps (Fig. 3,
@ Remote Control Signal Receiver
® OPERATION Indicator Lamp (red)
® TIMER Indicator Lamp (green)
• If the TIMER indicator lamp flashes when
the
timer is operating, it indicates that a
fault has occurred
with the timer setting
(See Page ® Auto Restart).
(J) AIR CLEAN Indicator Lamp (green)
® SWING Indicator Lamp (orange)
® Intake Grille (Fig. 4)
®l Air Filter
® Air Flow Direction Louver
@) Right-Left Louver
(behind
Air Flow Direction Louver)
@ Drain Hose
@ Electrical Air Cleaning Filter
Fig. 5 Outdoor Unit
@ Intake Port
@ Outlet Port
® Pipe Unit
• Refer to the folded out page on the cover.
~ Fig. 6 Remote Control Unit 11---------,
@) MASTER CONTROL button
@> SET TEMP. I SET TIME buttons (±)/8)
<p Signal Transmitter
@ TIMER button
@ FAN CONTROL button
@ START ISTOP button
@ AIR CLEAN button
SET button
@ SWING button
@ ACLbutton
@ TIME ADJUST button
r- Rear side (Fig. 7) -----------,
@ TEST RUN
• Touch the two metal contacts with a
metallic object to send the signal to
perform a test run.
• Perform a test run only when installing the
air conditioner. If the signal
to perform a
test run is received during normal
operation, the air conditioner's thermostat
will malfunction.
•
If the signal to perform a test run is re-
ceived during normal operation, the unit
will switch
to the test operation mode and
the indoor unit's OPERATION and TIMER
indicator lamps
will flash simultaneously.
•
To stop the test operation mode, press the
START/STOP
button to stop the air
conditioner.
@ Remote Control Unit Display (Fig. 8) -
@
Transmit Indicator
r
@ Clock Display
I @ Operating Mode Display
. @ Timer Mode Display
@ Fan Speed Display
® Temperature Set Display
·
® Timer Set Indicator
® Temperature Set Indicator
I
I
En-2
