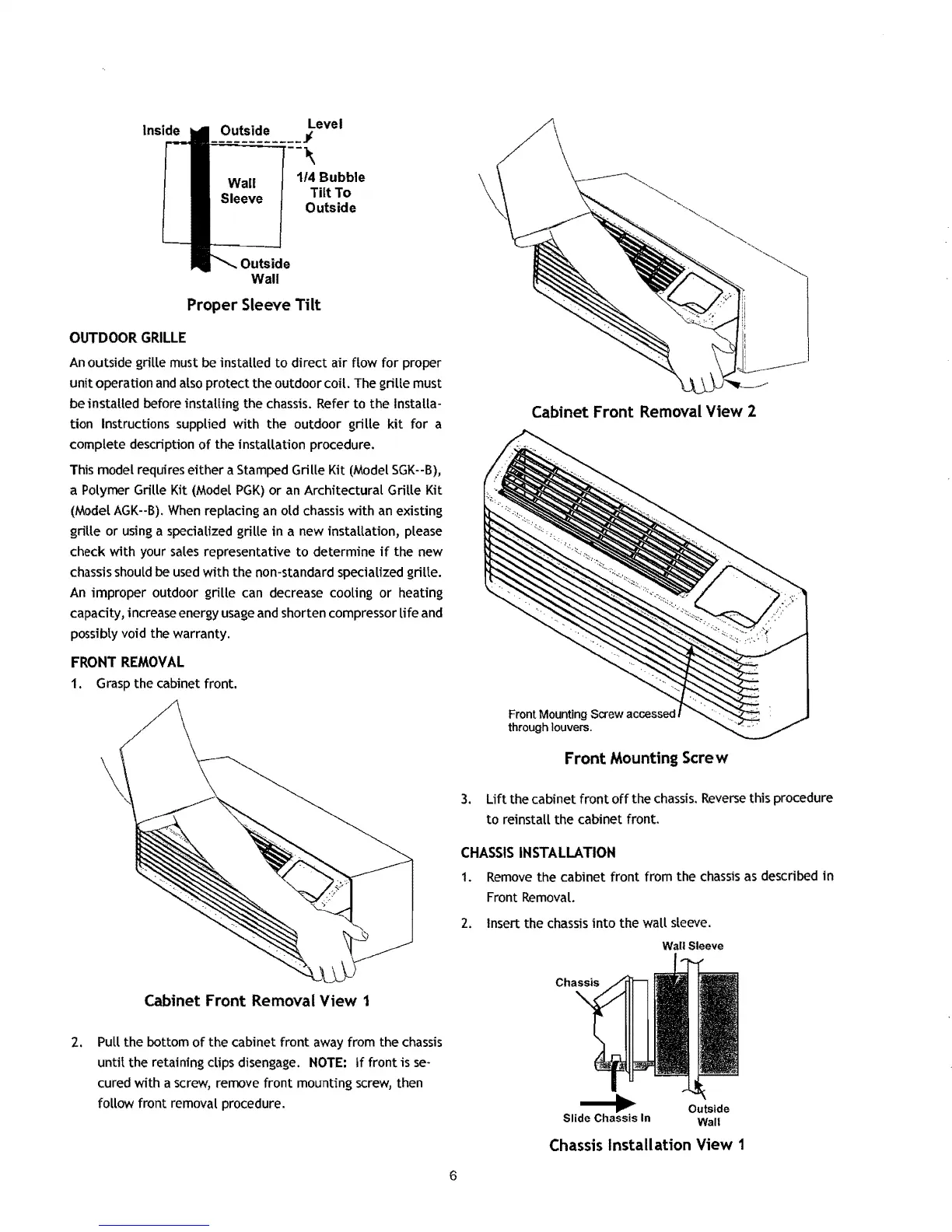

Fujitsu ASU9CQ User Manual

Outside Level
____ I
-,
1/4 Bubble
Tilt To
Outside
Outside
Wall
Proper Sleeve Tilt
OUTDOOR GRILLE
An outside grille must be installed to direct air flow for proper
unit operation and also protect the outdoor coil. The grille must
be installed before installing the chassis. Refer
to the Installa-
tion Instructions supplied
with the outdoor grille kit for a
complete description
of the installation procedure.
This model requires
either a Stamped Grille Kit (Model SGK--B),
a Polymer Grille Kit (Model PGK) or an Architectural Grille Kit
(Model AGK--B). When replacing an old chassis with an existing
grille or using a specialized grille
in a new installation, please
check
with your sales representative to determine if the new
chassis should be
used with the non-standard specialized grille.
An improper outdoor grille can decrease cooling or heating
capacity, increase energy
usage and shorten compressor life and
possibly void the warranty.
FRONT REMOVAL
1. Grasp the cabinet front.
Cabinet Front Removal View 1
2. Pull the bottom of the cabinet front away from the chassis
until the retaining clips disengage. NOTE: If front is se-
cured with a screw, remove front mounting screw, then
follow front removal procedure.
Cabinet Front Removal View 2
Front Mounting Screw accessed
through louvers.
Front Mounting Screw
3. Lift the cabinet front off the chassis. Reverse this procedure
to reinstall the cabinet front.
CHASSIS INSTALLATION
1. Remove the cabinet front from the chassis as described in
Front Removal.
2. Insert the chassis into the wall sleeve.
Wall Sleeve
Outside
Wall
Chassis Installation View 1
6
