Fujitsu ASU9CQ User Manual

920-007-14
Temp/H(lur
~. ._CooI
,f;fIG1,."!t¥NW - Moo,yS ... ,.
;;;t!y -~ ---G\----'
_ Fan(ln/y
-
ilin'ii;>~.l i;#e!f./ - Clock
.fy}&fr;/-.----{s}--
@r--- .:iIJi;" .:l/Ji;, - st.rt Time
~ _Slap Time
Temp/Hour
Wallma~r.
Wallma~r.

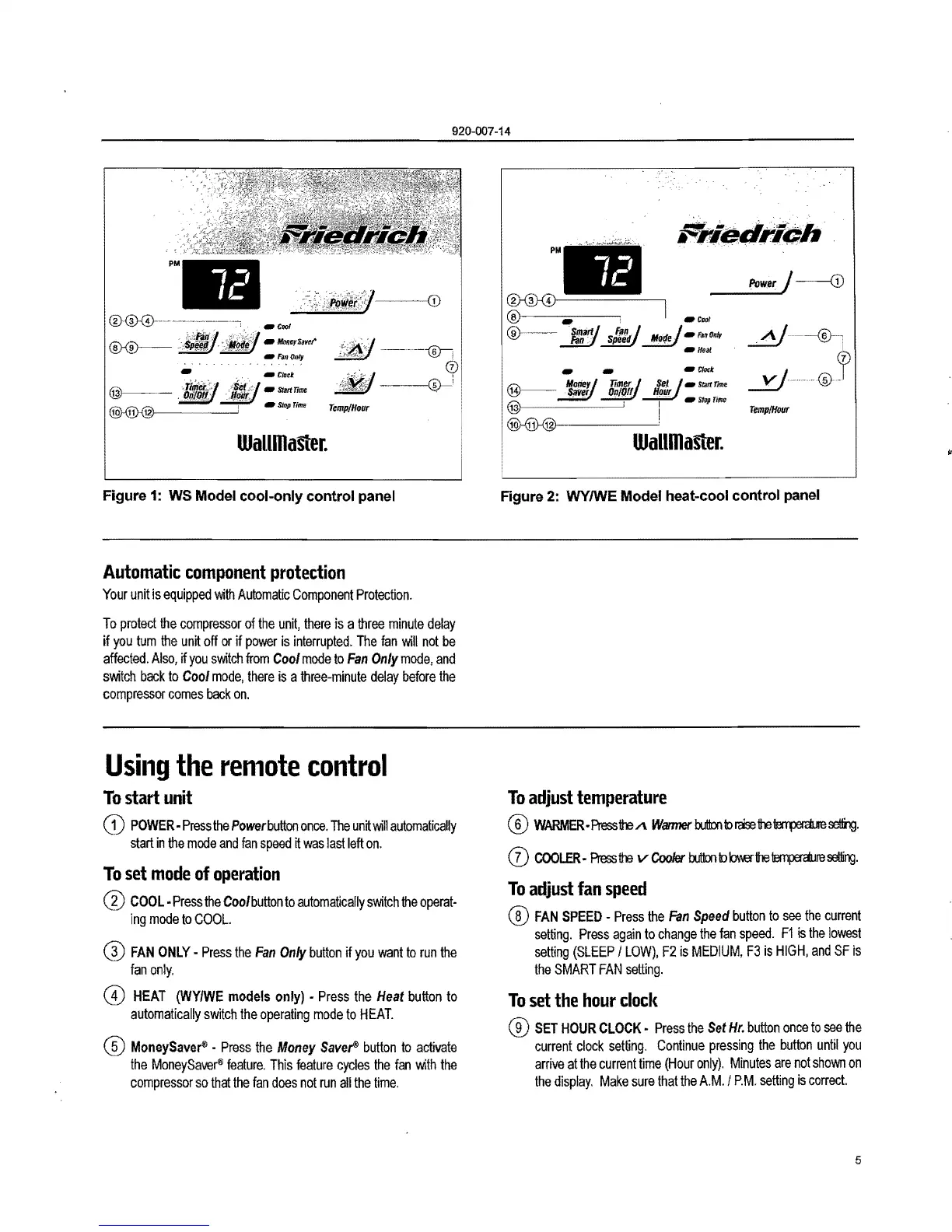

Figure 1: WS Model cool-only control panel Figure 2: WYIWE Model heat-cool control panel
Automatic component protection
Your unit is equipped with Automatic Component Protection.
To protect the compressor of the unit, there is a three minute delay
if you tum the unit off or if power is interrupted. The fan will not be
affected. Also, if you switch from Cool mode to Fan Only mode, and
switch back to Cool mode, there is a three-minute delay before the
compressor comes back on.
Usil1g the remote cOl1trol
To start unit
CD POWER· Press the Powerbutlon once. The unitwill automatically
start in the mode and fan speed it was last left on.
To set mode of operation
CD COOL· Press the Cool button to automatically switch the operat·
ing mode to COOL.
® FAN ONLY· Press the Fan Only button if you want to run the
fan only.
o HEAT (WYIWE models only) • Press the Heat button to
automatically switch !he operating mode to HEAT.
CD MoneySave~ • Press the Money Save~ button to activate
the MoneySaver® feature. This feature cycles the fan wi!h the
compressor so that the fan does not run all the time.
To adjust temperature
® WARMER·PresstheA Wannerl:x.rt1:cfllor.::is9the~seIli1g.
(j) COOLER· Press the v Cooler l:x.rt1:cfIloblr.erthe~re93l:ting.
To adjust fan speed
CD FAN SPEED - Press the Fan Speed button to see the current
setting. Press again to change the fan speed. F1 is the lowest
setting (SLEEP I LOW), F2 is MEDIUM, F3 is HIGH, and SF is
the SMART FAN setting.
To set the hour clock
® SET HOUR CLOCK· Press the Set Hr. button once!o see the
curren! clock setting. Continue pressing the button until you
arrive at the curren! time (Hour only). Minutes are not shown on
the display. Make sure that the A.M. I P.M. setting is correct.
5
