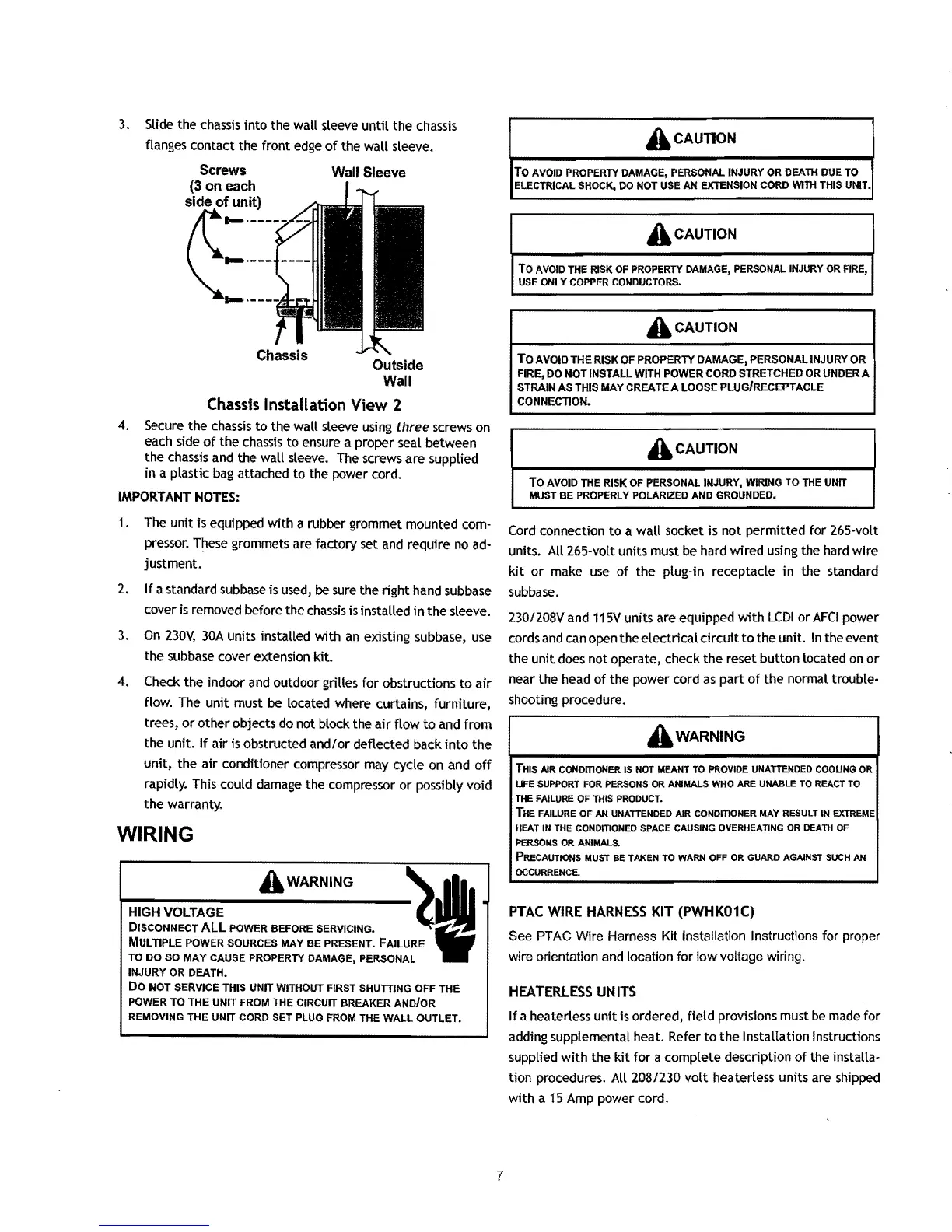

3. Slide the chassis
into
the
wall
sleeve
until
the chassis
flanges contact the front edge
of
the wall sleeve.
Screws
Wall Sleeve
(3 on each
~:~---~-
.....
Outside
Wall
Chassis Installation View 2
4. Secure the chassis
to
the
wall
sleeve using three screws on
each side
of
the
chassis
to
ensure a proper seal between
the
chassis and the wall sleeve. The screws are supplied
in
a plastic
bag
attached
to
the power cord.
IMPORTANT
NOTES:
1. The
unit
is equipped
with
a rubber grommet mounted com-
pressor. These grommets are factory set and require no ad-
justment.
2.
If
a standard subbase is used, be sure the
right
hand subbase
cover
is
removed before the
chassis
is installed
in
the sleeve.
3.
On
230V,
30A
units installed
with
an
existing subbase,
use
the
subbase cover extension
kit.
4. Check the indoor and outdoor grilles
for
obstructions
to
air
flow. The
unit
must be located where curtains,
furniture,
trees,
or
other
objects do not block the
air
flow
to
and from
the
unit.
If
air
is
obstructed
and/or
deflected back
into
the
unit,
the
air
conditioner compressor may cycle on and
off
rapidly. This could damage the compressor
or
possibly void
the
warranty.
WIRING
AWARNING
~I
HIGH VOLTAGE •
DISCONNECT
ALL
POWER
BEFORE
SERVICING.
fi
MULTIPLE
POWER
SOURCES
MAY
BE
PRESENT.
FAILURE
TO
DO
SO
MAY CAUSE
PROPERTY
DAMAGE,
PERSONAL
INJURY
OR
DEATH.
Do
NOT
SERVICE
THIS
UNIT
WITHOUT
FIRST
SHUTIING
OFF
THE
POWER
TO THE UNIT
FROM
THE
CIRCUIT
BREAKER AND/OR
REMOVING
THE
UNIT
CORD
SET
PLUG
FROM
THE
WALL OUTLET.
A CAUTION
TO
AVOID
PROPERTY
DAMAGE,
PERSONAL
INJURY
OR
DEAnI
DUE
TO
ELECTRICAL
SHOCK,
00
NOT
USE
AN
EXTENSION
CORD
WITH
THIS
UNIT.
A CAUTION
To
AVOID
THE
RISK
OF
PROPERTY
DAMAGE,
PERSONAL
INJURY
OR
FIRE,
USE
ONLY
COPPER
CONDUCTORS.
A CAUTION
To AVOID THE RISK
OF
PROPERTY DAMAGE, PERSONAL INJURY OR
FIRE,
DO
NOT
INSTALL
WITH
POWER CORD STRETCHED
OR
UNDER A
STRAIN AS THIS MAY CREATE A LOOSE PLUG/RECEPTACLE
CONNECTION.
A CAUTION
To
AVOID
THE
RISK
OF
PERSONAL
INJURY,
WIRING
TO
THE
UNIT
ST
BE
PROPERLY
POLARIZED
AND
GROUNDED.
Cord connection
to
a
wall
socket
is
not
permitted
for
265-volt
units.
All
265-vo[t units must be hard wired using the hard
wire
kit
or
make
use
of
the
plug-in receptacle
in
the standard
subbase.
230/208V and 115V units are equipped
with
LCDI
or
AFCI
power
cords
and
can open
the
electrical
circuit
to
the
unit.
In
the event
the
unit
does not operate, check
the
reset
button
located on
or
near the head
of
the
power cord
as
part
of
the
normal trouble·
shooting procedure.
r----------------------...,
A WARNING
THIS
AIR
CONomONER
IS
NOT
MEANT
TO
PROVIDE
UNATTENDED
COOUNG
OR
UFE
SUPPORT
FOR
PERSONS
OR
ANIMALS
WHO
ARE
UNABLE
TO
REACT
TO
THE
FAILURE
OF
THIS
PRODUCT.
THE
FAILURE
OF
AN
UNATTENDED
AIR
CONDITIONER
MAY
RESULT
IN
EXTREME
HEAT
IN
THE
CONDmONED
SPACE
CAUSING
OVERHEATING
OR
DEATH
OF
PERSONS
OR
ANIMALS.
PRECAUTIONS
MUST
BE
TAKEN
TO
WARN
OFF
OR
GUARD
AGAINST
SUCH
AN
OCCURRENCE.
PTAC
WIRE
HARNESS
KIT (PWHK01C)
See PTAC Wire Harness Kit Installation Instructions for proper
wire orientation and location for
low
voltage wiring.
HEA
TERLESS
UN
ITS
If
a heaterless
unit
is ordered,
field
provisions must
be
made
for
adding supplemental heat. Refer
to
the
Installation Instructions
supplied
with
the
kit
for
a
complete
description
of
the installa-
tion procedures. All
2081230
volt
heaterless units are shipped
with
a
15
Amp power cord.
7
