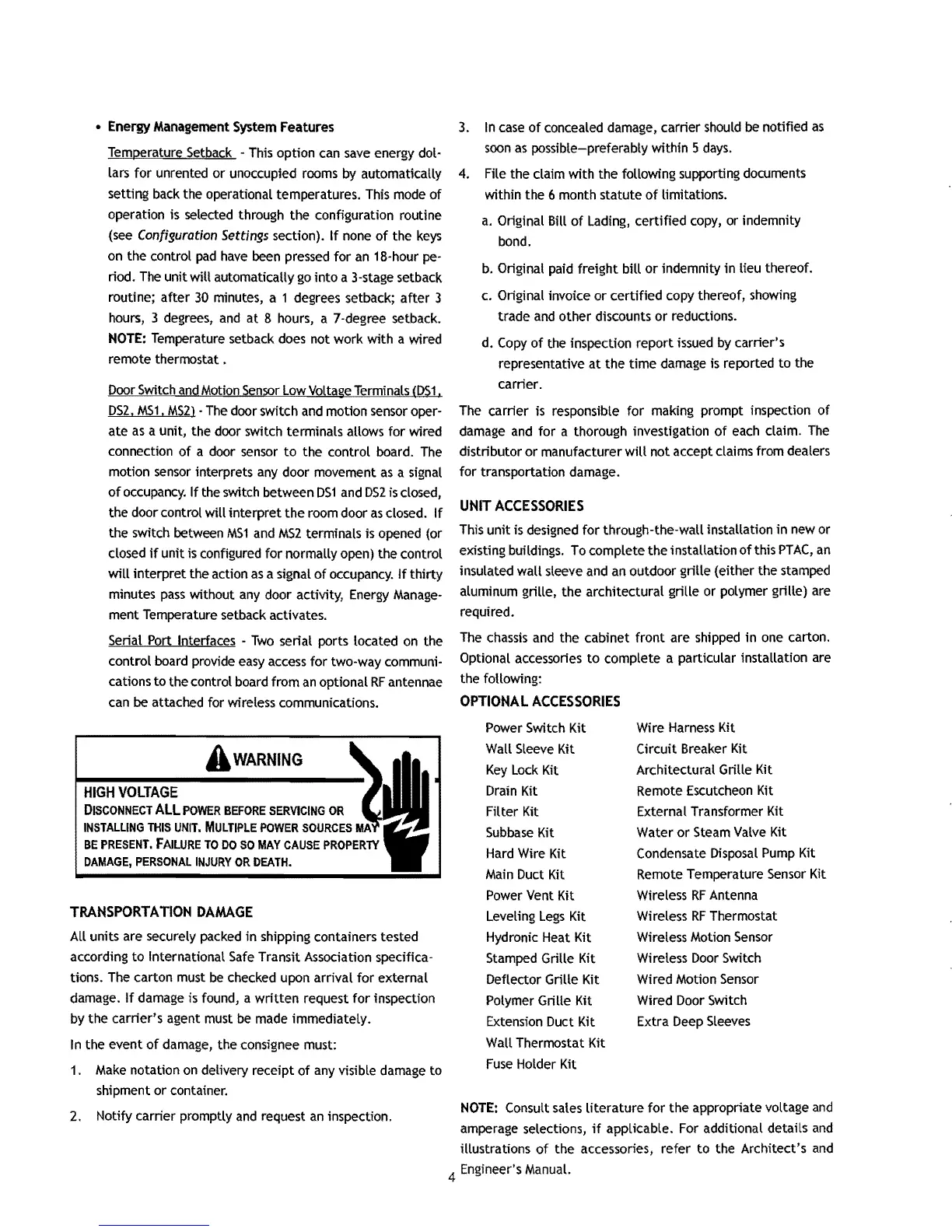

• Energy
Management
System
Features
Temperature Setback - This option can
save
energy dol-
lars
for
unrented
or
unoccupied rooms
by
automatically
setting back the operational temperatures. This mode
of
operation is selected through the configuration routine
(see
Configuration
Settings section).
If
none
of
the
keys
on the control
pad
have
been
pressed
for
an
18-hour pe-
riod.
The
unit
will
automatically
go
into
a 3-stage setback
routine; after
30
minutes, a 1 degrees setback;
after
3
hours, 3 degrees,
and
at
8 hours, a 7-degree setback.
NOTE:
Temperature setback does not work
with
a wired
remote thermostat •
Door Switch
and
Motion
Sensor
Low Voltage Terminals (051.
DS2,
MS1.
MS2)
- The door switch
and
motion
sensor
oper-
ate
as
a unit, the door switch terminals allows
for
wired
connection
of
a door
sensor
to
the control board.
The
motion
sensor
interprets any door movement
as
a signal
of
occupancy.
If
the switch between
DS1
and
DS2
is
closed,
the door control
will
interpret
the
room door
as
closed.
If
the switch between
MS1
and
MS2
terminals is opened (or
closed
if
unit
is configured
for
normally open) the control
will
interpret
the action
as
a signal
of
occupancy.
If
thirty
minutes
pass
without
any
door activity, Energy
Manage-
ment Temperature setback activates.
SeriaL
Port Interfaces -
Two
serial ports located
on
the
control board provide
easy
access
for
two-way communi-
cations
to
the control board from
an
optional
RF
antennae
can
be attached for wireless communications.
A
WARNING
HIGH
VOLTAGE
DISCONNECT
ALL
POWER
BEFORE
SERVICING
OR
INSTALLING
THIS
UNIT.
MULTIPLE
POWER
SOURCES
MA
BE
PRESENT.
FAILURE
TO
DO
SO
MAY
CAUSE
PROPERTY
DAMAGE,
PERSONAL
INJURY
OR
DEATH.
TRANSPORTATION
DAMAGE
All units are securely packed
in
shipping containers tested
according
to
International
Safe
Transit Association specifica-
tions. The carton must
be
checked upon arrival
for
external
damage.
If
damage is found, a
written
request
for
inspection
by
the
carrier's agent must
be
made immediately.
In
the event
of
damage, the consignee must:
1.
Make
notation on delivery receipt
of
any
visible damage to
shipment or container.
2.
Notify carrier promptly
and
request
an
inspection.
3.
In
case
of
concealed damage, carrier should
be
notified
as
soon
as
poSSible-preferably within 5
days.
4.
File the claim with the following supporting documents
within the 6 month statute
of
limitations.
a.
Original Bill
of
Lading, certified copy, or indemnity
bond.
b.
Original paid freight
bill
or
indemnity
in
lieu thereof.
c. Original invoice or
certified
copy thereof, showing
trade
and
other
discounts
or
reductions.
d.
Copy
of
the inspection report issued by carrier's
representative
at
the
time
damage
is
reported
to
the
carrier.
The carrier is responsible
for
making prompt inspection
of
damage
and
for
a thorough investigation
of
each
claim.
The
distributor or manufacturer
will
not
accept claims from dealers
for
transportation damage.
UNIT
ACCESSORIES
This
unit
is designed
for
through-the-wall installation
in
new or
existing buildings. To complete
the
installation
ofthis
PTAC,
an
insulated wall sleeve and an outdoor grille (either the stamped
aluminum grille, the architectural grille or polymer grille) are
required.
The
chassis
and
the cabinet
front
are shipped
in
one carton.
Optional accessories
to
complete a particular installation are
the following:
OPTIONAL
ACCESSORIES
Power Switch
Kit
Wire
Harness
Kit
Wall Sleeve
Kit
Circuit Breaker Kit
Key
Lock Kit
Architectural Grille Kit
Drain Kit
Remote Escutcheon Kit
Filter Kit
External Transformer Kit
Subbase
Kit
Water
or
Steam Valve Kit
Hard Wire Kit
Condensate
Disposal
Pump
Kit
Main Duct Kit
Remote Temperature
Sensor
Kit
Power Vent Kit
Wireless
RF
Antenna
Leveling
Legs
Kit Wireless
RF
Thermostat
Hydronic Heat Kit Wireless Motion
Sensor
Stamped Grille Kit Wireless Door Switch
Deflector Grille Kit
Wired Motion
Sensor
Polymer Grille Kit Wired Door Switch
Extension Duct
Kit
Extra Deep
Sleeves
Wall Thermostat Kit
Fuse
Holder Kit
NOTE:
Consult sales
literature
for
the
appropriate voltage
and
amperage selections,
if
applicable. For additional details
and
illustrations
of
the
accessories, refer
to
the Architect's
and
4 Engineer's ManuaL
