920-007-14
To set the timer
NOTE: You can set the START and STOP times a minimum of one
hour apart, and a maximum of 23 hours apart.
@) TIMER START - Press Start to view the current start time for cool-
ing. Continue pressing the START button until you arrive at the start
time you desire. The start time for cooling will then be set.
® TIMER STOP - Press the Stop button. Continue pressing the
STOP button until you arrive at the stop time you desire. The
stop time for cooling will then be set.
@ TIMER ON I OFF - Press the OnlOff button (under Timer
Operation) to activate (light on) or deactivate (light off) the timer.
Once the on and off times have been selected, they will remain
in memory and cycle daily until changed.
NOTE: If the unit is unplugged or the power is interrupted, the Set Hr.
function must be reset or the Timer OnlOfffunction will not work.

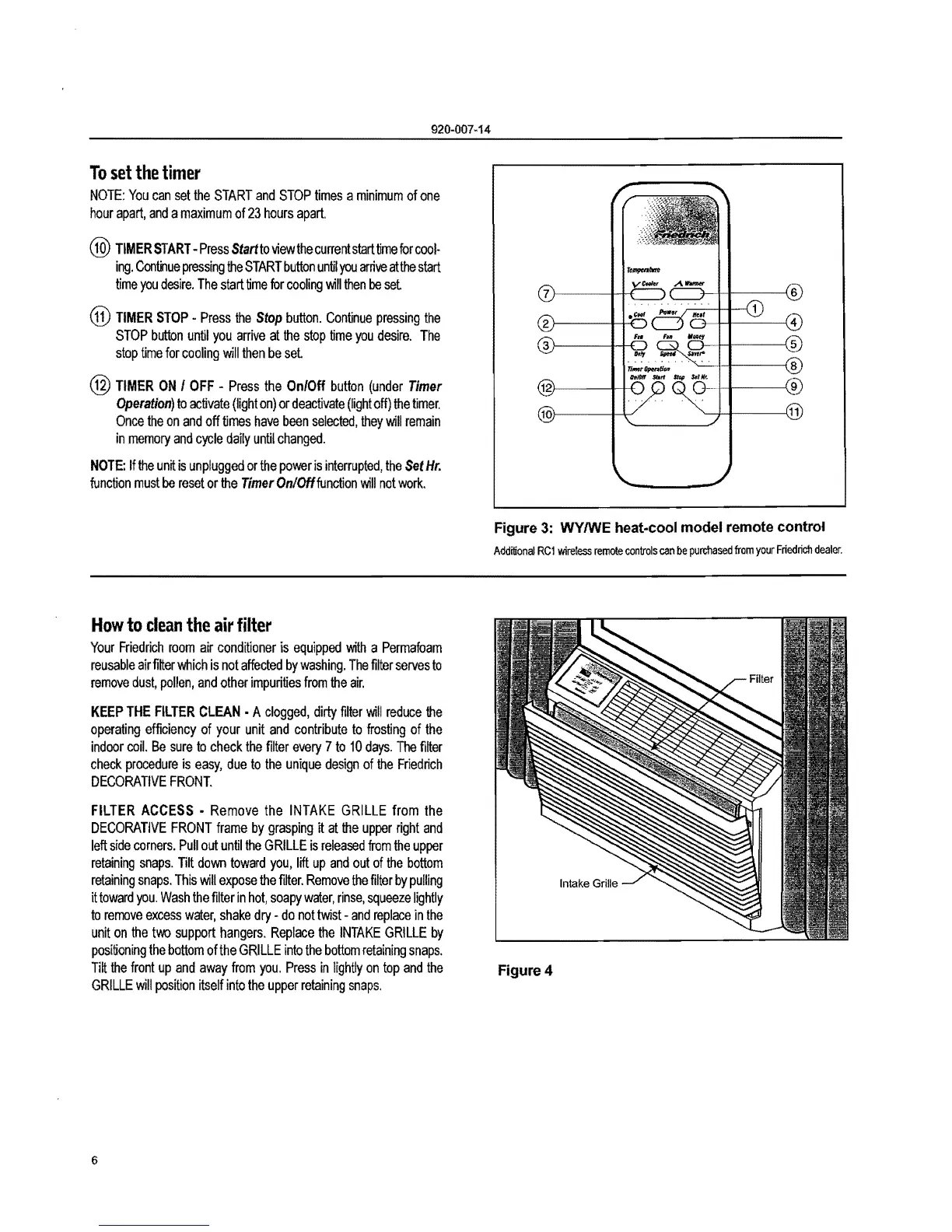

Figure 3: WYIWE heat-cool model remote control
Additional RCl wireless remote controls can be purchased from your Friedrich dealer.
How to clean the air filter
Your Friedrich room air conditioner is equipped with a Permafoam
reusable air filter which is not affected by washing. The filter serves to
remove dust, pollen, and other impurities from the air.
KEEP THE FILTER CLEAN· A clogged, dirty filter will reduce the
operating efficiency of your unit and contribute to frosting of the
indoor coil. Be sure to check the filter every 7 to 10 days. The filter
check procedure is easy, due to the unique design of the Friedrich
DECORATIVE FRONT.
FILTER ACCESS· Remove the INTAKE GRILLE from the
DECORATIVE FRONT frame by grasping it at the upper right and
left side corners. Pull out until the GRILLE is released from the upper
retaining snaps. Tilt down toward you, lift up and out of the bottom
retaining snaps. This will expose the filter. Remove the filter by pulling
it toward you. Wash the filter in hot, soapy water, rinse, squeeze lightly
to remove excess water, shake dry - do not twist - and replace in the
unit on the two support hangers. Replace the INTAKE GRILLE by
positioning the bottom of the GRILLE into the bottom retaining snaps.
Tilt the front up and away from you. Press in lightly on top and the
GRILLE will position itself into the upper retaining snaps.
Figure 4
6
